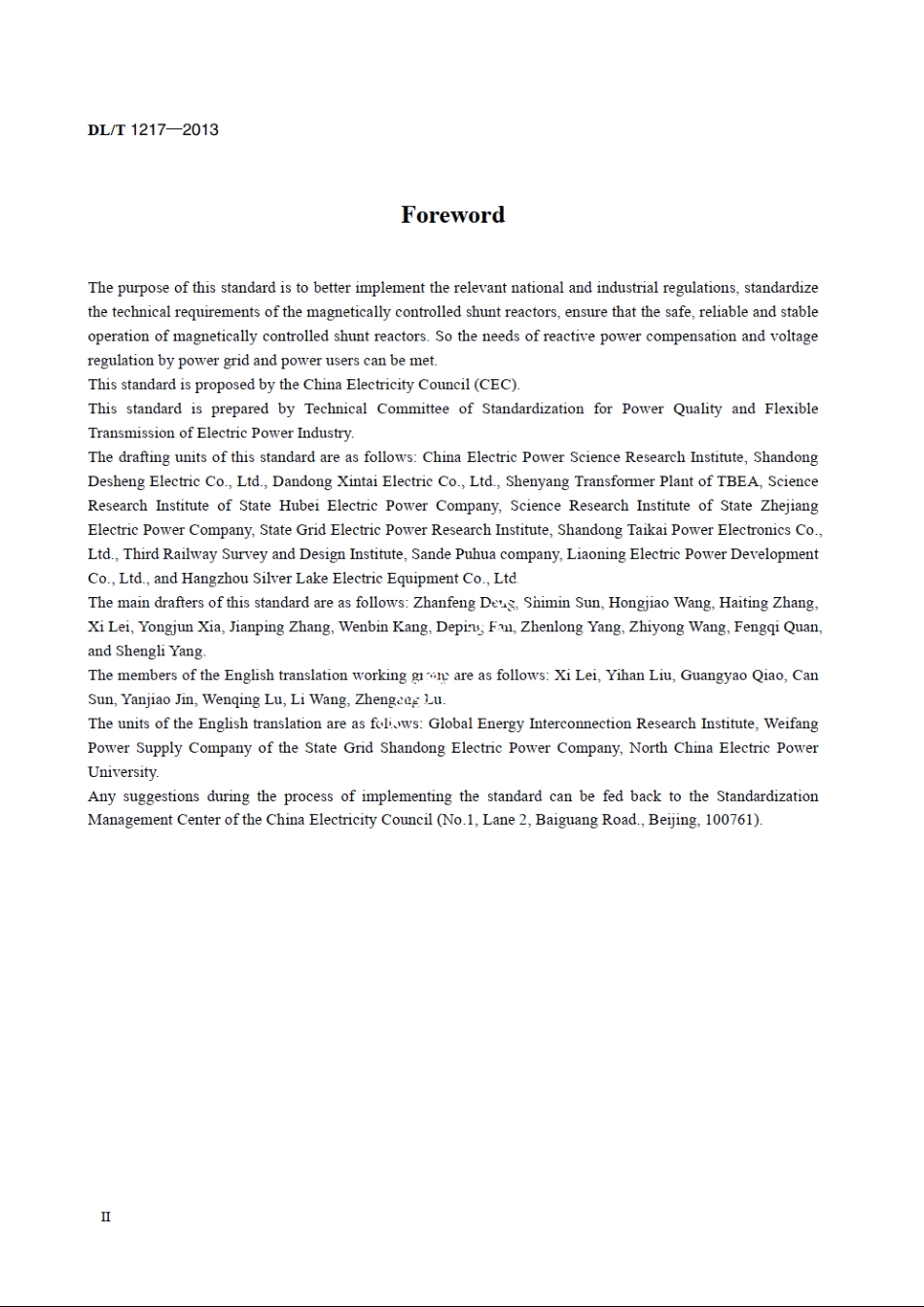

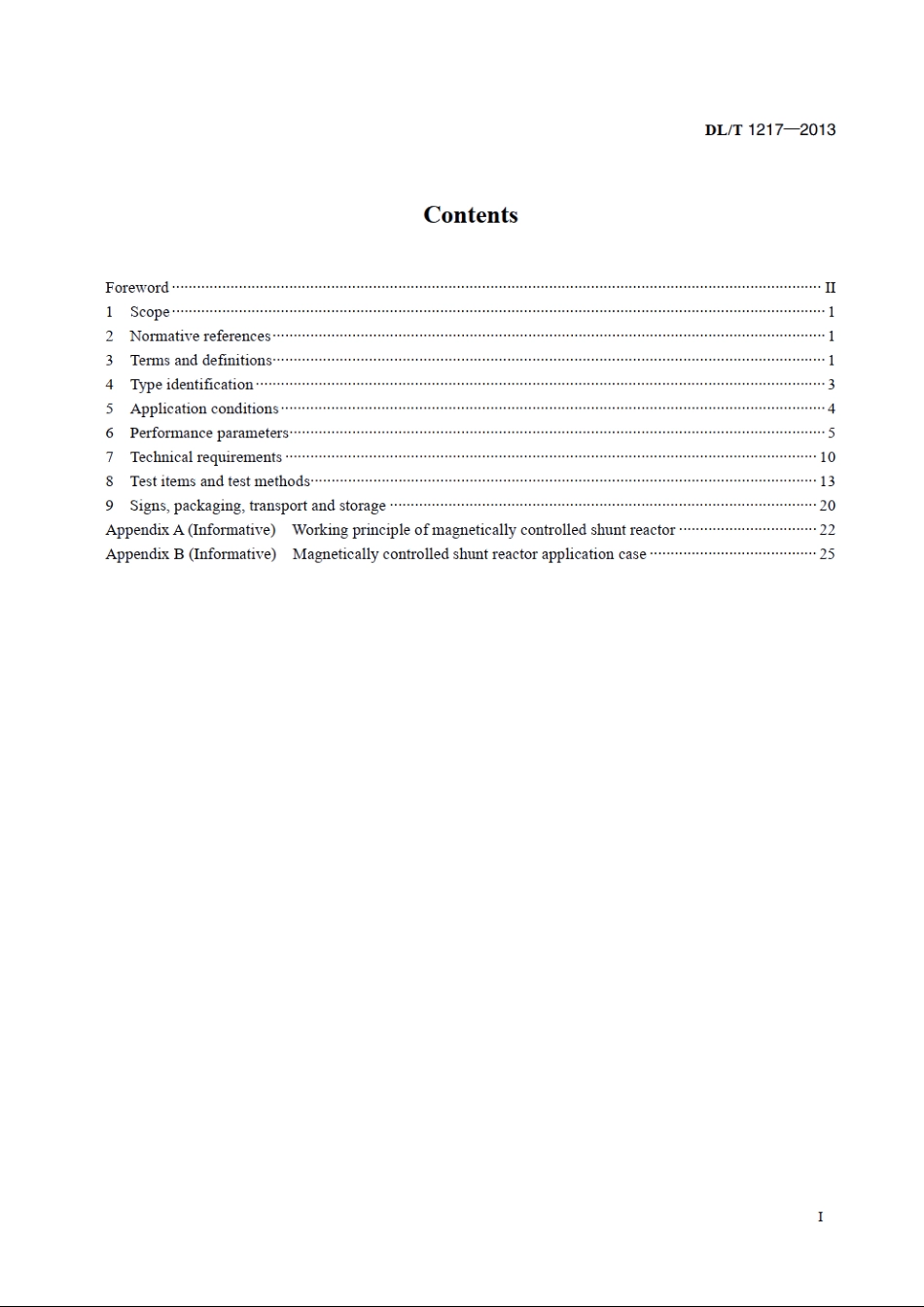

ICs29.180K40Rec0rdNo.40047-2013Electric Power Industry Standard of the Peoples Republic of ChinaDL/T1217-2013Technical specification for magneticallycontrolled shunt reactor磁控型可控并联电抗器技术规范English TranslationIssue date:2013-03-07Implementation date:2013-08-01Issued by National Energy AdministrationDL/T1217-2013Technical specifications for magneticallycontrolled shunt reactor1 ScopeThis standard specifies these contents of magnetically controlled shunt reactor(referred to as MCSR),includingterms and definitions,model designation,serving conditions,performance parameters,technical requirements,test methods and inspection rules,marking,packaging,transporting and storage.This standard is applicable to 66 kV and below the voltage level system for reactive power compensation andvoltage regulation of magnetically controlled shunt reactor.Magnetically controlled shunt reactor at othervoltage levels can refer to this standard for implementation.2 Normative referencesThe following referenced documents are indispensable for the application of this document.For dated references,only the edition cited applies.For undated references,the latest edition of the referenced document(includingany amendments)applies to this document.GB 1094.1 Power transformers-Part 1:GeneralGB 1094.2 Power transformers-Part 2:Tempecare rise for liquid-immersed transformersGB 1094.3 Power transformers-Part 3:Insaton levels,dielectric tests and external clearances in airGB 1094.11 Power transformers-Part 1Diy-type transformersGB 2536 Fluids for electrotechnical applications-Unused mineral insulating oils for transformers and switchgearGB/T 311.2 Insulation co-ordination-Part 2:Application guideGB/T 321 Preferred numbers-Series of preferred numbersGB/T 1094.6 Power transformers-Part 6:ReactorsGB/T 1094.10 Power transformers-Part 10:Determination of sound levelsGB/T 6451-2008 Specification and technical requirements for oil-immersed power transformersGB/T 7261 Basic testing method for relaying protection and security automatic equipmentGB/T9969 General principles for preparation of instructions for use of industrial productsGB/T 14549 Quality of electric energy supply Harmonics in public supply networkGB/T 14598.1 Electrical relays-Part 23:Contact performanceGB/T 16927.1 High-voltage test techniques-Part 1:General definitions and test requirementsDL/T 478 General specifications for relaying protection and security automatic equipmentDL/T 995 Testing Regulations on Protection and Stability Control EquipmentDL/T 1010.2 High-voltage static VAR compensator Part 2:Testing of thyristor valvesDL/T 1193-2012 Terminology for flexible power transmissionJB/T 3837 Identification method of transformers product type3 Terms and definitionsThe following terms and definitions apply to this standard.
