Qualcomm
Cellular
V2X
AESIN
Oct
2016

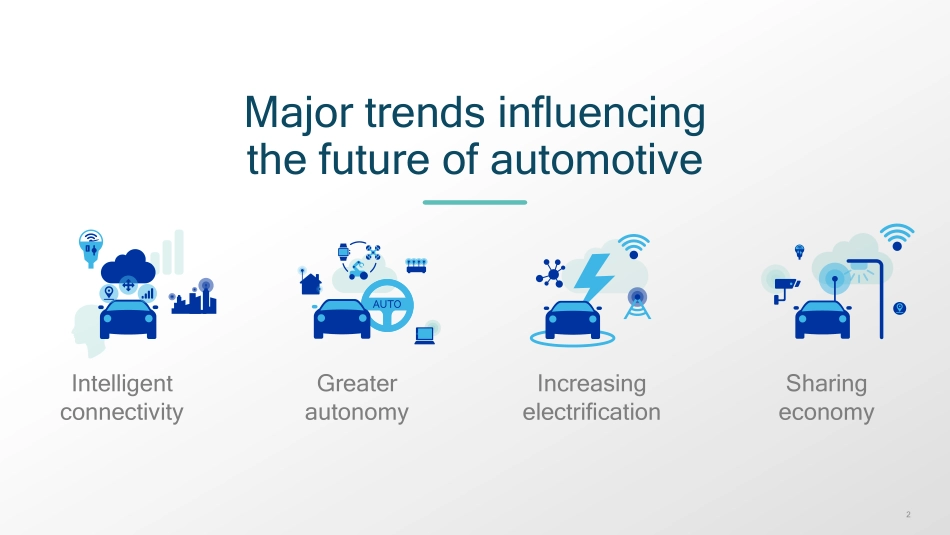

Will BROWN,Senior Director,Product MarketingQualcomm Technologies,Inc.October 2016qualcomm#whywaitLeading the world to 5G:Cellular Vehicle-to-Everything(C-V2X)technologies2Intelligent connectivityGreaterautonomyIncreasing electrificationSharingeconomyMajor trends influencing the future of automotive3Cloud3G/LTE,5G,GNSS,FM/AM/HD/DABIn-vehicle userdevice connectivityBluetooth,Wi-FiCar systemsCAN,Ethernet,PowerlineEnvironment/Vehicle-to-vehicleDSRC/11p,C-V2X,5GIntegration,processing and securityIntelligently connecting the car to everythingEmpowering seamless connectivity4Camera 4LidarRadarLane departurewarning Pedestrian detectionTraffic signal recognition Blind spot detection Rear collision warning Parking assistanceSurround view systemDriver monitoring/distraction identification Cross traffic alertCamera 3Rear seat displayBroughtin deviceCamera 1Sensor 2Camera 2CenterStackBrought indeviceRear seat displayProvidingnew insightson vehicleand driver performanceRoad landmark and dynamic road conditions Driver state and in-cabin monitoring PrecisepositionVehicle diagnostics and efficiencyTraffic conditions and pedestrian detection Environmental assessment(e.g.pollution)5Ultrasonic sensorsRadarFront camera,surround visionLidarLTEDSRCMaps and localizationC-V2XSupport for server computing and route planning(V2C)Navigation and path predictionReal-time obstacles on road features and obstaclesDirect connect using LTE-DirectReduced bandwidth and improved latencyWi-Fi based point-to-pointV2V,V2I,V2PComputer vision and deep learning networksAEB,LKA,ACC,TSRSecurityand safetyPower optimized brainfor the vehicleFusion of information from multiple sensors/sourcesPath prediction,route planning,control feedbackAutonomous carAccelerating the future of autonomous vehicles5G will be key to enabling fully autonomous capabilities Fusion6Advanced MIMOCarrier aggregation Low LatencyDual connectivitySON+Massive/FD-MIMOCoMPDevice-to-deviceUnlicensed spectrum Enhanced CAInternet of Things256QAMC-V2XFeICICFDD-TDD CAeLAAEnhanced BroadcastPart of rich roadmap of technologies Paving the path to 5GNote:Estimated commercial dates.Not all features commercialized at the same timeLTE Advanced ProLTE Advanced20152020+Rel-10/11/125G5GRel-15 and beyond Rel-13 and beyond 75G will bring new capabilities to the connected carProviding scalable connectivity to support an extreme variation of requirementsExtreme broadband Multi-gigabit throughput for 4K/8K/HDRvideo steaming,3D navUltra-low latency(1ms)Cooperative collision avoidance,synchronized drivingEnhanced V2X“See through”augmented reality,vulnerable road user discoveryEdgeless connectivity New ways of connecting(e.g.,multihop),vehicle as a network node8Our technology is enabling the connected car experience todayMultimediaPower ManagementGPURFSoftware/HLOSPosition/LocationDSPWi-Fi/DSRCWireless EV Charging3G/4G LTECPUBluetoothPowerlineEthernetSecurityMulti-OS supportComputerVision 9V2X is a key technology enabler to enhanced ADASBringing significant value to Advanced Driver Assistance Systems(ADAS)Improved active safetyProvides 360non-line-of-sight awareness,e.g.intersections/on-ramps,environmental conditions Better traffic efficiencyAllows vehicles to safely drive closer to each other and enables optimization of overall traffic flowIncreased situational awarenessProvides ability to gather data from further ahead to deliver a more predictable driving experienceV2IV2NV2VV2PLiDARRadarComputerVision10Introducing Cellular V2X(C-V2X)A unified connectivity platform for the connected vehicle of the futurePart of Release 14 of the global 3GPP standardTarget C-V2X specification completion end of 20161Builds upon existing LTE connectivity platform for automotiveLTE already delivering key services today,e.g.telematics,eCall,connected infotainmentEnhances LTE Direct for V2X direct communicationsImprovements over 802.11p up to a few additional seconds of alert latency and 2x range2Leverages existing LTE networks for V2X network communicationsUsing LTE Broadcast optimized for V2X to offer additional applications/servicesRich roadmap towards 5G with strong ecosystem supportTechnology evolution to address expanding capabilities/use cases 1 For Direct communications component(enhancements to LTE Direct)overall spec completion expected mid-2017;2 Based on Qualcomm Research simulations(see future slides for further information)11C-V2X defines two complementary transmission modesDirect communicationsBuilding upon LTE Direct device-to-device design with enhancements for high speeds/high Doppler,high density,improved synchronization and low latencyProximal direct communications(100s of meters)Operates both in-and out-of-coverageLatency-sensitive use cases,e.g.V2V safetyNetwork communicationsUsing LTE Broadcast to broadcast messages from a V2X server to vehicles and beyond.Vehicles can send messages to server via unicast.Wide area networks communicationsLeverages existing LTE networksMore latency tolerant use cases,e.g.V2N situational awarenessPC5 interfacee.g.location,speedUu interfacee.g.accident 1 kilometer ahead12Roadmap to 5G will bring even more potential for the connected vehiclebuilt upon C-V2X,so no rip or replaceQualcomm is leading the way to the connected vehicle of the future pushing wireless boundaries and brining new levels of on-device intelligenceIn summaryV2X is a critical component of our vision for the always-connected,more autonomous vehicle of the futureCellular V2X brings improvements over 802.11p/DSRC for active safety use cases and beyond part of 3GPP Release 14 Learn more at: us on:For more information,visit us at:& Nothing in these materials is an offer to sell any of the components or devices referenced herein.2016 Qualcomm Technologies,Inc.and/or its affiliated companies.All Rights Reserved.Qualcomm and Snapdragon are trademarks of Qualcomm Incorporated,registered in the United States and other countries.Why Wait is a trademark of Qualcomm Incorporated.Other products and brand names may be trademarks or registered trademarks of their respective owners.References in this presentation to“Qualcomm”may mean Qualcomm Incorporated,Qualcomm Technologies,Inc.,and/or other subsidiariesor business units within the Qualcomm corporate structure,as applicable.Qualcomm Incorporated includes Qualcomms licensing business,QTL,and the vast majority of its patent portfolio.Qualcomm Technologies,Inc.,a wholly-owned subsidiary of Qualcomm Incorporated,operates,along with its subsidiaries,substantially all of Qualcomms engineering,research and development functions,and substantially allof its product and services businesses,including its semiconductor business,QCT.Thank you
