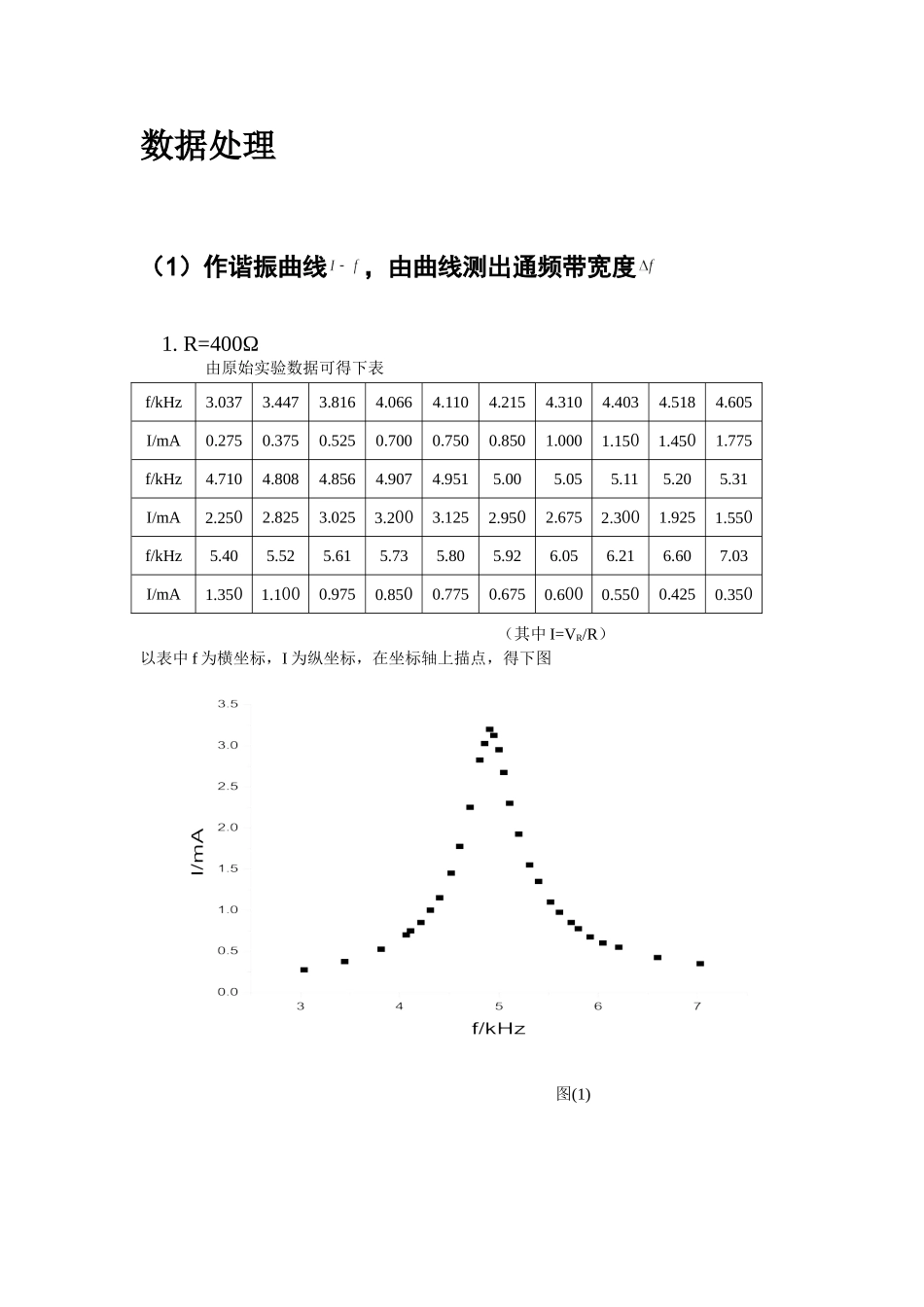

交流谐振电路（实验报告）得分：90PB07203250梁敏强实验数据实验室给出数据：Vi=2V，L=0.2H，RL=80Ω（有问题！后面给予讨论），C=0.005μF当R=400Ω时f/kHz3.0373.4473.8164.0664.1104.2154.3104.4034.5184.605VR/V0.110.150.210.280.300.340.400.460.580.71f/kHz4.7104.8084.8564.9074.9515.005.055.115.205.31VR/V0.901.131.211.281.251.181.070.920.770.62f/kHz5.405.525.615.735.805.926.056.216.607.03VR/V0.540.440.390.340.310.270.240.220.170.14谐振时：f0=4.928kHz,Vc=19.7V,VL=20.2V当R=600Ω时f/kHz3.0113.4153.8074.0074.1144.2074.3114.4094.5124.556VR/V0.180.240.350.420.480.540.640.740.870.93f/kHz4.6074.6494.7074.7584.8164.8524.9014.9585.015.06VR/V1.031.121.241.361.481.511.581.541.491.40f/kHz5.135.165.205.315.435.515.645.735.815.92VR/V1.451.191.210.930.780.690.600.530.490.44f/kHz6.056.246.627.05VR/V0.400.350.280.23谐振时：f0=4.920kHz,Vc=15.0V,VL=15.4V数据处理（1）作谐振曲线，由曲线测出通频带宽度1.R=400Ω由原始实验数据可得下表（其中I=VR/R）以表中f为横坐标，I为纵坐标，在坐标轴上描点，得下图图(1)f/kHz3.0373.4473.8164.0664.1104.2154.3104.4034.5184.605I/mA0.2750.3750.5250.7000.7500.8501.0001.1501.4501.775f/kHz4.7104.8084.8564.9074.9515.005.055.115.205.31I/mA2.2502.8253.0253.2003.1252.9502.6752.3001.9251.550f/kHz5.405.525.615.735.805.926.056.216.607.03I/mA1.3501.1000.9750.8500.7750.6750.6000.5500.4250.350Model:Chi^2/DoF=0.00042R^2=0.99958A=0.61036±0.00564B=0.2082±0.00035C=-10.016±0.01876D=121.35335±0.18948因为，整理可得即有（其中A、B、C、D由电路中的元件唯一确定）以这个为函数原型，利用图(1)中各点进行曲线拟合（借助origin7.5实现），得图(2)故可得所以由该表达式可知，当kHz时，取最大值mA。当=2.243mA时，得4.709kHz，5.130kHZ。所以kHz2.R=600Ω由原始实验数据可得下表（其中I=VR/R）以表中f为横坐标，I为纵坐标，在坐标轴上描点，得下图图(3)显然有两点（表中红字）与其他偏离了，应该是在实验记录数据的时候笔误记录错了，在此予以忽略。以为函数原型，利用图(1)中各点（除去偏离的两点）进行曲线拟合（借助origin7.5实现），得f/kHz3.0113.4153.8074.0074.1144.2074.3114.4094.5124.556I/mA0.3000.4000.5830.7000.8000.9001.0671.2331.4...
