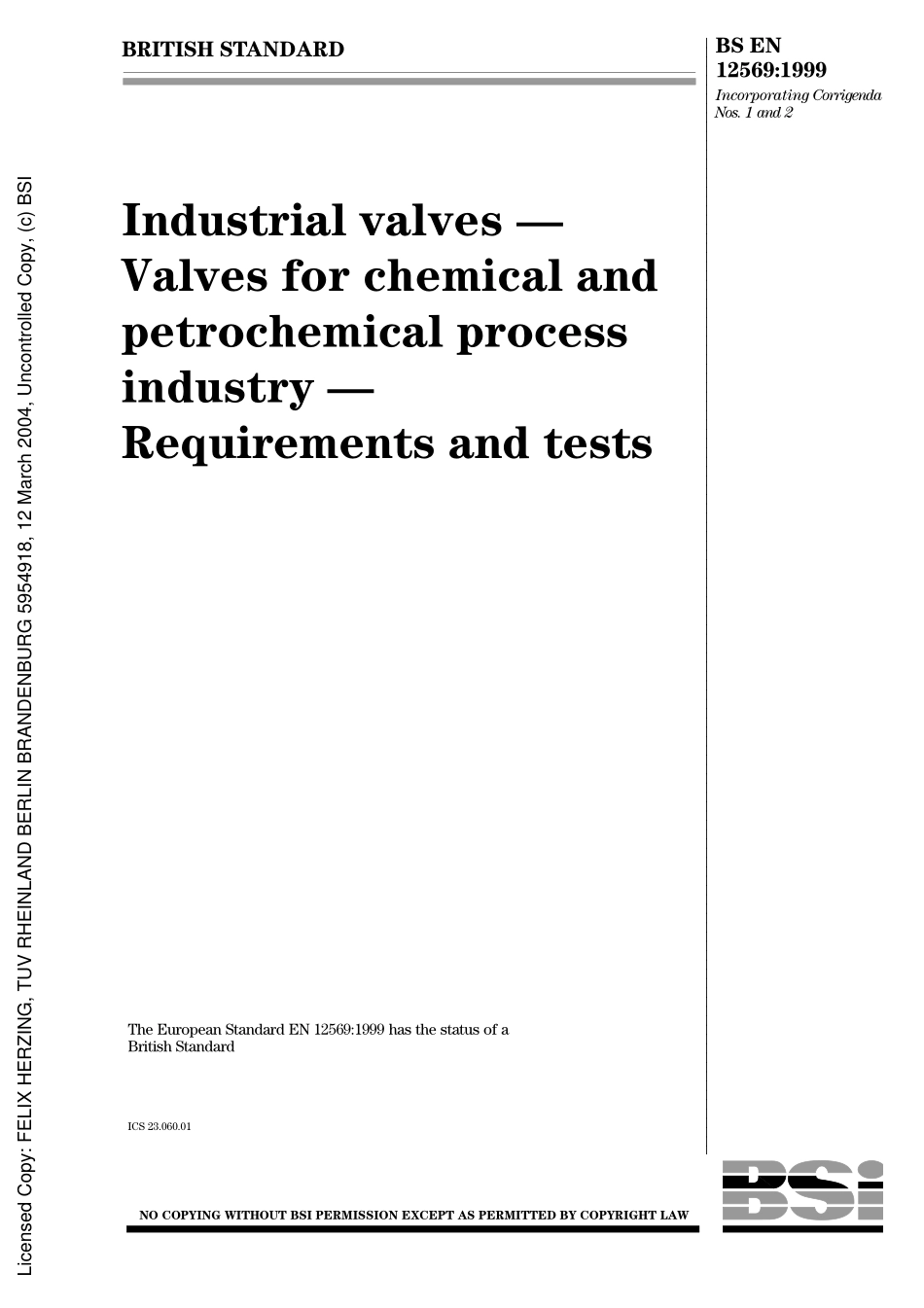

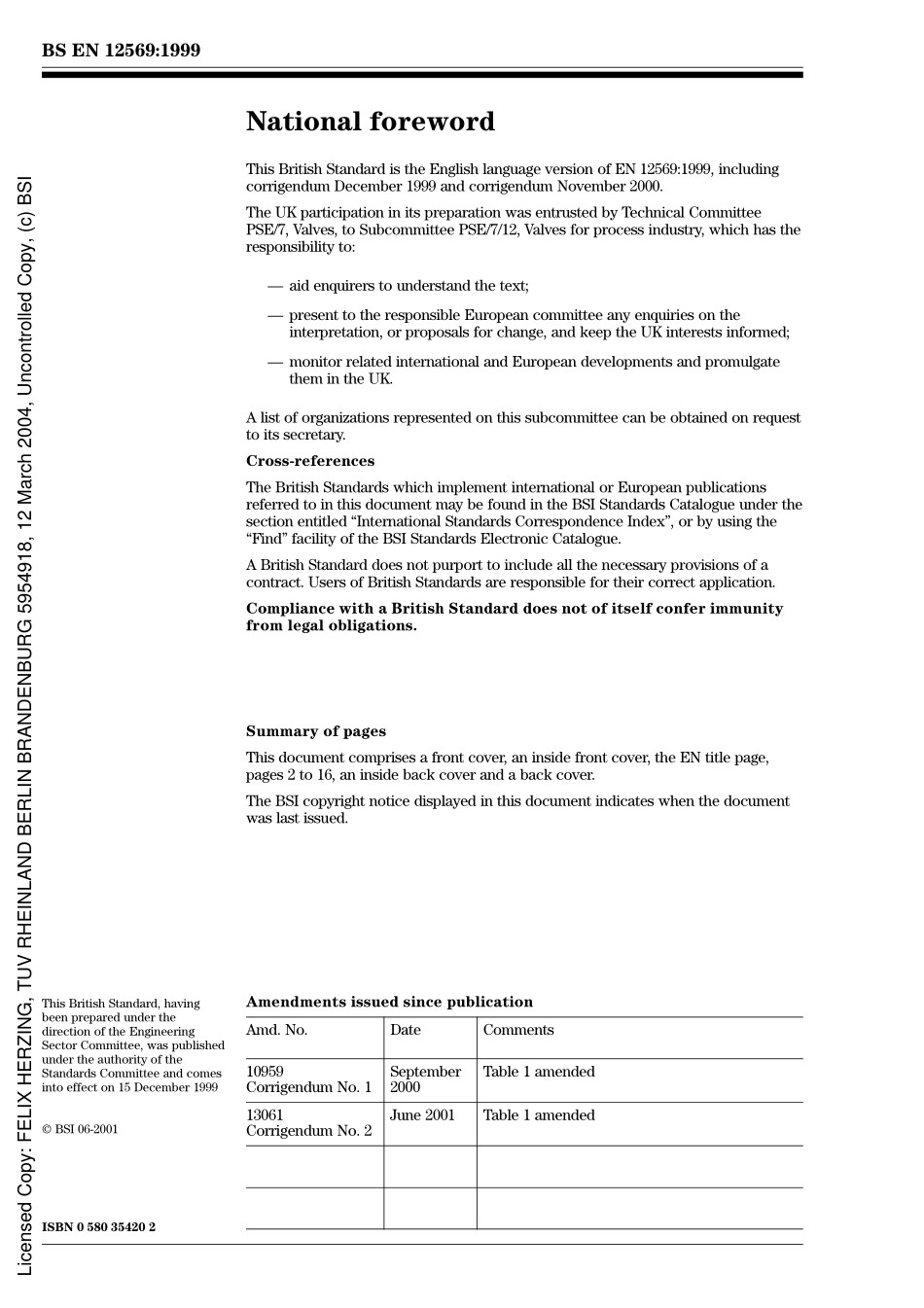

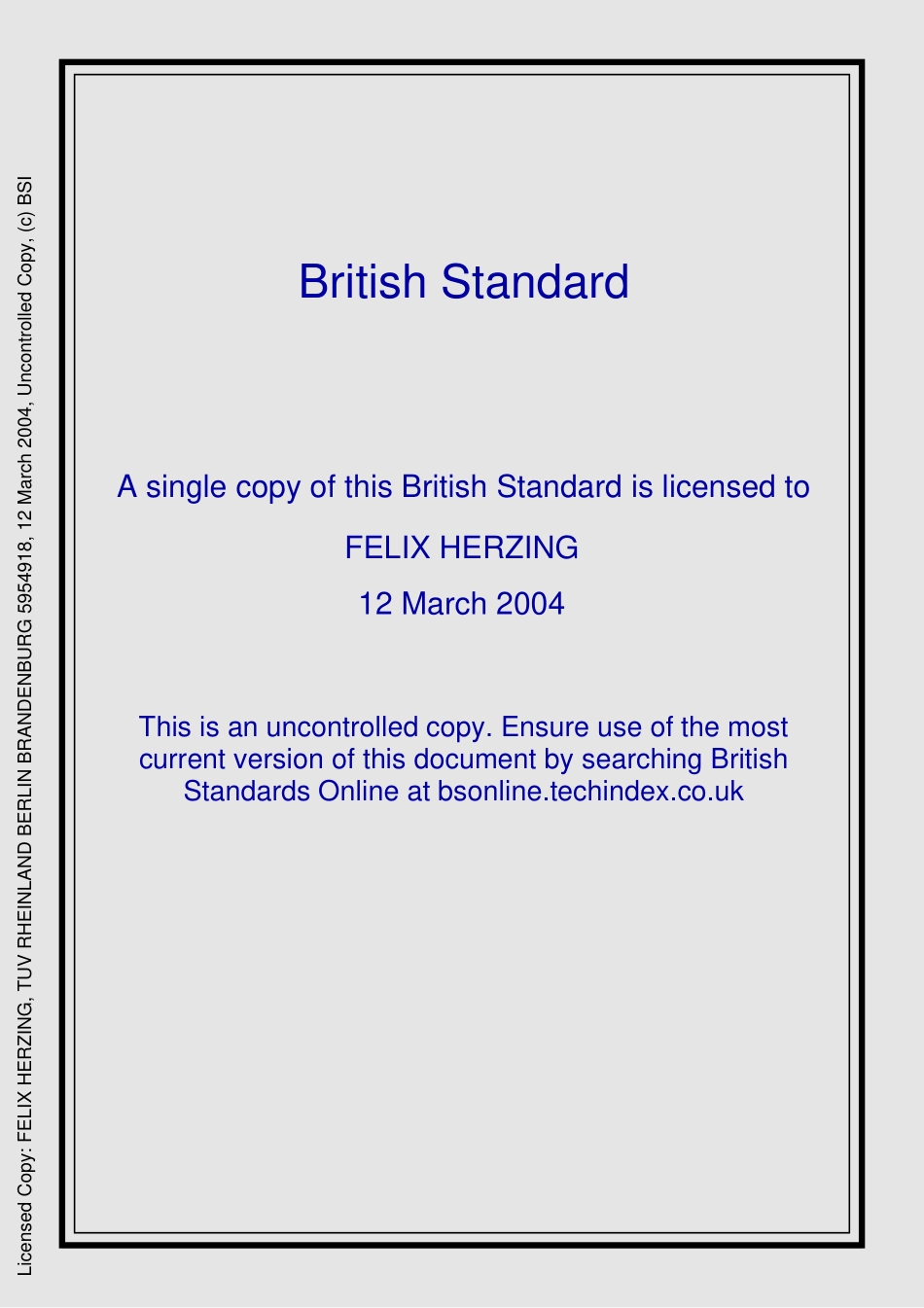

Licensed Copy:FELIX HERZING,TUV RHEINLAND BERLIN BRANDENBURG 5954918,12 March 2004,Uncontrolled Copy,(c)BSIBritish StandardA single copy of this British Standard is licensed toFELIX HERZING12 March 2004This is an uncontrolled copy.Ensure use of the mostcurrent version of this document by searching BritishStandards Online at bsonline.techindex.co.uk|BRITISH STANDARDBS EN12569:1999Incorporating CorrigendaNos.1 and 2The European Standard EN 12569:1999 has the status of aBritish StandardICS 23.060.01NO COPYING WITHOUT BSI PERMISSION EXCEPT AS PERMITTED BY COPYRIGHT LAWIndustrial valves Valves for chemical andpetrochemical processindustry Requirements and testsLicensed Copy:FELIX HERZING,TUV RHEINLAND BERLIN BRANDENBURG 5954918,12 March 2004,Uncontrolled Copy,(c)BSIThis British Standard,havingbeen prepared under thedirection of the EngineeringSector Committee,was publishedunder the authority of theStandards Committee and comesinto effect on 15 December 1999 BSI 06-2001ISBN 0 580 35420 2BS EN 12569:1999Amendments issued since publicationAmd.No.DateComments10959Corrigendum No.1September2000Table 1 amended13061Corrigendum No.2June 2001Table 1 amendedNational forewordThis British Standard is the English language version of EN 12569:1999,includingcorrigendum December 1999 and corrigendum November 2000.The UK participation in its preparation was entrusted by Technical CommitteePSE/7,Valves,to Subcommittee PSE/7/12,Valves for process industry,which has theresponsibility to:aid enquirers to understand the text;present to the responsible European committee any enquiries on theinterpretation,or proposals for change,and keep the UK interests informed;monitor related international and European developments and promulgatethem in the UK.A list of organizations represented on this subcommittee can be obtained on requestto its secretary.Cross-referencesThe British Standards which implement international or European publicationsreferred to in this document may be found in the BSI Standards Catalogue under thesection entitled International Standards Correspondence Index,or by using theFind facility of the BSI Standards Electronic Catalogue.A British Standard does not purport to include all the necessary provisions of acontract.Users of British Standards are responsible for their correct application.Compliance with a British Standard does not of itself confer immunityfrom legal obligations.Summary of pagesThis document comprises a front cover,an inside front cover,the EN title page,pages 2 to 16,an inside back cover and a back cover.The BSI copyright notice displayed in this document indicates when the documentwas last issued.Licensed Copy:FELIX HERZING,TUV RHEINLAND BERLIN BRANDENBURG 5954918,12 March 2004,Uncontrolled Copy,(c)BSIEUROPEAN STANDARDNORME EUROPENNEEUROPISCHE NORMEN 12569September 1999ICS 23.060.01Incorporating corrigendum December 1999 andcorrigendum November 2000English versionIndustrial valves-Valves for chemical and petrochemicalprocess industry-Requirements and testsRobinetterie industrielle-Appareils de robinetterie destinsaux procds de lindustrie chimique et ptrochimique-Prescriptions et essaisIndustriearmaturen-Armaturen fr die chemische undpetrochemische Verfahrensindustrie Anforderungen undPrfungenThis European Standard was approved by CEN on 16 August 1999.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration.Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions(English,French,German).A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria,Belgium,Czech Republic,Denmark,Finland,France,Germany,Greece,Iceland,Ireland,Italy,Luxembourg,Netherlands,Norway,Portugal,Spain,Sweden,Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMIT EUROPEN DE NORMALISATIONEUROPISCHES KOMITEE FR NORMUNGCentral Secretariat:rue de Stassart,36 B-1050 Brussels 1999 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref.No.EN 12569:1999 ELicensed Copy:FELIX HERZING,TUV RHEINLAND BERLIN BRANDENBURG 5954918,12 March 2004,Uncontrolled Copy,(c)BSIPage 2EN 12569:1999 BSI 06-2001ContentsPageForeword3Introduction31Scope42Normative references43Definitions54Requirements54.1General54.2Quality assurance64.3Design64.4Materials84.5Welding to parts of valves94.6Surface finish115Testing and inspection115.1Non-destructive examination of steel castings115.2Testing and inspection of every valve115.3Random testing146Marking147Preparation for shipment158Technical documentation15Annex A(informative)Explanations for acceptance criteria16Licensed Copy:FELIX HERZING,TUV RHEINLAND BERLIN BRANDENBURG 5954918,12 March 2004,Uncontrolled Copy,(c)BSIPage 3EN 12569:1999 BSI 06-2001ForewordThis European Standard has been prepared by Technical Committee CEN/TC 69 Industrial valves,theSecretariat of which is held by AFNOR.This European Standard shall be given the status of a national standard,either by publication of an identicaltext or by endorsement,at the latest by March 2000,and conflicting national standards shall be withdrawn atthe latest by March 2000.According to the CEN/CENELEC Internal Regulations,the national standards organizations of the followingcountries are bound to implement this European Standard:Austria,Belgium,Czech Republic,Denmark,Finland,France,Germany,Greece,Iceland,Ireland,Italy,Luxembourg,Netherlands,Norway,Portugal,Spain,Sweden,Switzerland and the United Kingdom.IntroductionThis European Standard is based on the experience of the chemical and petrochemical industry and providesrequirements additional to those found in valve product standards.The user of the standard is free to decide to which valves it applies.Licensed Copy:FELIX HERZING,TUV RHEINLAND BERLIN BRANDENBURG 5954918,12 March 2004,Uncontrolled Copy,(c)BSIPage 4EN 12569:1999 BSI 06-20011ScopeThis European Standard applies to valves of DN15 and greater,made of metallic materials for chemical andpetrochemical plants.It contains additional requirements to those contained in the relevant Europeanproduct standards.Two levels of quality are included.All valves shall meet the requirements of level I.Valves shall meet therequirements of level II only when required by the order.NOTE:It is assumed that the essential safety requirements of the PED(satisfied by Europeanproduct standards)and safety requirements from other standards are satisfied.2Normative referencesThis European Standard incorporates,by dated or undated reference,provisions from other publications.These normative references are cited at the appropriate places in the text and the publications are listedhereafter.For dated references,subsequent amendments to or revisions of any of these publications apply tothis European Standard only when incorporated in it by amendment or revision.For undated references,thelatest edition of the publication referred to applies.EN 19Marking of general purpose industrial valvesEN 287-1Approval testing of welders-Fusion welding-Part 1:SteelsEN 288-1Specification and qualification of welding procedures for metallic materials-Part 1:General rules for fusion weldingEN 736-3Valves-Terminology-Part 3:Definition of termsprEN 1092 1:1997Flanges and their joints-Circular flanges for pipes,valves,fittings andaccessories,PN designated-Part 1:Steel flangesEN 1092 2:1997Flanges and their joints-Circular flanges for pipes,valves,fittings andaccessories,PN designated Part 2:Cast iron flangesEN 1333Pipework components Definition and selection of PNprEN 1349:1999Industrial process control valvesprEN 1503-1:1995Valves-Shell materials-Part 1:SteelsprEN 1503-2:1995Valves-Shell materials-Part 2:ISO-steelsprEN 1503-3:1995Valves-Shell materials-Part 3:Cast ironsEN 1563Founding-Spheroidal graphite cast ironsprEN 12116:1996Industrial valves Part-turn valve actuator attachmentprEN 12266-1:1999Industrial valves Technical conditions of delivery-Part 1:Requirements tobe fulfilled by every valveprEN 12266-2:1999Industrial valves-Technical conditions of delivery-Part 2:FurtherrequirementsEN 12351Industrial valves-Protective caps for valves with flanged connectionsLicensed Copy:FELIX HERZING,TUV RHEINLAND BERLIN BRANDENBURG 5954918,12 March 2004,Uncontrolled Copy,(c)BSIPage 5EN 12569:1999 BSI 06-2001EN 12454Founding-Visual examination of surface discontinuities-Steel sandcastingsprEN 12516-3:1999Valves-Shell design strength-Part 3:Experimental methodprEN 12570:1998Valves-Permissible manual forces for operation of valvesEN ISO 5210Industrial valves-Multi-turn valve actuator attachments(ISO 5210:1991)EN ISO 6708Pipework components-Definition and selection of DN(nominal size)(ISO6708:1995)EN ISO 9001Quality systems-Model for quality assurance in design/development,production,installation and servicing(ISO 9001:1994)EN ISO 9002Quality systems-Model for quality assurance in production,installation andservicing(ISO 9002:1994)EN ISO 9003Quality systems-Model for quality assurance in final inspection and test(ISO 9003:1994)prEN ISO 10497:1996Testing of valves-Fire type-testing requirements(ISO 10497:1992)3DefinitionsFor the purposes of this standard,the definitions contained in any standard referred to above,apply.4RequirementsParagraphs marked with a dot?indicate requirements to be specified by the purchaser.4.1GeneralThe design of the shell shall meet the requirements of prEN 12516-3:1999 or other accepted calculationmethods.The following additional force shall allow for the undefined external moments and forces that areproduced by the adjoining piping of the vessel:The additional force,FADD,shall be calculated from:FADD =ps x Awhere:ps is the allowable pressure,in newtons per square millimetre;A is the cross-sectional area(D x?/4),in square millimetres;D is the value of DN,in millimetres.Licensed Copy:FELIX HERZING,TUV RHEINLAND BERLIN BRANDENBURG 5954918,12 March 2004,Uncontrolled Copy,(c)BSIPage 6EN 12569:1999 BSI 06-2001It is assumed that the section modulus of the valve is equal to or greater than the adjacent pipe and that thematerials strengths are equal.Under these conditions it is assumed that correct function is preserved.For the visual inspection and the non-destructive tests,all pressure retaining parts shall have a surface finishwhich makes it possible to conduct the tests in accordance with table 1.?When fire test certification is required it shall be specified by the purchaser.Certification shall be inaccordance with prEN ISO 10497:1996 or other standard by agreement.The valve shall be asbestos free.?If the subcontractors are not certified in accordance with EN ISO 9000 series,(EN ISO 9001,EN ISO 9002,EN ISO 9003,as appropriate),the purchasers can require to be informed about the change ofsubcontractors for main parts of a valve(e.g.castings,forgings for valves).The purchaser shall be informedabout the use of subcontractors for complete valves.The manufacturer shall ensure in every case theinterchangeability of parts.4.2Quality assurance4.2.1Semi-product manufacturer(e.g.foundry,forge,welding shop)Semi-product manufacturers shall have suitable equipment and qualified personnel for proper manufacture oftheir materials and products.They shall have test equipment for tests according to applicable standards orother required technical specifications.These manufacturers shall ensure the proper manufacture andprocessing of the materials and products by means of a quality assurance system,in accordance withEN ISO 9000 series,(EN ISO 9001,EN ISO 9002,EN ISO 9003,as appropriate)audited at regular intervalsby an authorized representative(e.g.notified body).The documentation for materials or semi-products shall be made available to the purchaser on request.4.2.2Valve manufacturerThe valve manufacturer shall have suitable equipment and qualified personnel for the further processing ofthe materials or semi-products used.He shall operate a quality assurance system,in accordance withEN ISO 9000 series,(EN ISO 9001,EN ISO 9002,EN ISO 9003,as appropriate),audited at regular intervalsby an authorized representative(e.g.notified body).The purchaser has the right to witness the quality tests at the manufacturers and/or suppliers premises andto carry out quality audits.Documentation shall be made available to the purchaser on request.4.3Design4.3.1GeneralValves shall meet the design requirements of their specific product standards,if such exist.Where no applicable product standard exists safe and sound engineering practice,including the applicationof basic standards for industrial valves,shall apply.The following requirements concerning design shall apply to all valves.Licensed Copy:FELIX HERZING,TUV RHEINLAND BERLIN BRANDENBURG 5954918,12 March 2004,Uncontrolled Copy,(c)BSIPage 7EN 12569:1999 BSI 06-20014.3.2Anti-blow-out shaft/stemThe design of the shaft/stem shall be anti-blow-out type in accordance with EN 736-3.4.3.3GasketsGaskets of the shell shall be radially retained against the pressure,except in the case of body bonnet jointsup to and including PN 25(or Class 150)valves.Spiral wound gaskets sealing the body/cover connection shall be fully retained or provided with outer andinner guide rings.The sealing face of spiral wound gaskets and metallic ring-joint gaskets shall not be interrupted by bolts,ringsetc.4.3.4Fugitive emission control?When required,valves shall be fitted with a stem seal specifically designed to prevent fugitive emissions tothe atmosphere.If requested by the purchaser a type qualification test shall be carried out.The testprocedure and the acceptance criteria shall be as agreed.Where bellows and diaphragms are used as primary seals,they shall be provided with a secondary packingin case of rupture.4.3.5Anti-static protectionThe electrical resistance between body and obturator/stem of the valve shall not exceed106 ohms.4.3.6Screwed connectionsAll screwed connections,e.g.body/cover connections or screwed in parts of valves,shall be properly secured(e.g.by friction or locking)against accidental loosening.Screwed body/cover connections that rely on thethread to seal are not acceptable.The valve shall be designed so that the risk of media induced crevice corrosion will be avoided.4.3.7Wafer and lug type valvesWafer and lug type valves shall not require an increase in flange bolt load above that which is necessary toseal the valve/flange joints.4.3.8Position of the obturator/actuator in quarter turn valvesThe position of a lever or indicator shall be in the direction of the pipeline when the valve is open andperpendicular to the pipeline when the valve is close
