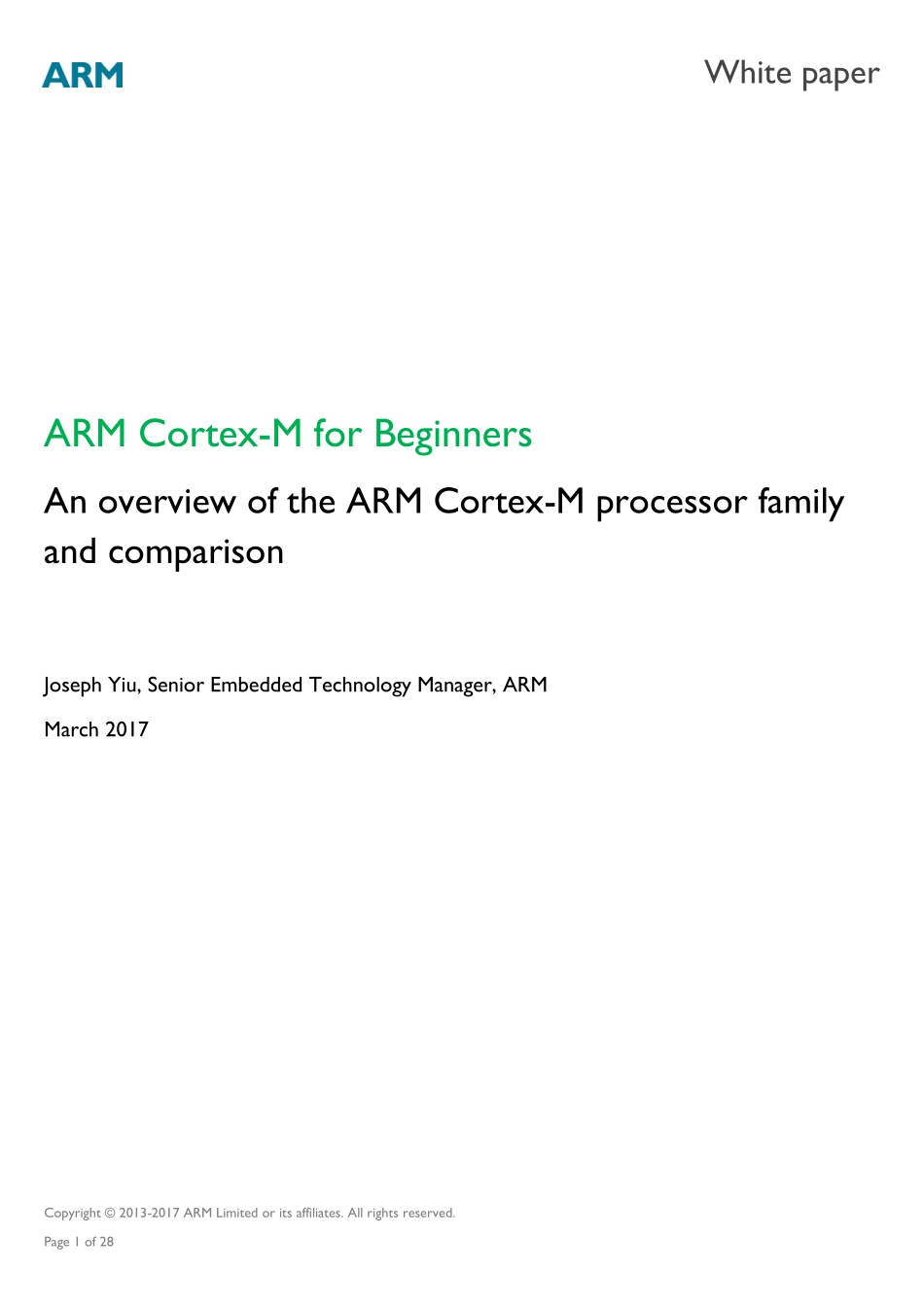

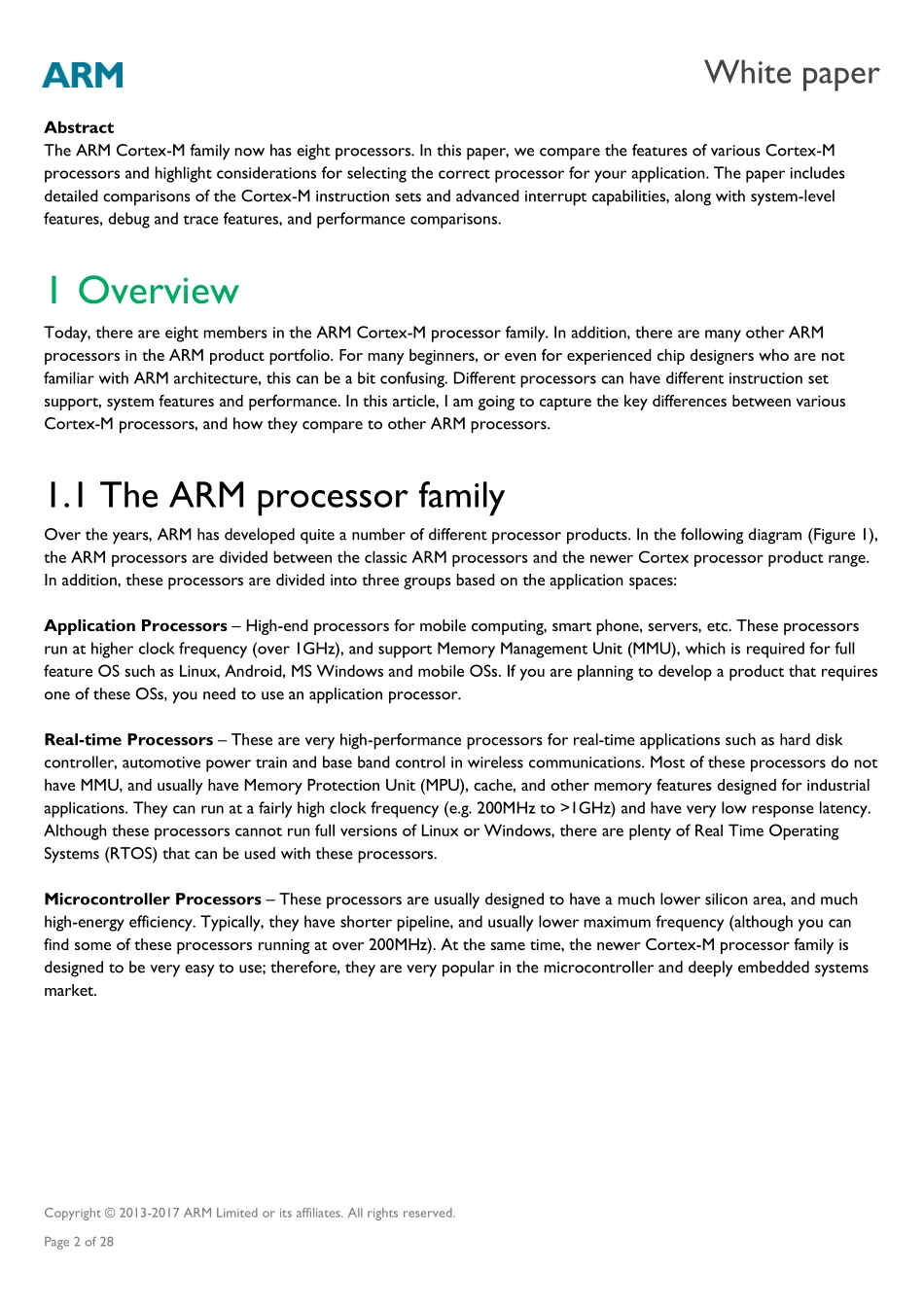

White paper Copyright 2013-2017 ARM Limited or its affiliates.All rights reserved.Page 1 of 28 ARM Cortex-M for Beginners An overview of the ARM Cortex-M processor family and comparison Joseph Yiu,Senior Embedded Technology Manager,ARM March 2017 White paper Copyright 2013-2017 ARM Limited or its affiliates.All rights reserved.Page 2 of 28 Abstract The ARM Cortex-M family now has eight processors.In this paper,we compare the features of various Cortex-M processors and highlight considerations for selecting the correct processor for your application.The paper includes detailed comparisons of the Cortex-M instruction sets and advanced interrupt capabilities,along with system-level features,debug and trace features,and performance comparisons.1 Overview Today,there are eight members in the ARM Cortex-M processor family.In addition,there are many other ARM processors in the ARM product portfolio.For many beginners,or even for experienced chip designers who are not familiar with ARM architecture,this can be a bit confusing.Different processors can have different instruction set support,system features and performance.In this article,I am going to capture the key differences between various Cortex-M processors,and how they compare to other ARM processors.1.1 The ARM processor family Over the years,ARM has developed quite a number of different processor products.In the following diagram(Figure 1),the ARM processors are divided between the classic ARM processors and the newer Cortex processor product range.In addition,these processors are divided into three groups based on the application spaces:Application Processors High-end processors for mobile computing,smart phone,servers,etc.These processors run at higher clock frequency(over 1GHz),and support Memory Management Unit(MMU),which is required for full feature OS such as Linux,Android,MS Windows and mobile OSs.If you are planning to develop a product that requires one of these OSs,you need to use an application processor.Real-time Processors These are very high-performance processors for real-time applications such as hard disk controller,automotive power train and base band control in wireless communications.Most of these processors do not have MMU,and usually have Memory Protection Unit(MPU),cache,and other memory features designed for industrial applications.They can run at a fairly high clock frequency(e.g.200MHz to 1GHz)and have very low response latency.Although these processors cannot run full versions of Linux or Windows,there are plenty of Real Time Operating Systems(RTOS)that can be used with these processors.Microcontroller Processors These processors are usually designed to have a much lower silicon area,and much high-energy efficiency.Typically,they have shorter pipeline,and usually lower maximum frequency(although you can find some of these processors running at over 200MHz).At the same time,the newer Cortex-M processor family is designed to be very easy to use;therefore,they are very popular in the microcontroller and deeply embedded systems market.White paper Copyright 2013-2017 ARM Limited or its affiliates.All rights reserved.Page 3 of 28 ApplicationProcessors(with MMU,support Linux,MS mobile OS)Real TimeProcessorsMicrocontrollersand deeply embeddedSystem capability&performanceARM7TMseriesARM920TTM,ARM940TTMARM946TM,ARM966TMARM926TMCortex-M3Cortex-M1(FPGA)Cortex-M0Cortex-M0+Cortex-M4Cortex-R4Cortex-R5Cortex-R7Cortex-A8Cortex-A9Cortex-A5Cortex-A15Cortex-A7ARM Cortex ProcessorsClassic ARM ProcessorsCortex-A57Cortex-A53Cortex-A12ARM11TMseriesCortex-R8Cortex-A17Cortex-A72Cortex-A73Cortex-A32Cortex-A35Cortex-R52Cortex-M7Cortex-M23Cortex-M33 Figure 1:ARM processor family Table 1 summarizes the main characteristics of the three processor ranges.Application processors Real-time processors Microcontroller processors Design High clock frequency,Long pipeline,High performance,Multimedia support(NEON instruction set extension)High clock frequency,Long to medium pipeline length,Deterministic(low interrupt latency)Usually shorter pipeline,Ultra-low-power,Deterministic(low interrupt latency)System features Memory Management Unit(MMU),cache memory,ARM TrustZone security extension Memory Protection Unit(MPU),cache memory,Tightly Coupled Memory(TCM)Memory Protection Unit(MPU),Nested Vectored Interrupt Controller(NVIC),Wakeup Interrupt Controller(WIC),ARM TrustZone security extension in latest designs.Target markets Mobile computing,smart phones,energy-efficient servers,high-end microprocessors Industrial microcontrollers,automotives,Hard disk controllers,Baseband modem Microcontrollers,Deeply embedded systems(e.g.sensors,MEMS,mixed signal IC),Internet of Things(IoT)Table 1:Summary of processor characteristics White paper Copyright 2013-2017 ARM Limited or its affiliates.All rights reserved.Page 4 of 28 1.2 The Cortex-M processor family The Cortex-M processor family is more focused on the lower end of the performance scale.However,these processors are still quite powerful when compared to other typical processors used in most microcontrollers.For example,the Cortex-M4 and Cortex-M7 processors are being used in many high-performance microcontroller products,with maximum clock frequency going up to 400MHz.Of course,performance is not the only factor when selecting a processor.In many applications,low power and cost are the key selection criteria.Therefore,the Cortex-M processor family contains various products to address different needs:Processor Descriptions Cortex-M0 A very small processor(starting from 12K gates)for low cost,ultra low power microcontrollers and deeply embedded applications Cortex-M0+The most energy-efficient processor for small embedded system.Similar size and programmers model to the Cortex-M0 processor,but with additional features like single cycle I/O interface and vector table relocations Cortex-M1 A small processor design optimized for FPGA designs and provides Tightly Coupled Memory(TCM)implementation using memory blocks on the FPGAs.Same instruction set as the Cortex-M0 Cortex-M3 A small but powerful embedded processor for low-power microcontrollers that has a rich instruction set to enable it to handle complex tasks quicker.It has a hardware divider and Multiply-Accumulate(MAC)instructions.In addition,it also has comprehensive debug and trace features to enable software developers to develop their applications quicker Cortex-M4 It provides all the features on the Cortex-M3,with additional instructions target at Digital Signal Processing(DSP)tasks,such as Single Instruction Multiple Data(SIMD)and faster single cycle MAC operations.In addition,it also have an optional single precision floating point unit that support IEEE 754 floating point standard Cortex-M7 High-performance processor for high-end microcontrollers and processing intensive applications.It has all the ISA features available in Cortex-M4,with additional support for double-precision floating point,as well as additional memory features like cache and Tightly Coupled Memory(TCM)Cortex-M23 A small processor for ultra-low power and low cost designs,similar to the Cortex-M0+processor,but with various enhancements in instruction set and system-level features.It also supports the TrustZone security extension.Cortex-M33 A mainstream processor design,similar to previous Cortex-M3 and Cortex-M4 processors,but with much better flexibility in system design,better energy efficiency and higher performance.It also supports the TrustZone security extension.Table 2:The Cortex-M processor family Quite different from legacy ARM processors(e.g.ARM7TDMI,ARM9),the Cortex-M processors have a very different architecture.For instance:-Only support ARM Thumb instructions,which have been extended to support both 16-bit and 32-bit instructions in Thumb-2.-Interrupt handling is managed by a built-in interrupt controller called Nested Vector Interrupt Controller(NVIC),which provides automatic prioritization,masking and nesting of interrupts and system exceptions.-Interrupt handlers can be written as normal C functions and the vectored interrupt handling mechanism avoided the need to use software to determine which interrupt to service.At the same time,interrupt responses are deterministic and have low latency.White paper Copyright 2013-2017 ARM Limited or its affiliates.All rights reserved.Page 5 of 28-Vector table changed from branch instructions to starting addresses of interrupts and system exception handlers.-The register bank and some details of the programmers model have also been changed.The changes mean many old assembly code written for classic ARM processors would need modifications,and old projects need to be modified and recompiled when migrated to the Cortex-M world.Detailed information on software porting is documented in an ARM document:ARM Cortex-M3 Processor Software Development for ARM7TDMI Processor Programmers http:/ 1.3 Common features in Cortex-M processors There are many similarities between the Cortex-M0,M0+,M3,M4 and M7 processors.For example:-Baseline programmers model (section 3.1)-Nested Vectored Interrupt Controller(NVIC)for interrupt management-Architectural defined sleep modes:sleep and deep sleep(section 4.1)-OS support features(section 3.3)-Debug support(section 6)-Ease of use For example,the NVIC is an integrated interrupt controller.NVICSysTick(System Tick Timer)PeripheralsNMIIRQsCortex-MprocessorCoreConfigurationregistersInternal bus interconnectSystem exceptionsBus interfacePeripheral Figure 2:NVIC in Cortex-M processor The NVIC supports a number of interrupt inputs from peripherals,a Non-Maskable Interrupt request,an interrupt request from a built-in timer called SysTick(see section3.3)and a number of system exceptions.The NVIC handles the priority management and masking of these interrupt and exceptions.More information on NVIC and the exception model is covered in section3.2.Other areas of similarity and difference are covered in the rest of this document.White paper Copyright 2013-2017 ARM Limited or its affiliates.All rights reserved.Page 6 of 28 2 Instruction Set of the Cortex-M processors 2.1 Instruction set overview In most cases,the application code would be written in C or other high-level languages.However,a basic understanding of the instruction set support in the Cortex-M processor helps to decide which Cortex-M processor is need for the tasks.The Instruction Set Architecture(ISA)is a part of the processor architecture,and the Cortex-M processors can be grouped in several architecture profiles:Architecture Descriptions ARMv6-M For Cortex-M0,Cortex-M0+and Cortex-M1 processors ARMv7-M For Cortex-M3,Cortex-M4 and Cortex-M7 processors.The extension of ARMv7-M to support DSP type instructions(e.g.SIMD)is also named as ARMv7E-M.ARMv8-M This architecture release is further divided into:Baseline sub-profile for Cortex-M23 processor Mainline sub-profile for Cortex-M33 processor For more information about ARMv8-M architecture,please see ARMv8-M Architecture Technical Overview in https:/ Table 3:ARM Architecture profiles for the Cortex-M processors All Cortex-M processors support an instruction set called Thumb.The complete Thumb instruction set became fairly large when it was expanded when the Thumb-2 Technology was made available.However,different Cortex-M processors support different subset of the instructions available in the Thumb ISA,as shown in Figure 3.Cortex-M0/M0+Cortex-M3Cortex-M4Cortex-M7ARMv6-MARMv7-MAdvanced data processingbit field manipulationsGeneral data processingI/O control tasksDSP(SIMD,fast MAC)Floating Point White paper Copyright 2013-2017 ARM Limited or its affiliates.All rights reserved.Page 7 of 28 ARMv8-MBaselineARMv8-MCortex-M23Cortex-M33 Figure 3:Instruction Set support in the Cortex-M processors 2.2 Instructions support in Cortex-M0/M0+/M1 The Cortex-M0/M0+/M1 processors are based on the ARMv6-M architecture,which has a small instruction set of just 56 instructions and most of them are 16-bit,as shown with the smaller oval shapes in figure 3.However,the registers in the processor and the data being operated on are still 32-bit.For most simple I/O control tasks and general data processing,this small instruction set is sufficient.The small instruction set allows the processor design to be implemented with very small gate count,starting from just 12K gates in the Cortex-M0 and the Cortex-M0+processors.However,many of these instructions cannot utilized the high registers(R8 to R12),and have limited capability of generating immediate data on the fly.This is a compromise between requirements in ultra low-power processor design and the performance available.2.3 Instructions support in Cortex-M3 The Cortex-M3 processor is based on the ARMv7-M architecture,and supports a much richer instruction set,including many 32-bit instructions that allow the high registers to be utilized efficiently.In addition,it also supports Table branch instructions and conditional execution(using IT instruction),hardware divide instructions,multiply-accumulate(MAC),and various bit field operations The richer instruction enhanced the performance in a number of ways;for example,the 32-bit Thumb instructions provide larger range of immediate data values,branch offset and immediate offset for data memory accesses.It also has basic support for DSP operation(e.g.,a few MAC instructions are available,which take multiple clock cycles,and saturation adjustment instructions are also available).Finally,the 32-bit instructions allow the use of the barrel shifter together with many data operations in a single instruction.The richer instruction set comes at a cost of larger silicon area and higher power.In typical microcontrollers,the gate count of the Cortex-M3 can be more than double of the Cortex-M0 or Cortex-M0+designs.However,given the silicon White paper Copyright 2013-2017 ARM Limited or its affiliates.All rights reserved.Page 8 of 28 of the processor is only a small part in most modern microcontrollers,the larger silicon area and power is often insignificant.2.4 Instructions support in Cortex-M4 The Cortex-M4 processor is very similar to the Cortex-M3 in many ways:pipeline,programmers model.It supports all the features in the Cortex-M3,and in additional support various instructions target for DSP applications like SIMD,saturation arithmetic instructions,a wide range of MAC instructions which can execute in single cycles(compared to multiple-cycles and limited selections in the Cortex-M3),and an optional floating unit that support single precision floating point operations.The SIMD operations in the Cortex-M4 handle two 16-bit data or four 8-bit data in parallel.For example,Figure 4 shows the QADD8 and QADD16 operations:int8_tint8_tint8_tint8_t310int8_tint8_tint8_tint8_t310RnRmint8_tint8_tint8_tint8_t310Rd+Signed saturationSaturation bit position8Signed saturationSigned saturationSigned saturationQADD8 ,int16_tint16_t310310RnRmint16_tint16_t+Signed saturationSaturation bit positio
