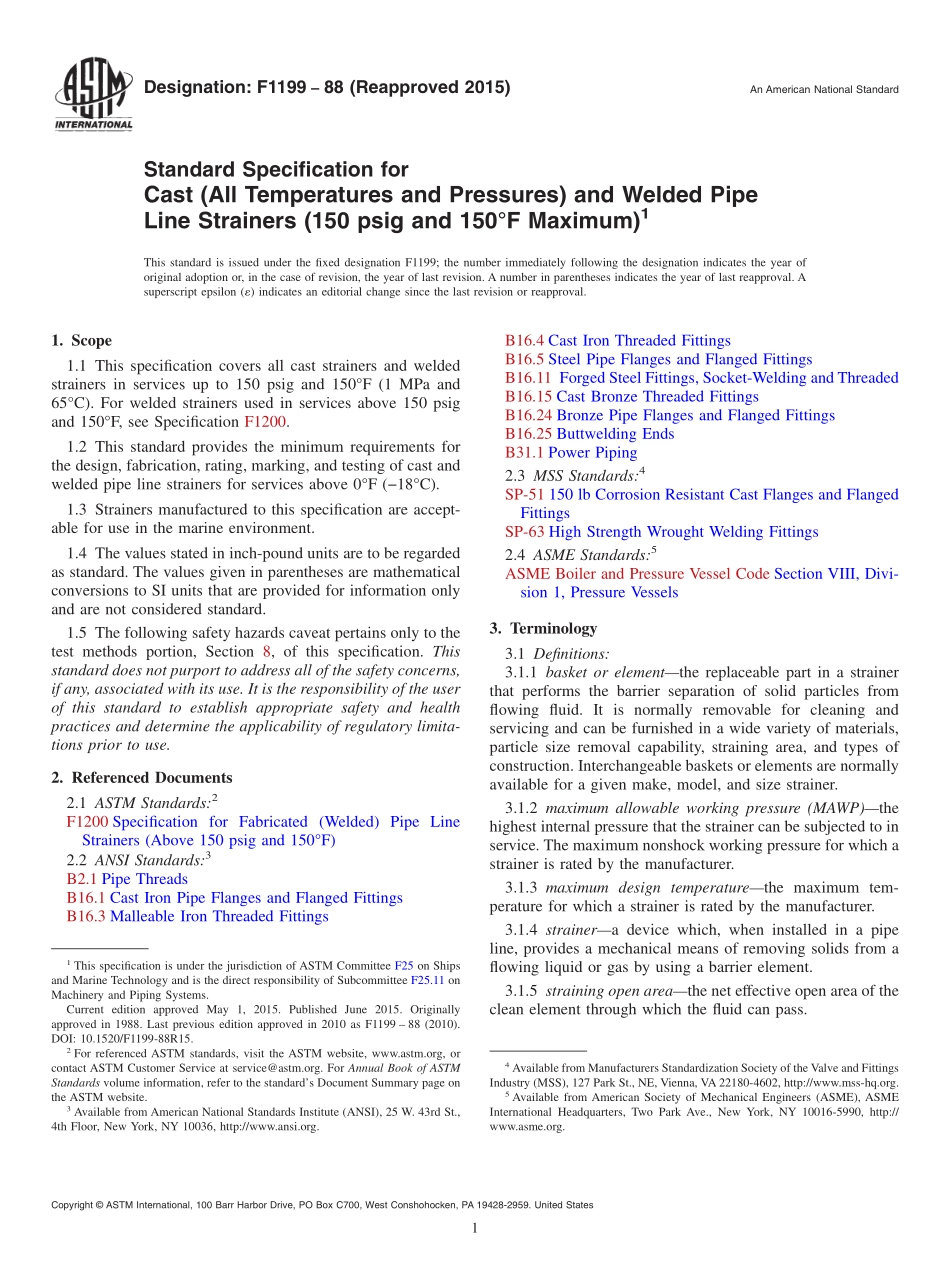

Designation:F119988(Reapproved 2015)An American National StandardStandard Specification forCast(All Temperatures and Pressures)and Welded PipeLine Strainers(150 psig and 150F Maximum)1This standard is issued under the fixed designation F1199;the number immediately following the designation indicates the year oforiginal adoption or,in the case of revision,the year of last revision.A number in parentheses indicates the year of last reapproval.Asuperscript epsilon()indicates an editorial change since the last revision or reapproval.1.Scope1.1 This specification covers all cast strainers and weldedstrainers in services up to 150 psig and 150F(1 MPa and65C).For welded strainers used in services above 150 psigand 150F,see Specification F1200.1.2 This standard provides the minimum requirements forthe design,fabrication,rating,marking,and testing of cast andwelded pipe line strainers for services above 0F(18C).1.3 Strainers manufactured to this specification are accept-able for use in the marine environment.1.4 The values stated in inch-pound units are to be regardedas standard.The values given in parentheses are mathematicalconversions to SI units that are provided for information onlyand are not considered standard.1.5 The following safety hazards caveat pertains only to thetest methods portion,Section 8,of this specification.Thisstandard does not purport to address all of the safety concerns,if any,associated with its use.It is the responsibility of the userof this standard to establish appropriate safety and healthpractices and determine the applicability of regulatory limita-tions prior to use.2.Referenced Documents2.1 ASTM Standards:2F1200 Specification for Fabricated(Welded)Pipe LineStrainers(Above 150 psig and 150F)2.2 ANSI Standards:3B2.1 Pipe ThreadsB16.1 Cast Iron Pipe Flanges and Flanged FittingsB16.3 Malleable Iron Threaded FittingsB16.4 Cast Iron Threaded FittingsB16.5 Steel Pipe Flanges and Flanged FittingsB16.11 Forged Steel Fittings,Socket-Welding and ThreadedB16.15 Cast Bronze Threaded FittingsB16.24 Bronze Pipe Flanges and Flanged FittingsB16.25 Buttwelding EndsB31.1 Power Piping2.3 MSS Standards:4SP-51 150 lb Corrosion Resistant Cast Flanges and FlangedFittingsSP-63 High Strength Wrought Welding Fittings2.4 ASME Standards:5ASME Boiler and Pressure Vessel Code Section VIII,Divi-sion 1,Pressure Vessels3.Terminology3.1 Definitions:3.1.1 basket or elementthe replaceable part in a strainerthat performs the barrier separation of solid particles fromflowing fluid.It is normally removable for cleaning andservicing and can be furnished in a wide variety of materials,particle size removal capability,straining area,and types ofconstruction.Interchangeable baskets or elements are normallyavailable for a given make,model,and size strainer.3.1.2 maximum allowable working pressure(MAWP)thehighest internal pressure that the strainer can be subjected to inservice.The maximum nonshock working pressure for which astrainer is rated by the manufacturer.3.1.3 maximum design temperaturethe maximum tem-perature for which a strainer is rated by the manufacturer.3.1.4 strainera device which,when installed in a pipeline,provides a mechanical means of removing solids from aflowing liquid or gas by using a barrier element.3.1.5 straining open areathe net effective open area of theclean element through which the fluid can pass.1This specification is under the jurisdiction of ASTM Committee F25 on Shipsand Marine Technology and is the direct responsibility of Subcommittee F25.11 onMachinery and Piping Systems.Current edition approved May 1,2015.Published June 2015.Originallyapproved in 1988.Last previous edition approved in 2010 as F1199 88(2010).DOI:10.1520/F1199-88R15.2For referenced ASTM standards,visit the ASTM website,www.astm.org,orcontact ASTM Customer Service at serviceastm.org.For Annual Book of ASTMStandards volume information,refer to the standards Document Summary page onthe ASTM website.3Available from American National Standards Institute(ANSI),25 W.43rd St.,4th Floor,New York,NY 10036,http:/www.ansi.org.4Available from Manufacturers Standardization Society of the Valve and FittingsIndustry(MSS),127 Park St.,NE,Vienna,VA22180-4602,http:/www.mss-hq.org.5Available from American Society of Mechanical Engineers(ASME),ASMEInternational Headquarters,Two Park Ave.,New York,NY 10016-5990,http:/www.asme.org.Copyright ASTM International,100 Barr Harbor Drive,PO Box C700,West Conshohocken,PA 19428-2959.United States1 4.Classification4.1 Strainers may be classified into three general construc-tion categories,simplex,duplex(or multiplex),and automatic(self-cleaning),as follows:4.1.1 SimplexA strainer consisting of a single basket orelement chamber that normally requires the flow through theunit to be shut down before cleaning.4.1.1.1 Classifications of simplex strainers based on portalignment relative to basket or element chamber are Y,T,Z,andothers.4.1.2 Duplex(or Multiplex)A strainer usually consistingof at least two baske
