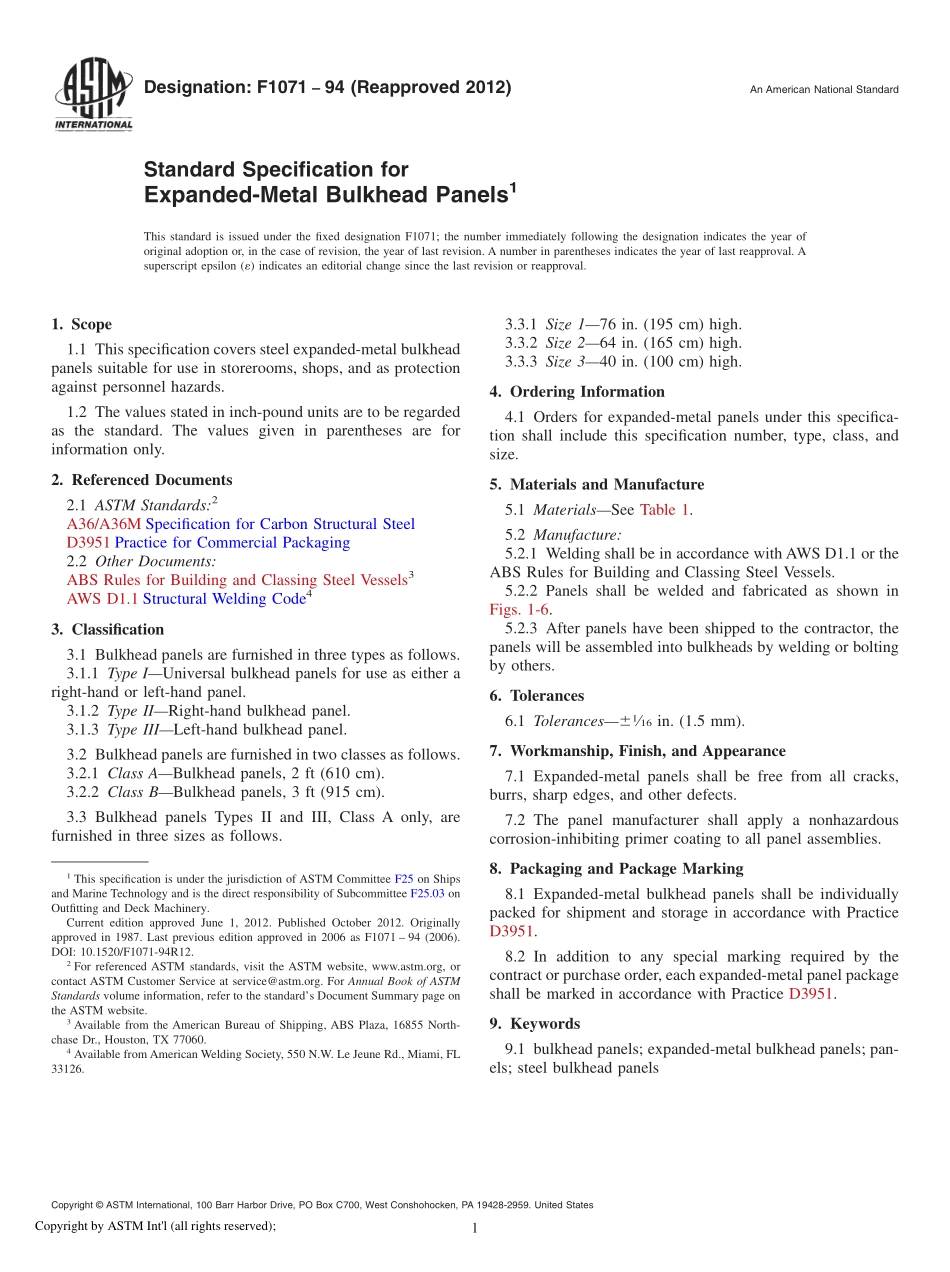

Designation:F107194(Reapproved 2012)An American National StandardStandard Specification forExpanded-Metal Bulkhead Panels1This standard is issued under the fixed designation F1071;the number immediately following the designation indicates the year oforiginal adoption or,in the case of revision,the year of last revision.A number in parentheses indicates the year of last reapproval.Asuperscript epsilon()indicates an editorial change since the last revision or reapproval.1.Scope1.1 This specification covers steel expanded-metal bulkheadpanels suitable for use in storerooms,shops,and as protectionagainst personnel hazards.1.2 The values stated in inch-pound units are to be regardedas the standard.The values given in parentheses are forinformation only.2.Referenced Documents2.1 ASTM Standards:2A36/A36M Specification for Carbon Structural SteelD3951 Practice for Commercial Packaging2.2 Other Documents:ABS Rules for Building and Classing Steel Vessels3AWS D1.1 Structural Welding Code43.Classification3.1 Bulkhead panels are furnished in three types as follows.3.1.1 Type IUniversal bulkhead panels for use as either aright-hand or left-hand panel.3.1.2 Type IIRight-hand bulkhead panel.3.1.3 Type IIILeft-hand bulkhead panel.3.2 Bulkhead panels are furnished in two classes as follows.3.2.1 Class ABulkhead panels,2 ft(610 cm).3.2.2 Class BBulkhead panels,3 ft(915 cm).3.3 Bulkhead panels Types II and III,Class A only,arefurnished in three sizes as follows.3.3.1 Size 176 in.(195 cm)high.3.3.2 Size 264 in.(165 cm)high.3.3.3 Size 340 in.(100 cm)high.4.Ordering Information4.1 Orders for expanded-metal panels under this specifica-tion shall include this specification number,type,class,andsize.5.Materials and Manufacture5.1 MaterialsSee Table 1.5.2 Manufacture:5.2.1 Welding shall be in accordance with AWS D1.1 or theABS Rules for Building and Classing Steel Vessels.5.2.2 Panels shall be welded and fabricated as shown inFigs.1-6.5.2.3 After panels have been shipped to the contractor,thepanels will be assembled into bulkheads by welding or boltingby others.6.Tolerances6.1 Tolerances6116in.(1.5 mm).7.Workmanship,Finish,and Appearance7.1 Expanded-metal panels shall be free from all cracks,burrs,sharp edges,and other defects.7.2 The panel manufacturer shall apply a nonhazardouscorrosion-inhibiting primer coating to all panel assemblies.8.Packaging and Package Marking8.1 Expanded-metal bulkhead panels shall be individuallypacked for shipment and storage in accordance with PracticeD3951.8.2 In addition to any special marking required by thecontract or purchase order,each expanded-metal panel packageshall be marked in accordance with Practice D3951.9.Keywords9.1 bulkhead panels;expanded-metal bulkhead panels;pan-els;steel bulkhead panels1This specification is under the jurisdiction of ASTM Committee F25 on Shipsand Marine Technology and is the direct responsibility of Subcommittee F25.03 onOutfitting and Deck Machinery.Current edition approved June 1,2012.Published October 2012.Originallyapproved in 1987.Last previous edition approved in 2006 as F1071 94(2006).DOI:10.1520/F1071-94R12.2For referenced ASTM standards,visit the ASTM website,www.astm.org,orcontact ASTM Customer Service at serviceastm.org.For Annual Book of ASTMStandards volume information,refer to the standards Document Summary page onthe ASTM website.3Available from the American Bureau of Shipping,ABS Plaza,16855 North-chase Dr.,Houston,TX 77060.4Available from American Welding Society,550 N.W.Le Jeune Rd.,Miami,FL33126.Copyright ASTM International,100 Barr Harbor Drive,PO Box C700,West Conshohocken,PA 19428-2959.United States1Copyright by ASTM Intl(all rights reserved);TABLE 1 Expanded-Metal Bulkhead Panel MaterialsNOTE11 in.=25.4 mm.ItemNumberDescription1Frame angle,1 1 in.,Specification A36/A36M2Brace flatbar,2 in.,Specification A36/A36M3Expanded metal 13-gage thick -in.flat pattern 23 in.wide,Specification A36/A36M4Expanded metal 13-gage thick -in.flat pattern 35 in.wide,Specification A36/A36MNOTE11 in.=25.4 mm.FIG.1 Expanded-Metal Bulkhead PanelType 1,Class A,Size 1F1071 94(2012)2Copyright by ASTM Intl(all rights reserved);NOTE11 in.=25.4 mm.FIG.2 Expanded-Metal Bulkhead PanelType I,Class B,Size 1NOTE1Type IIILeft hand not shown.NOTE21 in.=25.4 mm.FIG.3 Expanded-Metal Bulkhead PanelType II,Class A,Size 1NOTE1Type IIILeft hand not shown.NOTE21 in.=25.4 mm.FIG.4 Expanded-Metal Bulkhead PanelType II,Class B,Size 1F1071 94(2012)3Copyright by ASTM Intl(all rights reserved);ASTM International takes no position respecting the validity of any patent rights asserted in connection with any item mentionedin this standard.Users of this standard are expressly advised that determination of the validity of any such patent rights,and the riskof infringement of such rights,are entirely their own responsibility.This standard is subject to revision at any time by the responsible technical committee and must be reviewed every five years andif not revised,either reapproved or withdrawn.Y
