ASTM_A_335_-_A_335M_-_15a.pdf

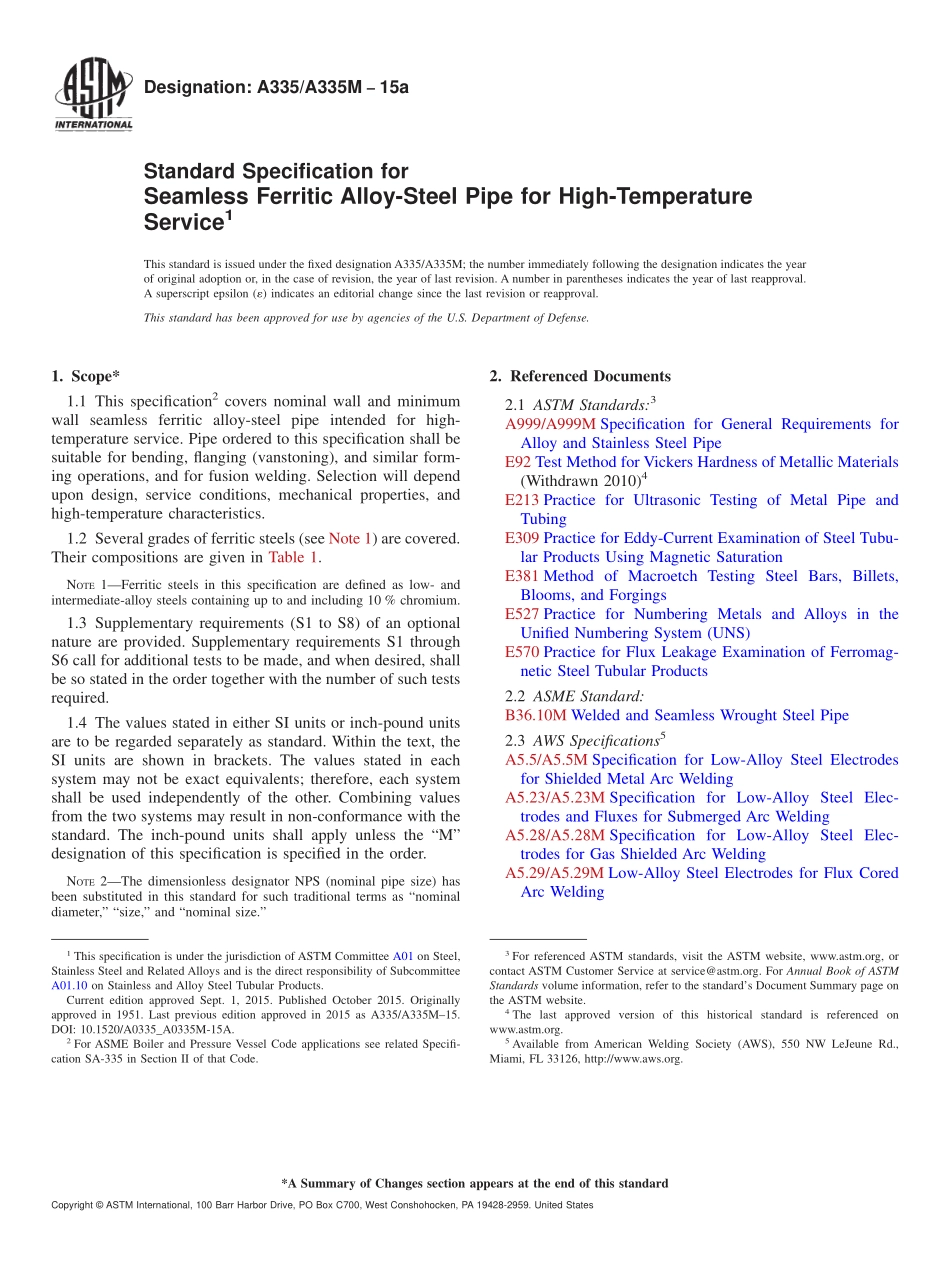

Designation:A335/A335M15aStandard Specification forSeamless Ferritic Alloy-Steel Pipe for High-TemperatureService1This standard is issued under the fixed designation A335/A335M;the number immediately following the designation indicates the yearof original adoption or,in the case of revision,the year of last revision.A number in parentheses indicates the year of last reapproval.A superscript epsilon()indicates an editorial change since the last revision or reapproval.This standard has been approved for use by agencies of the U.S.Department of Defense.1.Scope*1.1 This specification2covers nominal wall and minimumwall seamless ferritic alloy-steel pipe intended for high-temperature service.Pipe ordered to this specification shall besuitable for bending,flanging(vanstoning),and similar form-ing operations,and for fusion welding.Selection will dependupon design,service conditions,mechanical properties,andhigh-temperature characteristics.1.2 Several grades of ferritic steels(see Note 1)are covered.Their compositions are given in Table 1.NOTE1Ferritic steels in this specification are defined as low-andintermediate-alloy steels containing up to and including 10%chromium.1.3 Supplementary requirements(S1 to S8)of an optionalnature are provided.Supplementary requirements S1 throughS6 call for additional tests to be made,and when desired,shallbe so stated in the order together with the number of such testsrequired.1.4 The values stated in either SI units or inch-pound unitsare to be regarded separately as standard.Within the text,theSI units are shown in brackets.The values stated in eachsystem may not be exact equivalents;therefore,each systemshall be used independently of the other.Combining valuesfrom the two systems may result in non-conformance with thestandard.The inch-pound units shall apply unless the“M”designation of this specification is specified in the order.NOTE2The dimensionless designator NPS(nominal pipe size)hasbeen substituted in this standard for such traditional terms as“nominaldiameter,”“size,”and“nominal size.”2.Referenced Documents2.1 ASTM Standards:3A999/A999M Specification for General Requirements forAlloy and Stainless Steel PipeE92 Test Method for Vickers Hardness of Metallic Materials(Withdrawn 2010)4E213 Practice for Ultrasonic Testing of Metal Pipe andTubingE309 Practice for Eddy-Current Examination of Steel Tubu-lar Products Using Magnetic SaturationE381 Method of Macroetch Testing Steel Bars,Billets,Blooms,and ForgingsE527 Practice for Numbering Metals and Alloys in theUnified Numbering System(UNS)E570 Practice for Flux Leakage Examination of Ferromag-netic Steel Tubular Products2.2 ASME Standard:B36.10M Welded and Seamless Wrought Steel Pipe2.3 AWS Specifications5A5.5/A5.5M Specification for Low-Alloy Steel Electrodesfor Shielded Metal Arc WeldingA5.23/A5.23M Specification for Low-Alloy Steel Elec-trodes and Fluxes for Submerged Arc WeldingA5.28/A5.28M Specification for Low-Alloy Steel Elec-trodes for Gas Shielded Arc WeldingA5.29/A5.29M Low-Alloy Steel Electrodes for Flux CoredArc Welding1This specification is under the jurisdiction of ASTM Committee A01 on Steel,Stainless Steel and Related Alloys and is the direct responsibility of SubcommitteeA01.10 on Stainless and Alloy Steel Tubular Products.Current edition approved Sept.1,2015.Published October 2015.Originallyapproved in 1951.Last previous edition approved in 2015 as A335/A335M15.DOI:10.1520/A0335_A0335M-15A.2For ASME Boiler and Pressure Vessel Code applications see related Specifi-cation SA-335 in Section II of that Code.3For referenced ASTM standards,visit the ASTM website,www.astm.org,orcontact ASTM Customer Service at serviceastm.org.For Annual Book of ASTMStandards volume information,refer to the standards Document Summary page onthe ASTM website.4The last approved version of this historical standard is referenced onwww.astm.org.5Available from American Welding Society(AWS),550 NW LeJeune Rd.,Miami,FL 33126,http:/www.aws.org.*A Summary of Changes section appears at the end of this standardCopyright ASTM International,100 Barr Harbor Drive,PO Box C700,West Conshohocken,PA 19428-2959.United StatesCopyright by ASTM Intl(all rights reserved);Sat Nov 14 22:17:38 ESTABLE 1 Chemical RequirementsGradeUNSDesigna-tionAComposition,%CarbonMan-ganesePhos-phorus,maxSulfur,maxSiliconChromiumMolybde-numOthersP1K115220.100.200.300.800.0250.0250.100.50.0.440.65.P2K115470.100.200.300.610.0250.0250.100.300.500.810.440.65.P5K415450.15 max0.300.600.0250.0250.50 max4.006.000.450.65.P5bK515450.15 max0.300.600.0250.0251.002.004.006.000.450.65.P5cK412450.12 max0.300.600.0250.0250.50 max4.006.000.450.65.BP9S504000.15 max0.300.600.0250.0250.251.008.0010.000.901.10.P11K115970.050.150.300.600.0250.0250.501.001.001.500.440.65.P12K115620.050.150.300.610.0250.0250.50 max0.801.250.440.65.P15K115780.050.150.300.600.0250.0251.151.65.0.440.65.P21K315450.050.150.300.600.0250.0250.50 max2.653.350.801.06.P22K215900.050.150.300.600.0250.0250.50 max1.902.600.871.13
