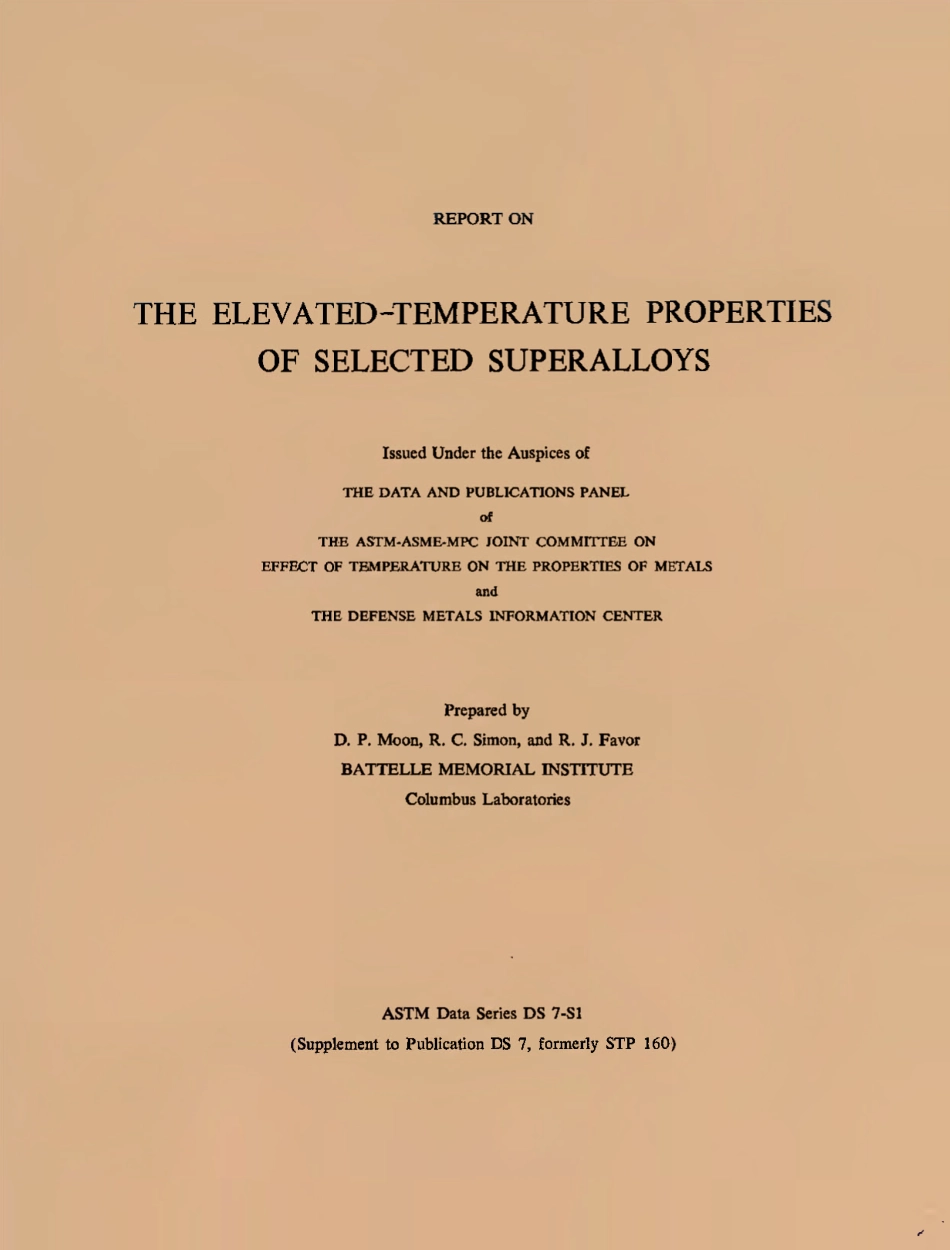

REPORT ON THE ELEVATED-TEMPERATURE PROPERTIES OF SELECTED SUPERALLOYS Issued Under the Auspices of THE DATA AND PUBLICATIONS PANEL of THE ASTM-ASME-MPC JOINT COMMITTEE ON EFFECT OF TEMPERATURE ON THE PROPERTIES OF METALS and THE DEFENSE METALS INFORMATION CENTER Prepared by D.P.Moon,R.C.Simon,and R.J.Favor BATTELLE MEMORIAL INSTITUTE Columbus Laboratories ASTM Data Series DS 7-S1(Supplement to Publication DS 7,formerly STP 160)Published by the AMERICAN SOCIETY FOR TESTING AND MATERIALS 1916 Race Street,Philadelphia,Pa.19103 DEDICATION The Data and Publications Panel wishes to dedicate this publication to Mr.Howard C.Cross,long-time secretary of the ASTM-ASME-MPC Joint Committee on Effect of Temperature on the Properties of Metals,in recognition of his service to the Panel and the Joint Committee and of his accomplishments in the field of high-temperature alloys.American Society for Testing and Materials 1968 Printed in Alpha,New Jersey July,1968 u CONTENTS(Note:for ease in locating individual alloys in this listing,alloys are arranged in increasing order of the numerical portion of the alloy designation,without regard to alphabetical prefixes or suffixes.)X-40 1 Castings Rene 41 19 Sheet(1400 F Age)Sheet and Plate(1650 F Age)Bars,Forgings,and Billets Castings WI-52 63 Castings IN-100 69 Castings MAR-M200 85 Castings GMR 235D 93 Castings Alloy M-252 99 Bars,Forgings,and Billets A-286 109 Sheet Bars and Forgings MAR-M302 133 Castings Alloy U-500 141 Bars,Forgings,and Billets L-605 153 Sheet Bars and Forgings Alloy 625 163 Bars ui Alloy U-700 173 Bars and Forgings Alloy 713C 183 Castings Alloy 718 213 Sheet(Annealed at 1750 F and Aged)Sheet and Plate(Annealed at 1950 F and Aged)Sheet(Cold Rolled and Aged)Bars,Forgings,and Billets(Annealed at 1750 F and Aged)Forgings(Annealed at 1950 F and Aged)Castings Alloy X-750 247 Sheet Bars Alloy 901 261 Bars,Forgings,and Billets D-979 279 Bars and Forgings Hastelloy X 293 Sheet and Plate Bars and Forgings TD-Nickel 305 Sheet Bars Waspaloy 321 Sheet Bars and Forgings References 347 SUPPLEMENTAL REPORT ON THE ELEVATED-TEMPERATURE PROPERTIES OF SELECTED SUPERALLOYS Issued Under the Auspices of The Data and Publications Panel of The ASTM-ASME-MPC Joint Committee on Effect of Temperature on the Properties of Metals and The Defense Metals Information Center Prepared by D.P.Moon,R.C.Simon,and R.J.Favor This compilation is a summary of the elevated-temperature mechanical-property data(with a very limited amount of low-temperature data)for 21 selected,commer-cially produced super-strength alloys.The effects of temperature on the tensile and creep-rupture properties of these alloys are presented in 196 figures.In addition,all primary data,together with chemical composition,heat treatment,and other pertinent information,are tabulated by lot.These data were collected through the combined efforts of the Data and Publica-tions Panel of the ASTM-ASME-MPC Joint Committee on Effect of Temperature on the Properties of Metals and the Defense Metals Information Center.This compilation is a supplement to ASTM Data Series Publication DS 7(formerly STP 160);it does not replace it.Since ASTM STP 160 was published in 1954,new data have become available for several of the alloys covered in the original publication.More im-portant,perhaps,many new super-strength alloys have been developed that have supplemented or even supplanted the alloys formerly used.As a con-sequence,a combined effort was conducted by the Data and Publications Panel of the ASTM-ASME-1 Information Operations Division,Battelle Memorial In-stitute,Columbus Laboratories MPC Joint Committee on Effect of Temperature on the Properties of Metals and the Defense Metals In-formation Center(DMIC)to collect,analyze,and present available data on the mechanical properties of selected super-strength alloys,as affected by tem-perature.For this purpose,a number of new,com-mercially produced alloys,as well as five alloys previously covered,were selected for inclusion in this compilation.For purpose of reference,the fol-lowing listed alloys are covered(as indicated by an X beneath the publication)either by Data Series Publications DS 7(formerly STP 160)or by this supplement (DS 7-S1):Alloy DS 7 DS 7-S1 16-25-6 X 19-9DL X Haynes Alloy No.21 X Discaloy 24 X Refractaloy 26 X X-40(Haynes Alloy No.31)X X Rene 41 X WI-52 X IN-100 X N-155 X MAR-M200 X GMR 235D X M-252 X X A-286 X X MAR-M302 X U-500 X S-590 X L-605(Haynes Alloy No.25)X X Alloy 625 X U-700 X Alloy 713C X Alloy 718 X Alloy X-750 i(Inconel X)X X S-816 X Alloy 901 X D-979 X Hastelloy X X TD-Nickel X Waspaloy X Both the Data and Publications Panel and DMIC have continuing programs to collect property data of metals.Data included in this supplement were obtained from the following sources:ABEX Corporation Aeronca Manufacturing Corp.Allegheny Ludlum Steel Corp.Allison Div.,General Motors Corp.Allvac Metals Company Cannon-Muskegon Corp.Individual data sheets may list obsolete designations for
