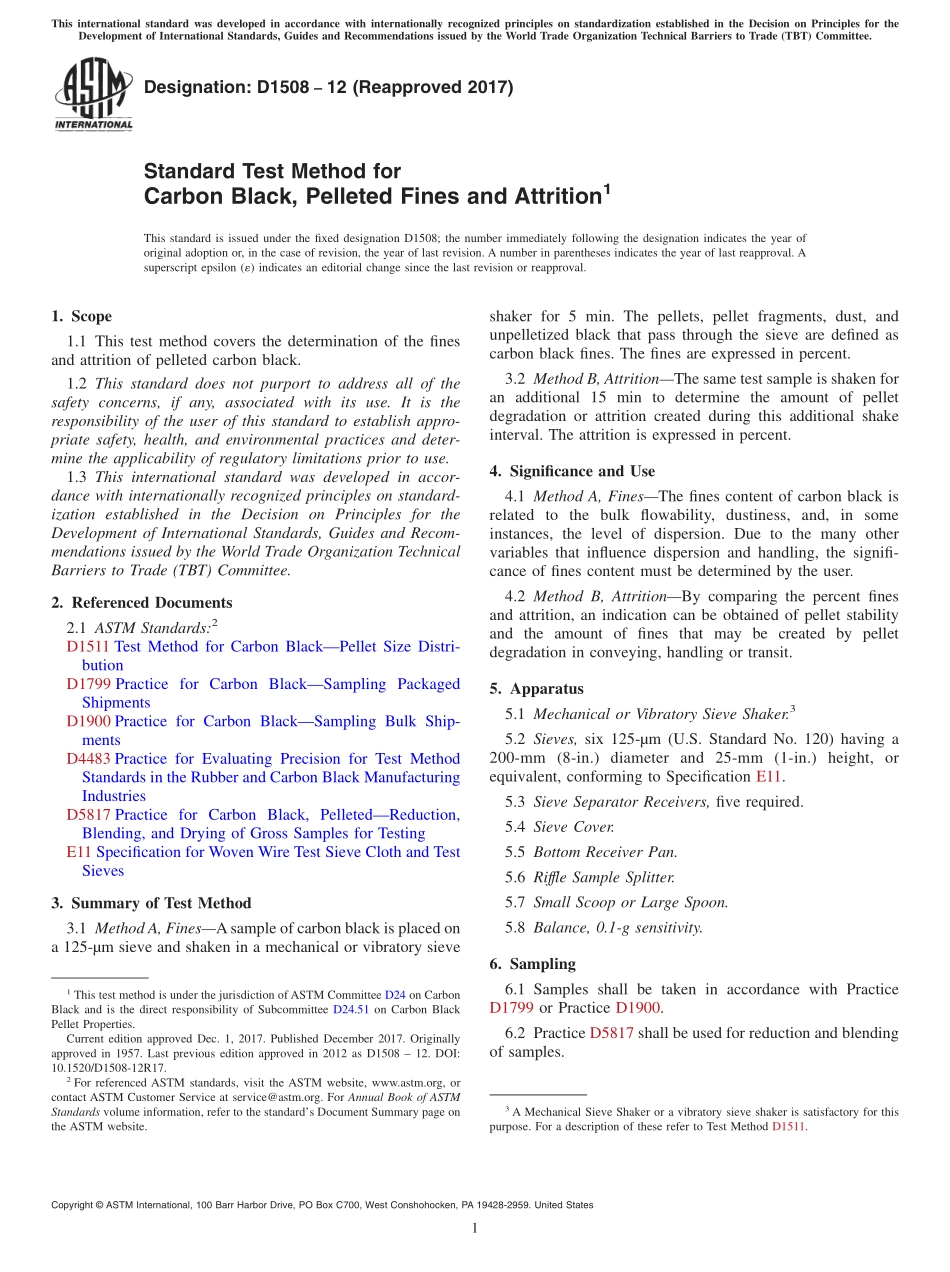

Designation:D150812(Reapproved 2017)Standard Test Method forCarbon Black,Pelleted Fines and Attrition1This standard is issued under the fixed designation D1508;the number immediately following the designation indicates the year oforiginal adoption or,in the case of revision,the year of last revision.A number in parentheses indicates the year of last reapproval.Asuperscript epsilon()indicates an editorial change since the last revision or reapproval.1.Scope1.1 This test method covers the determination of the finesand attrition of pelleted carbon black.1.2 This standard does not purport to address all of thesafety concerns,if any,associated with its use.It is theresponsibility of the user of this standard to establish appro-priate safety,health,and environmental practices and deter-mine the applicability of regulatory limitations prior to use.1.3 This international standard was developed in accor-dance with internationally recognized principles on standard-ization established in the Decision on Principles for theDevelopment of International Standards,Guides and Recom-mendations issued by the World Trade Organization TechnicalBarriers to Trade(TBT)Committee.2.Referenced Documents2.1 ASTM Standards:2D1511 Test Method for Carbon BlackPellet Size Distri-butionD1799 Practice for Carbon BlackSampling PackagedShipmentsD1900 Practice for Carbon BlackSampling Bulk Ship-mentsD4483 Practice for Evaluating Precision for Test MethodStandards in the Rubber and Carbon Black ManufacturingIndustriesD5817 Practice for Carbon Black,PelletedReduction,Blending,and Drying of Gross Samples for TestingE11 Specification for Woven Wire Test Sieve Cloth and TestSieves3.Summary of Test Method3.1 Method A,FinesAsample of carbon black is placed ona 125-m sieve and shaken in a mechanical or vibratory sieveshaker for 5 min.The pellets,pellet fragments,dust,andunpelletized black that pass through the sieve are defined ascarbon black fines.The fines are expressed in percent.3.2 Method B,AttritionThe same test sample is shaken foran additional 15 min to determine the amount of pelletdegradation or attrition created during this additional shakeinterval.The attrition is expressed in percent.4.Significance and Use4.1 Method A,FinesThe fines content of carbon black isrelated to the bulk flowability,dustiness,and,in someinstances,the level of dispersion.Due to the many othervariables that influence dispersion and handling,the signifi-cance of fines content must be determined by the user.4.2 Method B,AttritionBy comparing the percent finesand attrition,an indication can be obtained of pellet stabilityand the amount of fines that may be created by pelletdegradation in conveying,handling or transit.5.Apparatus5.1 Mechanical or Vibratory Sieve Shaker.35.2 Sieves,six 125-m(U.S.Standard No.120)having a200-mm(8-in.)diameter and 25-mm(1-in.)height,orequivalent,conforming to Specification E11.5.3 Sieve Separator Receivers,five required.5.4 Sieve Cover.5.5 Bottom Receiver Pan.5.6 Riffle Sample Splitter.5.7 Small Scoop or Large Spoon.5.8 Balance,0.1-g sensitivity.6.Sampling6.1 Samples shall be taken in accordance with PracticeD1799 or Practice D1900.6.2 Practice D5817 shall be used for reduction and blendingof samples.1This test method is under the jurisdiction of ASTM Committee D24 on CarbonBlack and is the direct responsibility of Subcommittee D24.51 on Carbon BlackPellet Properties.Current edition approved Dec.1,2017.Published December 2017.Originallyapproved in 1957.Last previous edition approved in 2012 as D1508 12.DOI:10.1520/D1508-12R17.2For referenced ASTM standards,visit the ASTM website,www.astm.org,orcontact ASTM Customer Service at serviceastm.org.For Annual Book of ASTMStandards volume information,refer to the standards Document Summary page onthe ASTM website.3A Mechanical Sieve Shaker or a vibratory sieve shaker is satisfactory for thispurpose.For a description of these refer to Test Method D1511.Copyright ASTM International,100 Barr Harbor Drive,PO Box C700,West Conshohocken,PA 19428-2959.United StatesThis international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for theDevelopment of International Standards,Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade(TBT)Committee.1 7.Procedure7.1 Method A,Fines and Method B,Attrition:7.1.1 Stack up to six sets of sieves and receivers with areceiver beneath each sieve.7.1.2 Weigh 25.0 g portions,being careful to dip approxi-mately 25 g of black from the riffle splitter.NOTE1It is not good practice to weigh the sample by pouring itdirectly out of the black container since the fines and smaller pellets willtend to remain in the container while the larger pellets pour out first.Dipping the black from the container is the preferred technique.7.1.3 Transfer each sample to an individual 125-m sieve.NOTE2Six different materials or samples may be tested when all sixsets of
