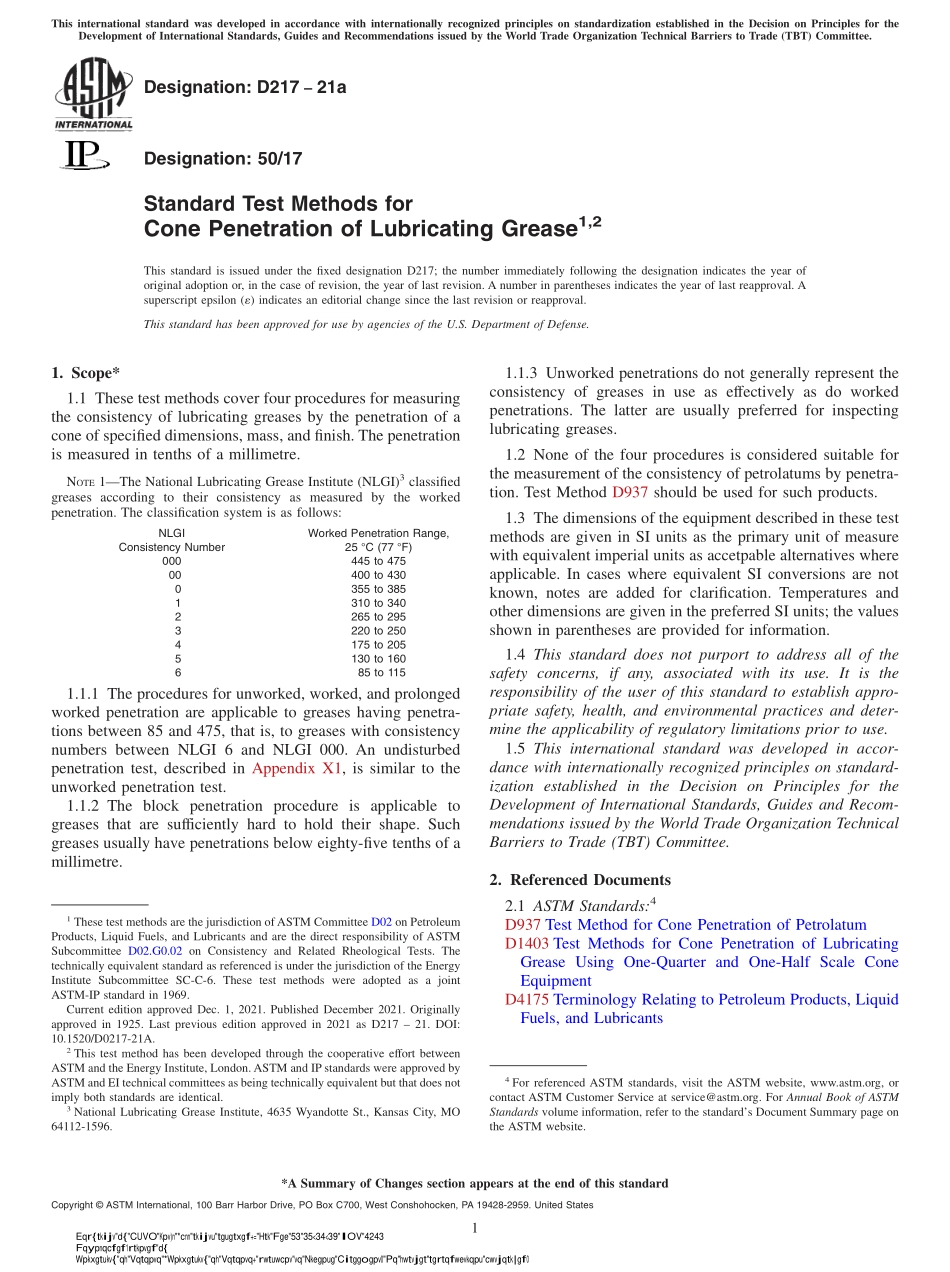

Designation:D21721aDesignation:50/17Standard Test Methods forCone Penetration of Lubricating Grease1,2This standard is issued under the fixed designation D217;the number immediately following the designation indicates the year oforiginal adoption or,in the case of revision,the year of last revision.A number in parentheses indicates the year of last reapproval.Asuperscript epsilon()indicates an editorial change since the last revision or reapproval.This standard has been approved for use by agencies of the U.S.Department of Defense.1.Scope*1.1 These test methods cover four procedures for measuringthe consistency of lubricating greases by the penetration of acone of specified dimensions,mass,and finish.The penetrationis measured in tenths of a millimetre.NOTE1The National Lubricating Grease Institute(NLGI)3classifiedgreases according to their consistency as measured by the workedpenetration.The classification system is as follows:NLGIConsistency NumberWorked Penetration Range,25 C(77 F)000445 to 47500400 to 4300355 to 3851310 to 3402265 to 2953220 to 2504175 to 2055130 to 160685 to 1151.1.1 The procedures for unworked,worked,and prolongedworked penetration are applicable to greases having penetra-tions between 85 and 475,that is,to greases with consistencynumbers between NLGI 6 and NLGI 000.An undisturbedpenetration test,described in Appendix X1,is similar to theunworked penetration test.1.1.2 The block penetration procedure is applicable togreases that are sufficiently hard to hold their shape.Suchgreases usually have penetrations below eighty-five tenths of amillimetre.1.1.3 Unworked penetrations do not generally represent theconsistency of greases in use as effectively as do workedpenetrations.The latter are usually preferred for inspectinglubricating greases.1.2 None of the four procedures is considered suitable forthe measurement of the consistency of petrolatums by penetra-tion.Test Method D937 should be used for such products.1.3 The dimensions of the equipment described in these testmethods are given in SI units as the primary unit of measurewith equivalent imperial units as accetpable alternatives whereapplicable.In cases where equivalent SI conversions are notknown,notes are added for clarification.Temperatures andother dimensions are given in the preferred SI units;the valuesshown in parentheses are provided for information.1.4 This standard does not purport to address all of thesafety concerns,if any,associated with its use.It is theresponsibility of the user of this standard to establish appro-priate safety,health,and environmental practices and deter-mine the applicability of regulatory limitations prior to use.1.5 This international standard was developed in accor-dance with internationally recognized principles on standard-ization established in the Decision on Principles for theDevelopment of International Standards,Guides and Recom-mendations issued by the World Trade Organization TechnicalBarriers to Trade(TBT)Committee.2.Referenced Documents2.1 ASTM Standards:4D937 Test Method for Cone Penetration of PetrolatumD1403 Test Methods for Cone Penetration of LubricatingGrease Using One-Quarter and One-Half Scale ConeEquipmentD4175 Terminology Relating to Petroleum Products,LiquidFuels,and Lubricants1These test methods are the jurisdiction ofASTM Committee D02 on PetroleumProducts,Liquid Fuels,and Lubricants and are the direct responsibility of ASTMSubcommittee D02.G0.02 on Consistency and Related Rheological Tests.Thetechnically equivalent standard as referenced is under the jurisdiction of the EnergyInstitute Subcommittee SC-C-6.These test methods were adopted as a jointASTM-IP standard in 1969.Current edition approved Dec.1,2021.Published December 2021.Originallyapproved in 1925.Last previous edition approved in 2021 as D217 21.DOI:10.1520/D0217-21A.2This test method has been developed through the cooperative effort betweenASTM and the Energy Institute,London.ASTM and IP standards were approved byASTM and EI technical committees as being technically equivalent but that does notimply both standards are identical.3National Lubricating Grease Institute,4635 Wyandotte St.,Kansas City,MO64112-1596.4For referenced ASTM standards,visit the ASTM website,www.astm.org,orcontact ASTM Customer Service at serviceastm.org.For Annual Book of ASTMStandards volume information,refer to the standards Document Summary page onthe ASTM website.*A Summary of Changes section appears at the end of this standardCopyright ASTM International,100 Barr Harbor Drive,PO Box C700,West Conshohocken,PA 19428-2959.United StatesThis international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for theDevelopment of International Standards,Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade(TBT)Committee.1?3.Terminology3.1 Definitions:3.1.1 For definitions of terms used in this test method,referto
