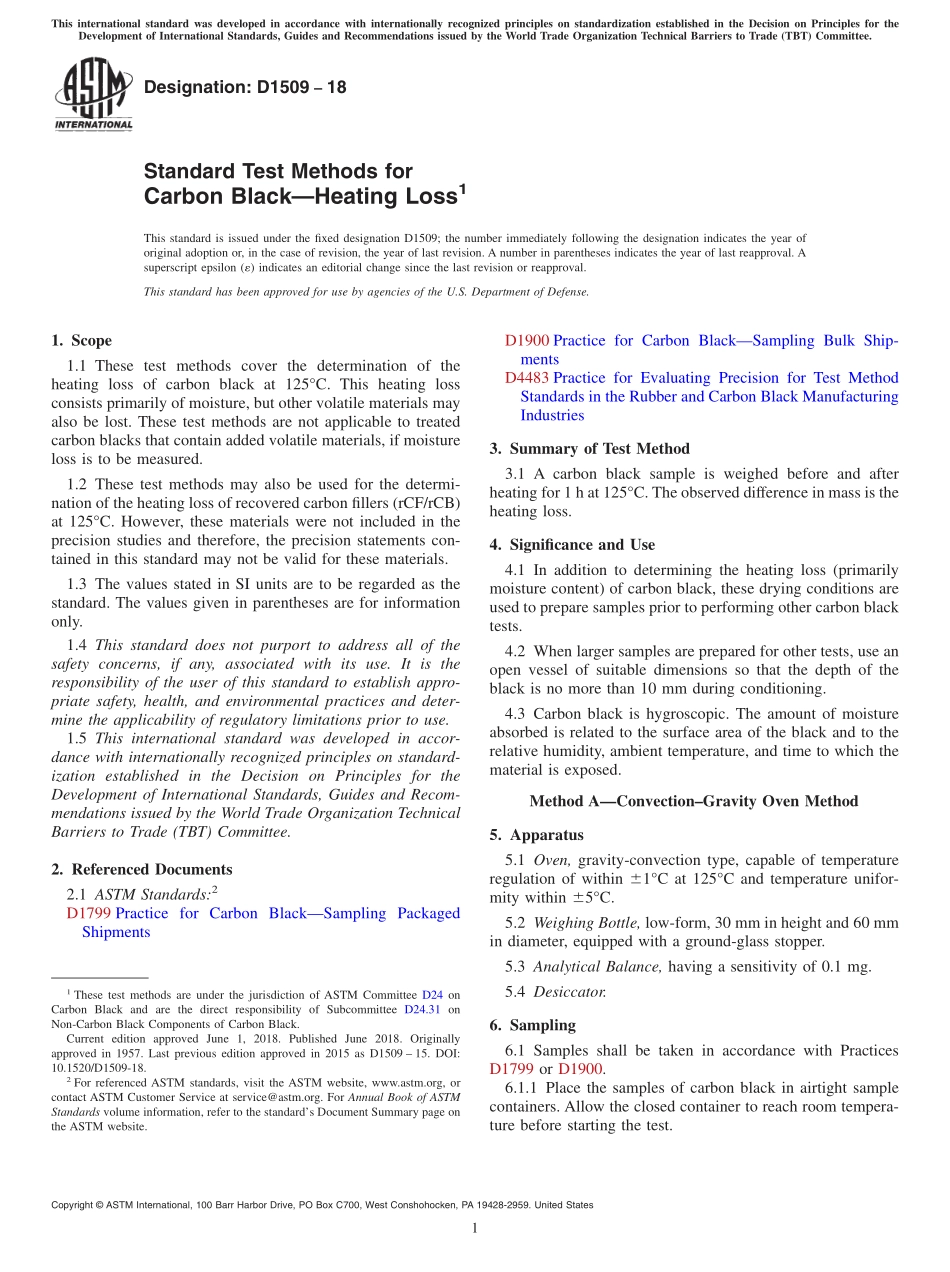

Designation:D150918Standard Test Methods forCarbon BlackHeating Loss1This standard is issued under the fixed designation D1509;the number immediately following the designation indicates the year oforiginal adoption or,in the case of revision,the year of last revision.A number in parentheses indicates the year of last reapproval.Asuperscript epsilon()indicates an editorial change since the last revision or reapproval.This standard has been approved for use by agencies of the U.S.Department of Defense.1.Scope1.1 These test methods cover the determination of theheating loss of carbon black at 125C.This heating lossconsists primarily of moisture,but other volatile materials mayalso be lost.These test methods are not applicable to treatedcarbon blacks that contain added volatile materials,if moistureloss is to be measured.1.2 These test methods may also be used for the determi-nation of the heating loss of recovered carbon fillers(rCF/rCB)at 125C.However,these materials were not included in theprecision studies and therefore,the precision statements con-tained in this standard may not be valid for these materials.1.3 The values stated in SI units are to be regarded as thestandard.The values given in parentheses are for informationonly.1.4 This standard does not purport to address all of thesafety concerns,if any,associated with its use.It is theresponsibility of the user of this standard to establish appro-priate safety,health,and environmental practices and deter-mine the applicability of regulatory limitations prior to use.1.5 This international standard was developed in accor-dance with internationally recognized principles on standard-ization established in the Decision on Principles for theDevelopment of International Standards,Guides and Recom-mendations issued by the World Trade Organization TechnicalBarriers to Trade(TBT)Committee.2.Referenced Documents2.1 ASTM Standards:2D1799 Practice for Carbon BlackSampling PackagedShipmentsD1900 Practice for Carbon BlackSampling Bulk Ship-mentsD4483 Practice for Evaluating Precision for Test MethodStandards in the Rubber and Carbon Black ManufacturingIndustries3.Summary of Test Method3.1 A carbon black sample is weighed before and afterheating for 1 h at 125C.The observed difference in mass is theheating loss.4.Significance and Use4.1 In addition to determining the heating loss(primarilymoisture content)of carbon black,these drying conditions areused to prepare samples prior to performing other carbon blacktests.4.2 When larger samples are prepared for other tests,use anopen vessel of suitable dimensions so that the depth of theblack is no more than 10 mm during conditioning.4.3 Carbon black is hygroscopic.The amount of moistureabsorbed is related to the surface area of the black and to therelative humidity,ambient temperature,and time to which thematerial is exposed.Method AConvectionGravity Oven Method5.Apparatus5.1 Oven,gravity-convection type,capable of temperatureregulation of within 61C at 125C and temperature unifor-mity within 65C.5.2 Weighing Bottle,low-form,30 mm in height and 60 mmin diameter,equipped with a ground-glass stopper.5.3 Analytical Balance,having a sensitivity of 0.1 mg.5.4 Desiccator.6.Sampling6.1 Samples shall be taken in accordance with PracticesD1799 or D1900.6.1.1 Place the samples of carbon black in airtight samplecontainers.Allow the closed container to reach room tempera-ture before starting the test.1These test methods are under the jurisdiction of ASTM Committee D24 onCarbon Black and are the direct responsibility of Subcommittee D24.31 onNon-Carbon Black Components of Carbon Black.Current edition approved June 1,2018.Published June 2018.Originallyapproved in 1957.Last previous edition approved in 2015 as D1509 15.DOI:10.1520/D1509-18.2For referenced ASTM standards,visit the ASTM website,www.astm.org,orcontact ASTM Customer Service at serviceastm.org.For Annual Book of ASTMStandards volume information,refer to the standards Document Summary page onthe ASTM website.Copyright ASTM International,100 Barr Harbor Drive,PO Box C700,West Conshohocken,PA 19428-2959.United StatesThis international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for theDevelopment of International Standards,Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade(TBT)Committee.1 7.Procedure7.1 Dry the weighing bottle and the stopper,with thestopper removed,in the specified oven set at 125C for 30 min.Place the bottle and stopper in the desiccator and allow to coolto room temperature.Weigh the bottle with stopper to thenearest 0.1 mg.7.2 Weigh 2 g of carbon black into the weighing bottle to thenearest 0.1 mg.7.3 Place the weighing bottle,sample,and stopper in thespecified oven set at 125C for 1 h with the stopper removed.7.4 Replace the stopper and transfer the bottle and contentsto the desiccator.Remove the stopper and allow to cool
