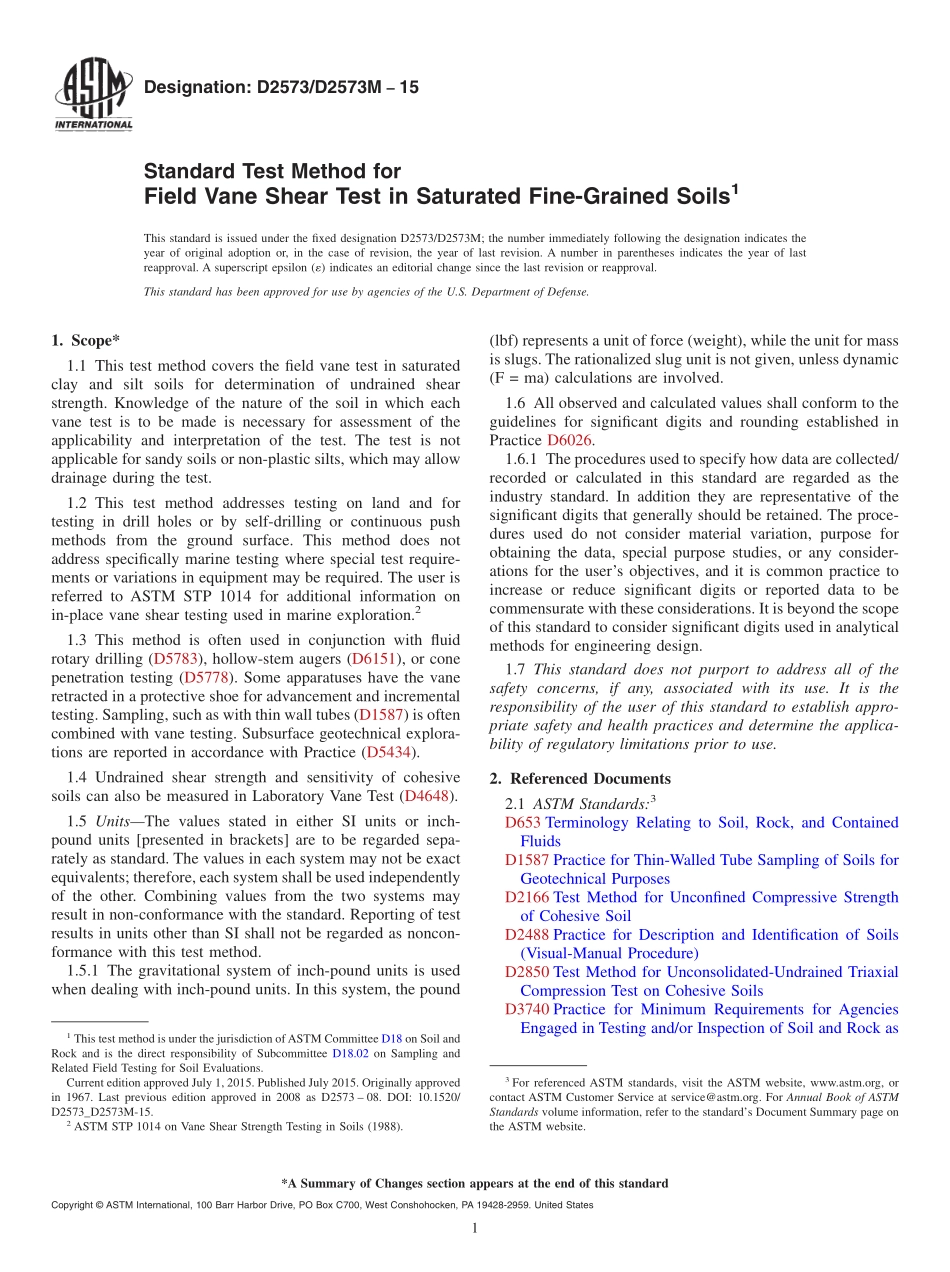

Designation:D2573/D2573M15Standard Test Method forField Vane Shear Test in Saturated Fine-Grained Soils1This standard is issued under the fixed designation D2573/D2573M;the number immediately following the designation indicates theyear of original adoption or,in the case of revision,the year of last revision.A number in parentheses indicates the year of lastreapproval.A superscript epsilon()indicates an editorial change since the last revision or reapproval.This standard has been approved for use by agencies of the U.S.Department of Defense.1.Scope*1.1 This test method covers the field vane test in saturatedclay and silt soils for determination of undrained shearstrength.Knowledge of the nature of the soil in which eachvane test is to be made is necessary for assessment of theapplicability and interpretation of the test.The test is notapplicable for sandy soils or non-plastic silts,which may allowdrainage during the test.1.2 This test method addresses testing on land and fortesting in drill holes or by self-drilling or continuous pushmethods from the ground surface.This method does notaddress specifically marine testing where special test require-ments or variations in equipment may be required.The user isreferred to ASTM STP 1014 for additional information onin-place vane shear testing used in marine exploration.21.3 This method is often used in conjunction with fluidrotary drilling(D5783),hollow-stem augers(D6151),or conepenetration testing(D5778).Some apparatuses have the vaneretracted in a protective shoe for advancement and incrementaltesting.Sampling,such as with thin wall tubes(D1587)is oftencombined with vane testing.Subsurface geotechnical explora-tions are reported in accordance with Practice(D5434).1.4 Undrained shear strength and sensitivity of cohesivesoils can also be measured in Laboratory Vane Test(D4648).1.5 UnitsThe values stated in either SI units or inch-pound units presented in brackets are to be regarded sepa-rately as standard.The values in each system may not be exactequivalents;therefore,each system shall be used independentlyof the other.Combining values from the two systems mayresult in non-conformance with the standard.Reporting of testresults in units other than SI shall not be regarded as noncon-formance with this test method.1.5.1 The gravitational system of inch-pound units is usedwhen dealing with inch-pound units.In this system,the pound(lbf)represents a unit of force(weight),while the unit for massis slugs.The rationalized slug unit is not given,unless dynamic(F=ma)calculations are involved.1.6 All observed and calculated values shall conform to theguidelines for significant digits and rounding established inPractice D6026.1.6.1 The procedures used to specify how data are collected/recorded or calculated in this standard are regarded as theindustry standard.In addition they are representative of thesignificant digits that generally should be retained.The proce-dures used do not consider material variation,purpose forobtaining the data,special purpose studies,or any consider-ations for the users objectives,and it is common practice toincrease or reduce significant digits or reported data to becommensurate with these considerations.It is beyond the scopeof this standard to consider significant digits used in analyticalmethods for engineering design.1.7 This standard does not purport to address all of thesafety concerns,if any,associated with its use.It is theresponsibility of the user of this standard to establish appro-priate safety and health practices and determine the applica-bility of regulatory limitations prior to use.2.Referenced Documents2.1 ASTM Standards:3D653 Terminology Relating to Soil,Rock,and ContainedFluidsD1587 Practice for Thin-Walled Tube Sampling of Soils forGeotechnical PurposesD2166 Test Method for Unconfined Compressive Strengthof Cohesive SoilD2488 Practice for Description and Identification of Soils(Visual-Manual Procedure)D2850 Test Method for Unconsolidated-Undrained TriaxialCompression Test on Cohesive SoilsD3740 Practice for Minimum Requirements for AgenciesEngaged in Testing and/or Inspection of Soil and Rock as1This test method is under the jurisdiction ofASTM Committee D18 on Soil andRock and is the direct responsibility of Subcommittee D18.02 on Sampling andRelated Field Testing for Soil Evaluations.Current edition approved July 1,2015.Published July 2015.Originally approvedin 1967.Last previous edition approved in 2008 as D2573 08.DOI:10.1520/D2573_D2573M-15.2ASTM STP 1014 on Vane Shear Strength Testing in Soils(1988).3For referenced ASTM standards,visit the ASTM website,www.astm.org,orcontact ASTM Customer Service at serviceastm.org.For Annual Book of ASTMStandards volume information,refer to the standards Document Summary page onthe ASTM website.*A Summary of Changes section appears at the end of this standardCopyright ASTM International,100 Barr Harbor Drive,PO Box C700,West Conshohocken,PA 19428-2959.United States1 Used in Engineering D
