ASTM_D_3186_-_07_2021.pdf

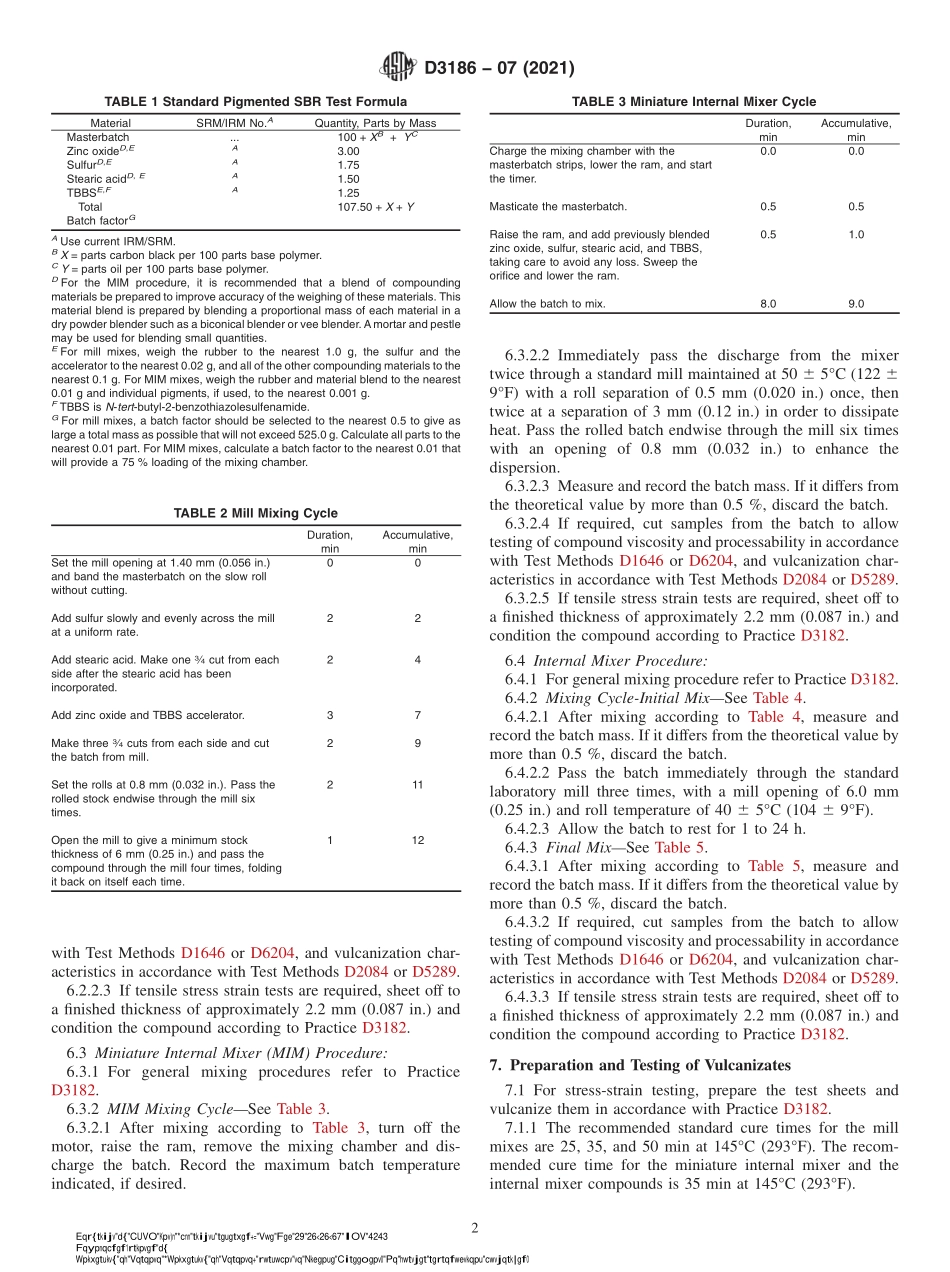

Designation:D318607(Reapproved 2021)Standard Test Methods forRubberEvaluation of SBR(Styrene-Butadiene Rubber)Mixed With Carbon Black or Carbon Black and Oil1This standard is issued under the fixed designation D3186;the number immediately following the designation indicates the year oforiginal adoption or,in the case of revision,the year of last revision.A number in parentheses indicates the year of last reapproval.Asuperscript epsilon()indicates an editorial change since the last revision or reapproval.1.Scope1.1 These test methods cover the standard materials,testformula,mixing procedures,and test methods for the evalua-tion and production control of pigmented types of styrene-butadiene rubbers(SBR).This includes the pigmented SBR oilmasterbatches.1.2 The values stated in SI units are to be regarded as thestandard.The values given in parentheses are for informationonly.1.3 This standard does not purport to address all of thesafety concerns,if any,associated with its use.It is theresponsibility of the user of this standard to establish appro-priate safety,health,and environmental practices and deter-mine the applicability of regulatory limitations prior to use.1.4 This international standard was developed in accor-dance with internationally recognized principles on standard-ization established in the Decision on Principles for theDevelopment of International Standards,Guides and Recom-mendations issued by the World Trade Organization TechnicalBarriers to Trade(TBT)Committee.2.Referenced Documents2.1 ASTM Standards:2D412 Test Methods for Vulcanized Rubber and Thermoplas-tic ElastomersTensionD1646 TestMethodsforRubberViscosity,StressRelaxation,andPre-VulcanizationCharacteristics(Mooney Viscometer)D2084 Test Method for Rubber PropertyVulcanizationUsing Oscillating Disk Cure MeterD3182 Practice for RubberMaterials,Equipment,and Pro-cedures for Mixing Standard Compounds and PreparingStandard Vulcanized SheetsD3896 Practice for Rubber From Synthetic SourcesSamplingD4483 Practice for Evaluating Precision for Test MethodStandards in the Rubber and Carbon Black ManufacturingIndustriesD5289 Test Method for Rubber PropertyVulcanizationUsing Rotorless Cure MetersD6204 Test Method for RubberMeasurement of Unvulca-nized Rheological Properties Using Rotorless Shear Rhe-ometers3.Significance and Use3.1 These test methods are intended mainly for refereepurposes but may be used for quality control of masterbatchproduction.They may also be used in research and develop-ment work and for comparison of different rubber samples in astandard formula.3.2 These test methods may also be used to obtain values forcustomer acceptance of rubber.4.Standard Test Formula4.1 Standard FormulaSee Table 1.5.Sample Preparation5.1 Obtain and prepare the test samples in accordance withPractice D3896.6.Mixing Procedures6.1 The compound may be prepared either on a mill,miniature internal mixer,or laboratory internal mixer,althoughslightly different results may be obtained.6.2 Mill Mix Procedure:6.2.1 For general mixing procedures,refer to PracticeD3182.6.2.2 Mill Mixing CycleSee Table 2.6.2.2.1 After mixing according to Table 2,measure andrecord the batch mass.If it differs from the theoretical value bymore than 0.5%,discard the batch.6.2.2.2 If required,cut samples from the batch to allowtesting of compound viscosity and processability in accordance1These test methods are under the jurisdiction of ASTM Committee D11 onRubber and Rubber-like Materials and are the direct responsibility of SubcommitteeD11.23 on Synthetic Rubbers.Current edition approved Nov.1,2021.Published November 2021.Originallyapproved in 1981.Last previous edition approved in 2016 as D3186 07(2016).DOI:10.1520/D3186-07R21.2For referenced ASTM standards,visit the ASTM website,www.astm.org,orcontact ASTM Customer Service at serviceastm.org.For Annual Book of ASTMStandards volume information,refer to the standards Document Summary page onthe ASTM website.Copyright ASTM International,100 Barr Harbor Drive,PO Box C700,West Conshohocken,PA 19428-2959.United StatesThis international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for theDevelopment of International Standards,Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade(TBT)Committee.1?with Test Methods D1646 or D6204,and vulcanization char-acteristics in accordance with Test Methods D2084 or D5289.6.2.2.3 If tensile stress strain tests are required,sheet off toa finished thickness of approximately 2.2 mm(0.087 in.)andcondition the compound according to Practice D3182.6.3 Miniature Internal Mixer(MIM)Procedure:6.3.1 For general mixing procedures refer to PracticeD3182.6.3.2 MIM Mixing CycleSee Table 3.6.3.2.1 After mixing according to Table 3,turn off themotor,raise the ram,remove the mixing chamber and dis-charge the batch.Record the maximum batch temperatureindicated,if desired.6.3.2.2 Immediate
