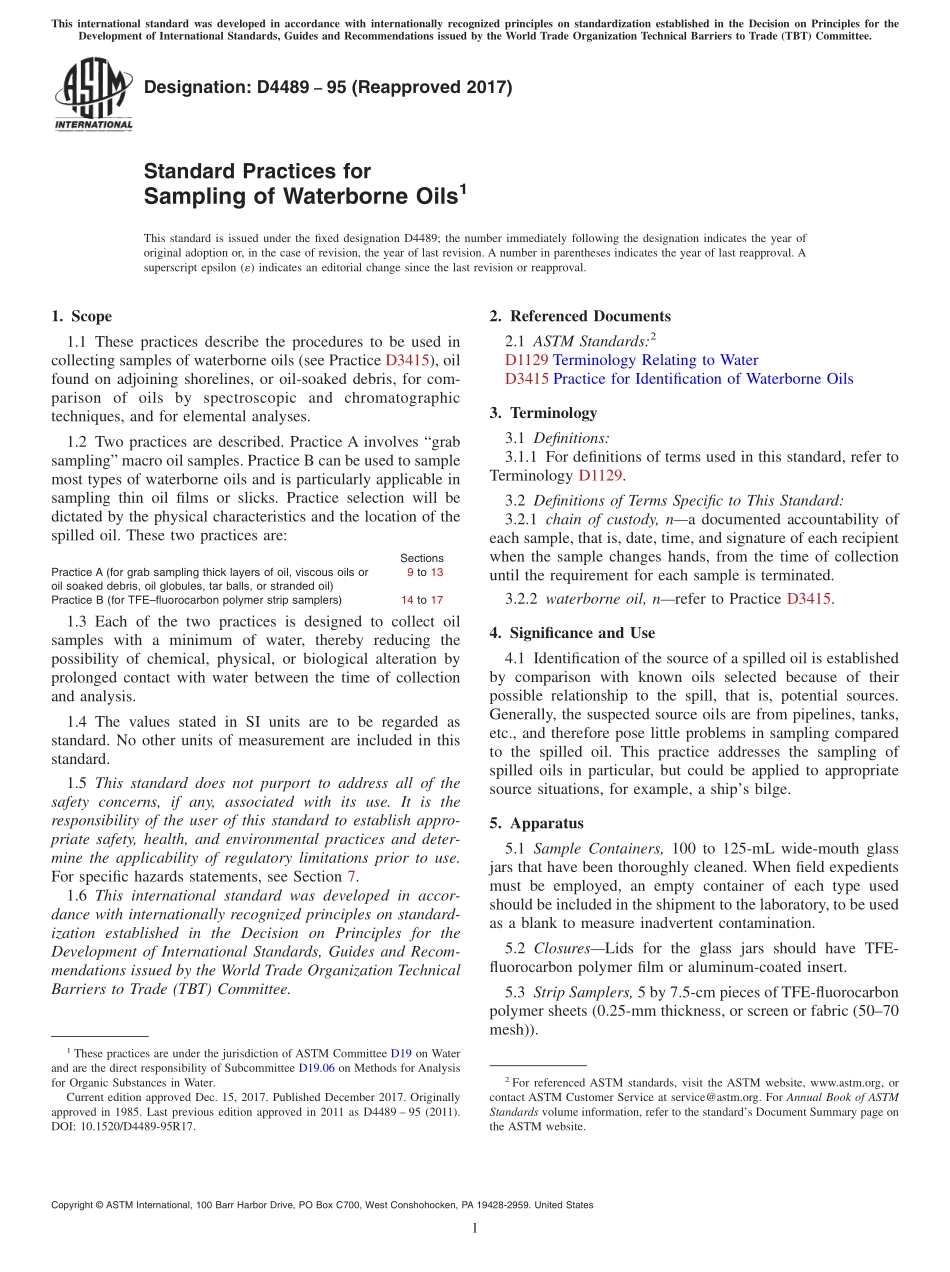

Designation:D448995(Reapproved 2017)Standard Practices forSampling of Waterborne Oils1This standard is issued under the fixed designation D4489;the number immediately following the designation indicates the year oforiginal adoption or,in the case of revision,the year of last revision.A number in parentheses indicates the year of last reapproval.Asuperscript epsilon()indicates an editorial change since the last revision or reapproval.1.Scope1.1 These practices describe the procedures to be used incollecting samples of waterborne oils(see Practice D3415),oilfound on adjoining shorelines,or oil-soaked debris,for com-parison of oils by spectroscopic and chromatographictechniques,and for elemental analyses.1.2 Two practices are described.Practice A involves“grabsampling”macro oil samples.Practice B can be used to samplemost types of waterborne oils and is particularly applicable insampling thin oil films or slicks.Practice selection will bedictated by the physical characteristics and the location of thespilled oil.These two practices are:SectionsPractice A(for grab sampling thick layers of oil,viscous oils oroil soaked debris,oil globules,tar balls,or stranded oil)9 to 13Practice B(for TFEfluorocarbon polymer strip samplers)14 to 171.3 Each of the two practices is designed to collect oilsamples with a minimum of water,thereby reducing thepossibility of chemical,physical,or biological alteration byprolonged contact with water between the time of collectionand analysis.1.4 The values stated in SI units are to be regarded asstandard.No other units of measurement are included in thisstandard.1.5 This standard does not purport to address all of thesafety concerns,if any,associated with its use.It is theresponsibility of the user of this standard to establish appro-priate safety,health,and environmental practices and deter-mine the applicability of regulatory limitations prior to use.For specific hazards statements,see Section 7.1.6 This international standard was developed in accor-dance with internationally recognized principles on standard-ization established in the Decision on Principles for theDevelopment of International Standards,Guides and Recom-mendations issued by the World Trade Organization TechnicalBarriers to Trade(TBT)Committee.2.Referenced Documents2.1 ASTM Standards:2D1129 Terminology Relating to WaterD3415 Practice for Identification of Waterborne Oils3.Terminology3.1 Definitions:3.1.1 For definitions of terms used in this standard,refer toTerminology D1129.3.2 Definitions of Terms Specific to This Standard:3.2.1 chain of custody,na documented accountability ofeach sample,that is,date,time,and signature of each recipientwhen the sample changes hands,from the time of collectionuntil the requirement for each sample is terminated.3.2.2 waterborne oil,nrefer to Practice D3415.4.Significance and Use4.1 Identification of the source of a spilled oil is establishedby comparison with known oils selected because of theirpossible relationship to the spill,that is,potential sources.Generally,the suspected source oils are from pipelines,tanks,etc.,and therefore pose little problems in sampling comparedto the spilled oil.This practice addresses the sampling ofspilled oils in particular,but could be applied to appropriatesource situations,for example,a ships bilge.5.Apparatus5.1 Sample Containers,100 to 125-mL wide-mouth glassjars that have been thoroughly cleaned.When field expedientsmust be employed,an empty container of each type usedshould be included in the shipment to the laboratory,to be usedas a blank to measure inadvertent contamination.5.2 ClosuresLids for the glass jars should have TFE-fluorocarbon polymer film or aluminum-coated insert.5.3 Strip Samplers,5 by 7.5-cm pieces of TFE-fluorocarbonpolymer sheets(0.25-mm thickness,or screen or fabric(5070mesh).1These practices are under the jurisdiction of ASTM Committee D19 on Waterand are the direct responsibility of Subcommittee D19.06 on Methods for Analysisfor Organic Substances in Water.Current edition approved Dec.15,2017.Published December 2017.Originallyapproved in 1985.Last previous edition approved in 2011 as D4489 95(2011).DOI:10.1520/D4489-95R17.2For referenced ASTM standards,visit the ASTM website,www.astm.org,orcontact ASTM Customer Service at serviceastm.org.For Annual Book of ASTMStandards volume information,refer to the standards Document Summary page onthe ASTM website.Copyright ASTM International,100 Barr Harbor Drive,PO Box C700,West Conshohocken,PA 19428-2959.United StatesThis international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for theDevelopment of International Standards,Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade(TBT)Committee.1 5.4 Wooden Tongue Depressor.5.5 TFE-Fluorocarbon Polymer Net Sampling Kit.36.Reagents6.1 High Purity Solvents,4that must be used for rinsingsamplers and sample
