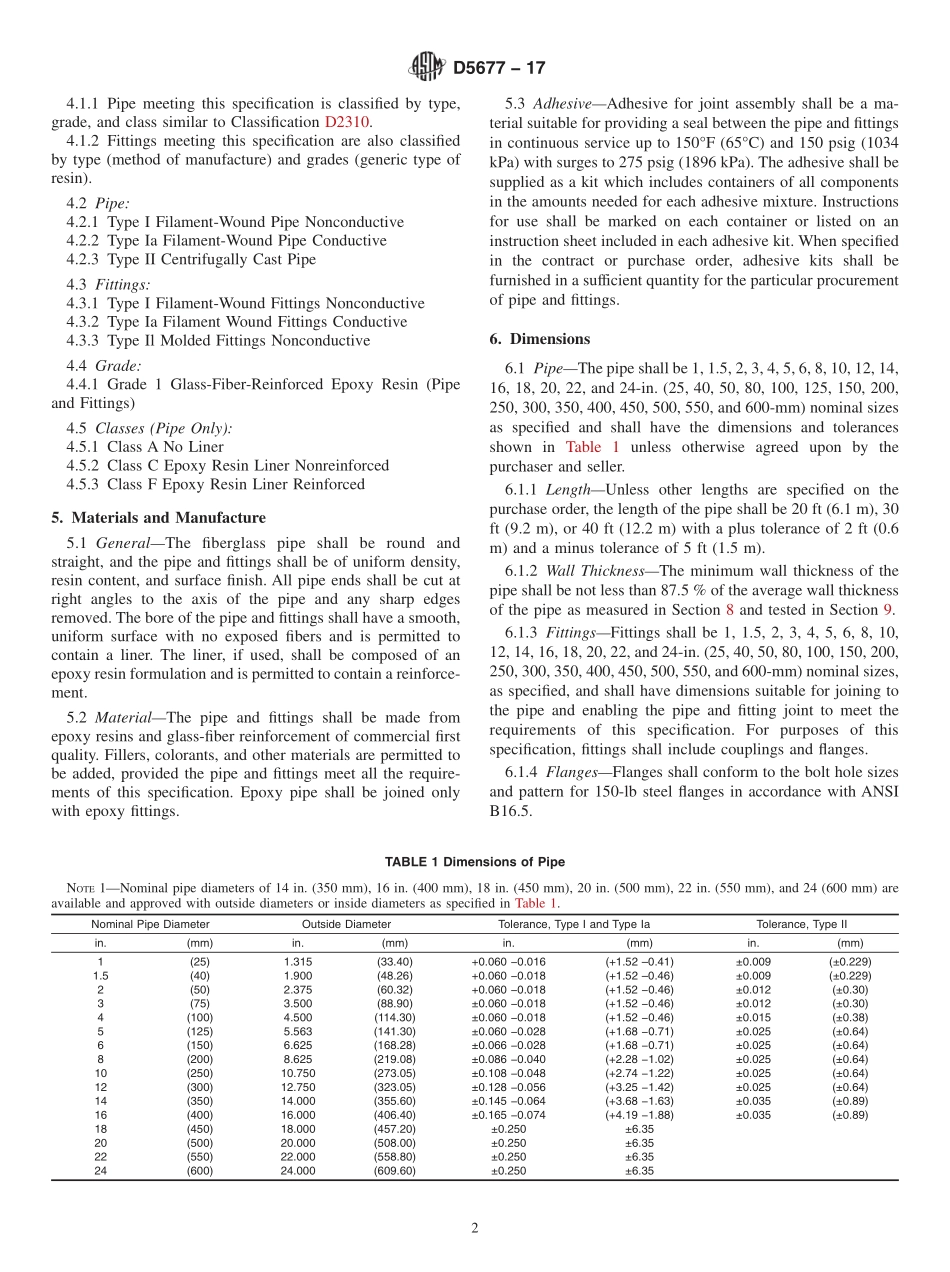

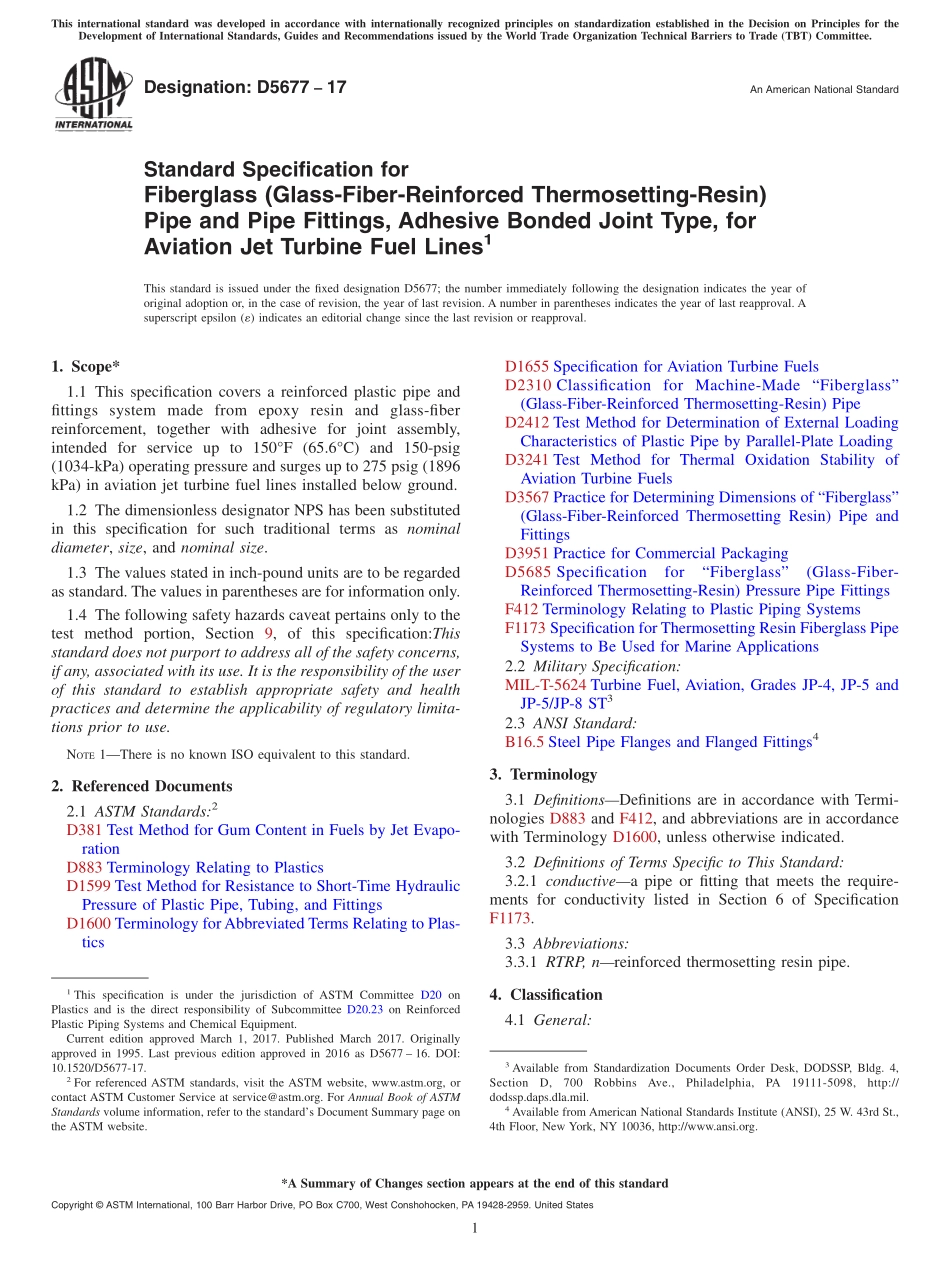

Designation:D567717An American National StandardStandard Specification forFiberglass(Glass-Fiber-Reinforced Thermosetting-Resin)Pipe and Pipe Fittings,Adhesive Bonded Joint Type,forAviation Jet Turbine Fuel Lines1This standard is issued under the fixed designation D5677;the number immediately following the designation indicates the year oforiginal adoption or,in the case of revision,the year of last revision.A number in parentheses indicates the year of last reapproval.Asuperscript epsilon()indicates an editorial change since the last revision or reapproval.1.Scope*1.1 This specification covers a reinforced plastic pipe andfittings system made from epoxy resin and glass-fiberreinforcement,together with adhesive for joint assembly,intended for service up to 150F(65.6C)and 150-psig(1034-kPa)operating pressure and surges up to 275 psig(1896kPa)in aviation jet turbine fuel lines installed below ground.1.2 The dimensionless designator NPS has been substitutedin this specification for such traditional terms as nominaldiameter,size,and nominal size.1.3 The values stated in inch-pound units are to be regardedas standard.The values in parentheses are for information only.1.4 The following safety hazards caveat pertains only to thetest method portion,Section 9,of this specification:Thisstandard does not purport to address all of the safety concerns,if any,associated with its use.It is the responsibility of the userof this standard to establish appropriate safety and healthpractices and determine the applicability of regulatory limita-tions prior to use.NOTE1There is no known ISO equivalent to this standard.2.Referenced Documents2.1 ASTM Standards:2D381 Test Method for Gum Content in Fuels by Jet Evapo-rationD883 Terminology Relating to PlasticsD1599 Test Method for Resistance to Short-Time HydraulicPressure of Plastic Pipe,Tubing,and FittingsD1600 Terminology forAbbreviated Terms Relating to Plas-ticsD1655 Specification for Aviation Turbine FuelsD2310 Classification for Machine-Made“Fiberglass”(Glass-Fiber-Reinforced Thermosetting-Resin)PipeD2412 Test Method for Determination of External LoadingCharacteristics of Plastic Pipe by Parallel-Plate LoadingD3241 Test Method for Thermal Oxidation Stability ofAviation Turbine FuelsD3567 Practice for Determining Dimensions of“Fiberglass”(Glass-Fiber-Reinforced Thermosetting Resin)Pipe andFittingsD3951 Practice for Commercial PackagingD5685 Specificationfor“Fiberglass”(Glass-Fiber-Reinforced Thermosetting-Resin)Pressure Pipe FittingsF412 Terminology Relating to Plastic Piping SystemsF1173 Specification for Thermosetting Resin Fiberglass PipeSystems to Be Used for Marine Applications2.2 Military Specification:MIL-T-5624 Turbine Fuel,Aviation,Grades JP-4,JP-5 andJP-5/JP-8 ST32.3 ANSI Standard:B16.5 Steel Pipe Flanges and Flanged Fittings43.Terminology3.1 DefinitionsDefinitions are in accordance with Termi-nologies D883 and F412,and abbreviations are in accordancewith Terminology D1600,unless otherwise indicated.3.2 Definitions of Terms Specific to This Standard:3.2.1 conductivea pipe or fitting that meets the require-ments for conductivity listed in Section 6 of SpecificationF1173.3.3 Abbreviations:3.3.1 RTRP,nreinforced thermosetting resin pipe.4.Classification4.1 General:1This specification is under the jurisdiction of ASTM Committee D20 onPlastics and is the direct responsibility of Subcommittee D20.23 on ReinforcedPlastic Piping Systems and Chemical Equipment.Current edition approved March 1,2017.Published March 2017.Originallyapproved in 1995.Last previous edition approved in 2016 as D5677 16.DOI:10.1520/D5677-17.2For referenced ASTM standards,visit the ASTM website,www.astm.org,orcontact ASTM Customer Service at serviceastm.org.For Annual Book of ASTMStandards volume information,refer to the standards Document Summary page onthe ASTM website.3Available from Standardization Documents Order Desk,DODSSP,Bldg.4,SectionD,700RobbinsAve.,Philadelphia,PA19111-5098,http:/dodssp.daps.dla.mil.4Available from American National Standards Institute(ANSI),25 W.43rd St.,4th Floor,New York,NY 10036,http:/www.ansi.org.*A Summary of Changes section appears at the end of this standardCopyright ASTM International,100 Barr Harbor Drive,PO Box C700,West Conshohocken,PA 19428-2959.United StatesThis international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for theDevelopment of International Standards,Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade(TBT)Committee.1 4.1.1 Pipe meeting this specification is classified by type,grade,and class similar to Classification D2310.4.1.2 Fittings meeting this specification are also classifiedby type(method of manufacture)and grades(generic type ofresin).4.2 Pipe:4.2.1 Type I Filament-Wound Pipe Nonconductive4.2.2 Type Ia Filament-Wound Pipe Conductive4.2.3 Type II Centrifugally Cast Pipe4.3 Fittings:4.3.1 Type I Filame
