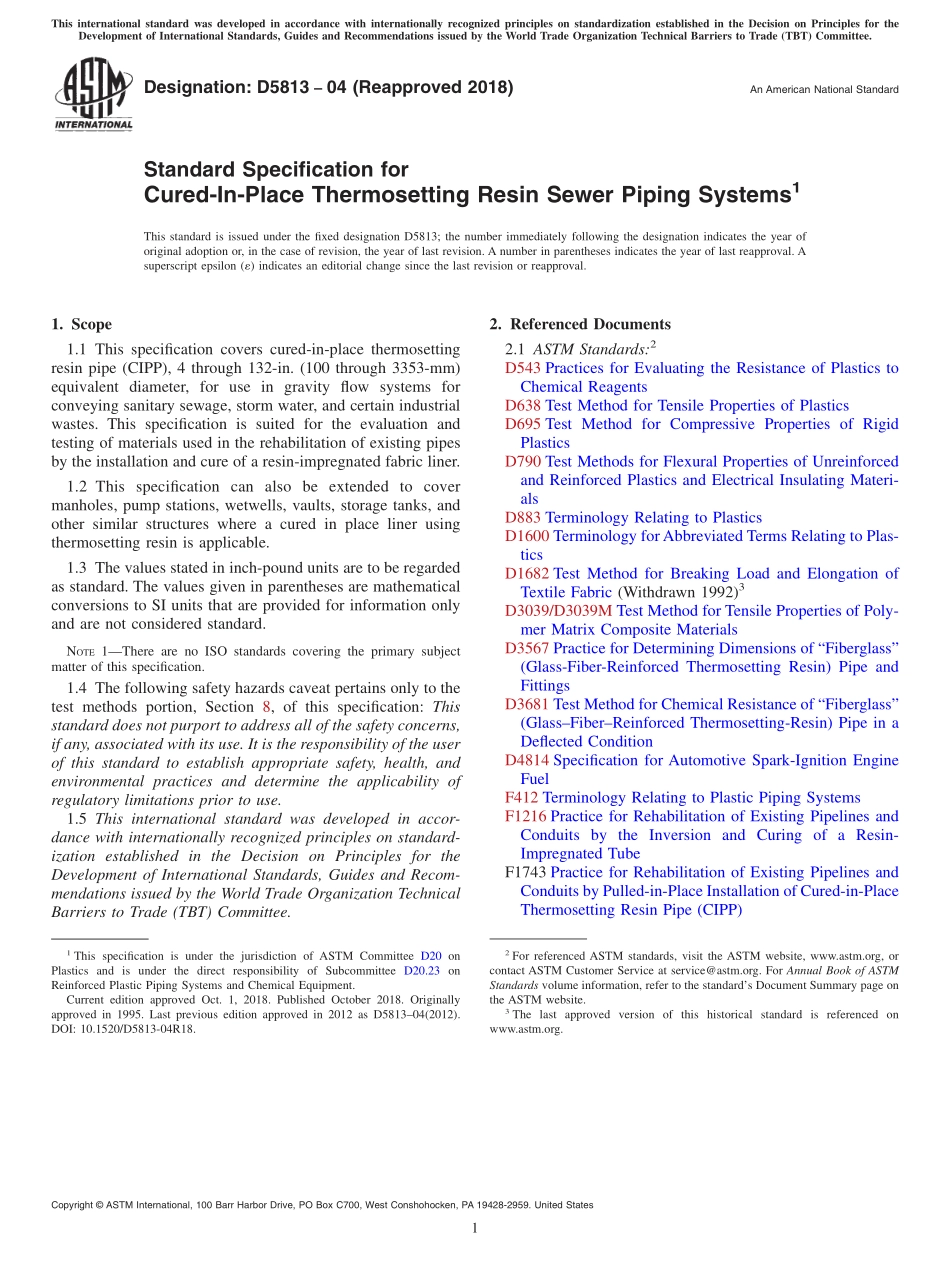

Designation:D581304(Reapproved 2018)An American National StandardStandard Specification forCured-In-Place Thermosetting Resin Sewer Piping Systems1This standard is issued under the fixed designation D5813;the number immediately following the designation indicates the year oforiginal adoption or,in the case of revision,the year of last revision.A number in parentheses indicates the year of last reapproval.Asuperscript epsilon()indicates an editorial change since the last revision or reapproval.1.Scope1.1 This specification covers cured-in-place thermosettingresin pipe(CIPP),4 through 132-in.(100 through 3353-mm)equivalent diameter,for use in gravity flow systems forconveying sanitary sewage,storm water,and certain industrialwastes.This specification is suited for the evaluation andtesting of materials used in the rehabilitation of existing pipesby the installation and cure of a resin-impregnated fabric liner.1.2 This specification can also be extended to covermanholes,pump stations,wetwells,vaults,storage tanks,andother similar structures where a cured in place liner usingthermosetting resin is applicable.1.3 The values stated in inch-pound units are to be regardedas standard.The values given in parentheses are mathematicalconversions to SI units that are provided for information onlyand are not considered standard.NOTE1There are no ISO standards covering the primary subjectmatter of this specification.1.4 The following safety hazards caveat pertains only to thetest methods portion,Section 8,of this specification:Thisstandard does not purport to address all of the safety concerns,if any,associated with its use.It is the responsibility of the userof this standard to establish appropriate safety,health,andenvironmental practices and determine the applicability ofregulatory limitations prior to use.1.5 This international standard was developed in accor-dance with internationally recognized principles on standard-ization established in the Decision on Principles for theDevelopment of International Standards,Guides and Recom-mendations issued by the World Trade Organization TechnicalBarriers to Trade(TBT)Committee.2.Referenced Documents2.1 ASTM Standards:2D543 Practices for Evaluating the Resistance of Plastics toChemical ReagentsD638 Test Method for Tensile Properties of PlasticsD695 Test Method for Compressive Properties of RigidPlasticsD790 Test Methods for Flexural Properties of Unreinforcedand Reinforced Plastics and Electrical Insulating Materi-alsD883 Terminology Relating to PlasticsD1600 Terminology forAbbreviated Terms Relating to Plas-ticsD1682 Test Method for Breaking Load and Elongation ofTextile Fabric(Withdrawn 1992)3D3039/D3039M Test Method for Tensile Properties of Poly-mer Matrix Composite MaterialsD3567 Practice for Determining Dimensions of“Fiberglass”(Glass-Fiber-Reinforced Thermosetting Resin)Pipe andFittingsD3681 Test Method for Chemical Resistance of“Fiberglass”(GlassFiberReinforced Thermosetting-Resin)Pipe in aDeflected ConditionD4814 Specification for Automotive Spark-Ignition EngineFuelF412 Terminology Relating to Plastic Piping SystemsF1216 Practice for Rehabilitation of Existing Pipelines andConduits by the Inversion and Curing of a Resin-Impregnated TubeF1743 Practice for Rehabilitation of Existing Pipelines andConduits by Pulled-in-Place Installation of Cured-in-PlaceThermosetting Resin Pipe(CIPP)1This specification is under the jurisdiction of ASTM Committee D20 onPlastics and is under the direct responsibility of Subcommittee D20.23 onReinforced Plastic Piping Systems and Chemical Equipment.Current edition approved Oct.1,2018.Published October 2018.Originallyapproved in 1995.Last previous edition approved in 2012 as D581304(2012).DOI:10.1520/D5813-04R18.2For referenced ASTM standards,visit the ASTM website,www.astm.org,orcontact ASTM Customer Service at serviceastm.org.For Annual Book of ASTMStandards volume information,refer to the standards Document Summary page onthe ASTM website.3The last approved version of this historical standard is referenced onwww.astm.org.Copyright ASTM International,100 Barr Harbor Drive,PO Box C700,West Conshohocken,PA 19428-2959.United StatesThis international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for theDevelopment of International Standards,Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade(TBT)Committee.1 F2019 Practice for Rehabilitation of Existing Pipelines andConduits by the Pulled in Place Installation of GlassReinforced Plastic(GRP)Cured-in-Place ThermosettingResin Pipe(CIPP)3.Terminology3.1 GeneralDefinitions are in accordance with Termi-nologies D883 and F412.Abbreviations are in accordance withTerminology D1600,unless otherwise indicated.3.2 Definitions of Terms Specific to This Standard:3.2.1 cured-in-place pipe(CIPP)hollow cylinder or shapeconsisting of a fabric with cured(cross-linked)thermoset
