ASTM_D_6356_-_D_6356M_-_98_2018.pdf

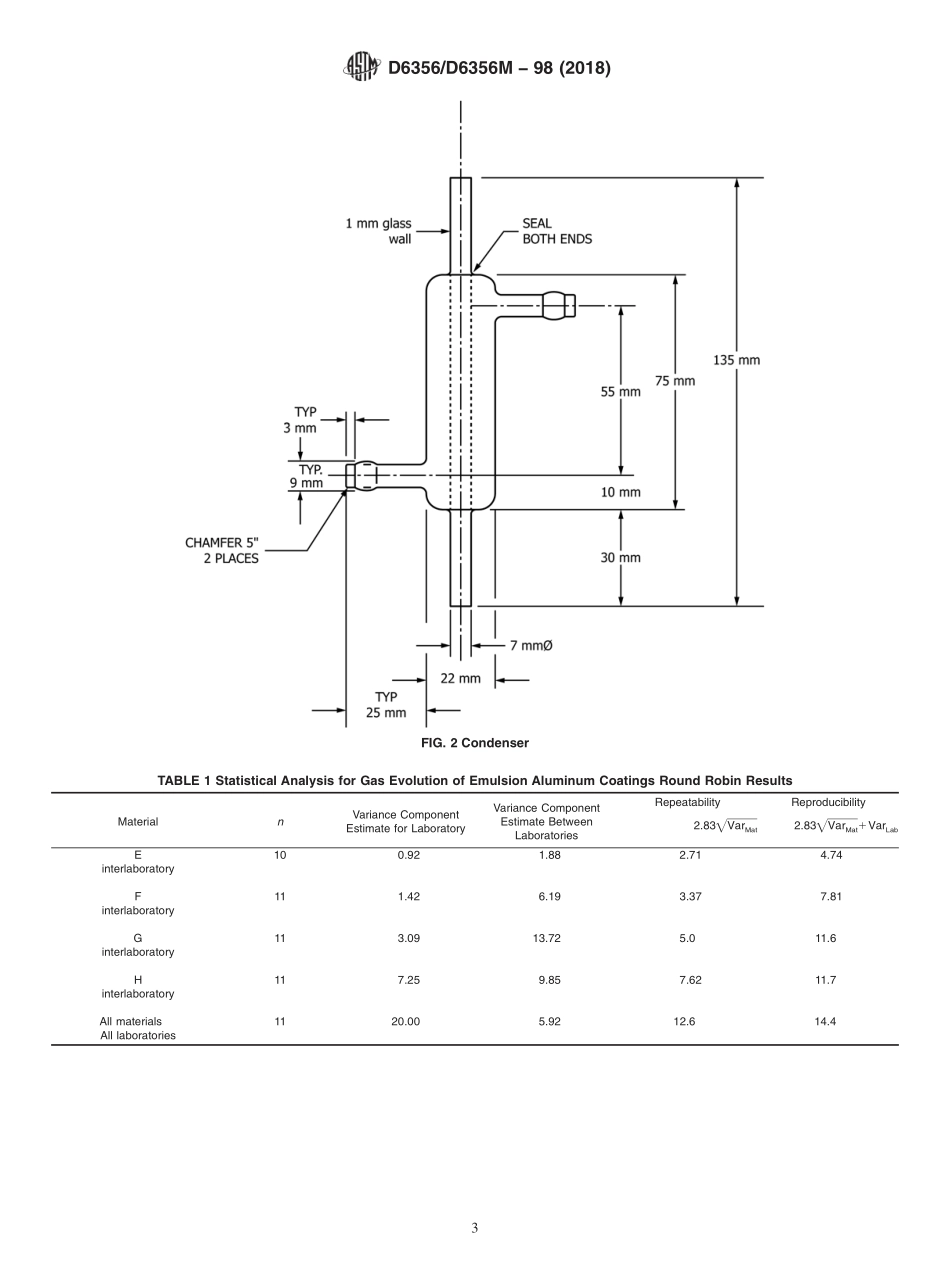

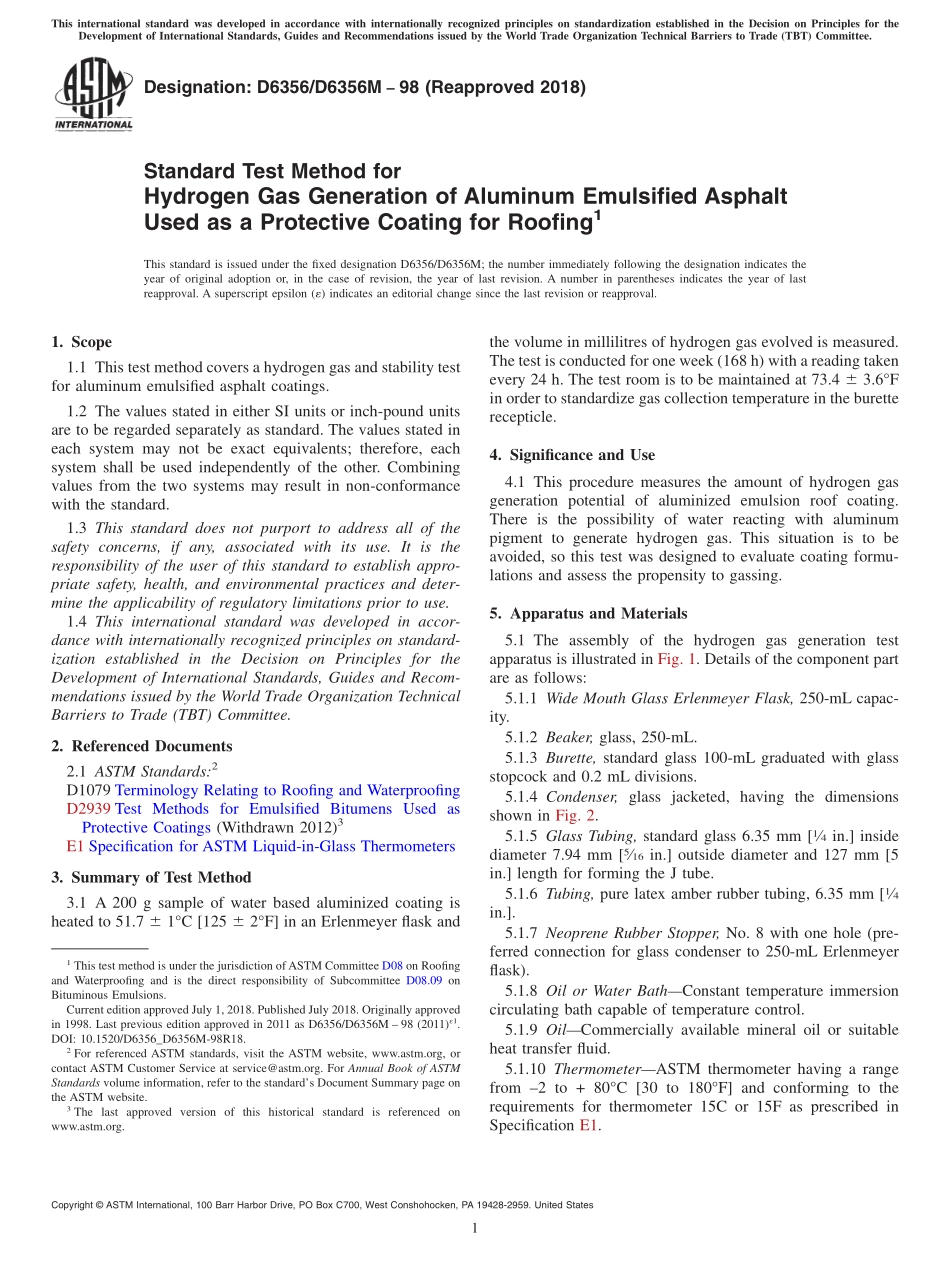

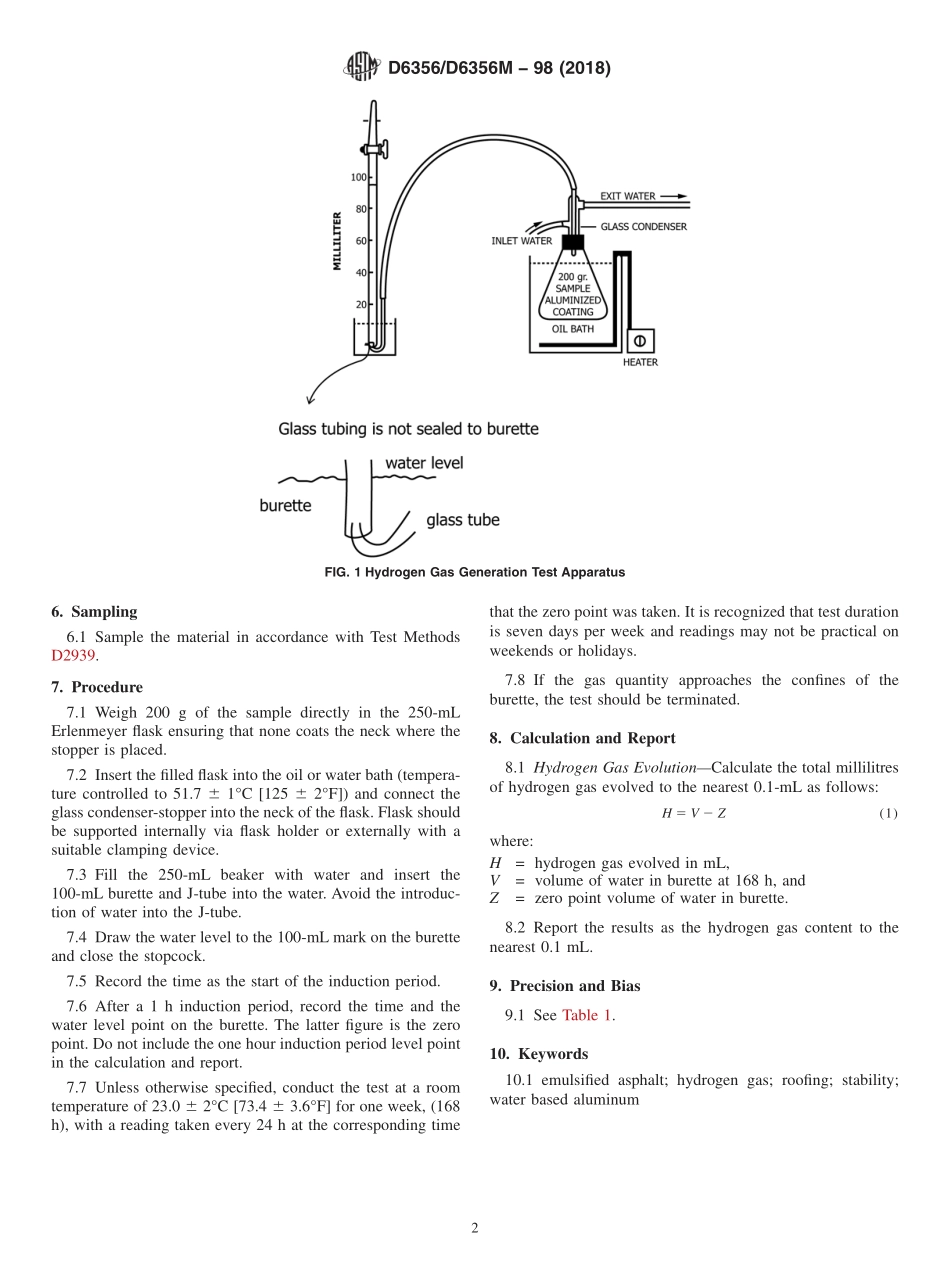

Designation:D6356/D6356M98(Reapproved 2018)Standard Test Method forHydrogen Gas Generation of Aluminum Emulsified AsphaltUsed as a Protective Coating for Roofing1This standard is issued under the fixed designation D6356/D6356M;the number immediately following the designation indicates theyear of original adoption or,in the case of revision,the year of last revision.A number in parentheses indicates the year of lastreapproval.A superscript epsilon()indicates an editorial change since the last revision or reapproval.1.Scope1.1 This test method covers a hydrogen gas and stability testfor aluminum emulsified asphalt coatings.1.2 The values stated in either SI units or inch-pound unitsare to be regarded separately as standard.The values stated ineach system may not be exact equivalents;therefore,eachsystem shall be used independently of the other.Combiningvalues from the two systems may result in non-conformancewith the standard.1.3 This standard does not purport to address all of thesafety concerns,if any,associated with its use.It is theresponsibility of the user of this standard to establish appro-priate safety,health,and environmental practices and deter-mine the applicability of regulatory limitations prior to use.1.4 This international standard was developed in accor-dance with internationally recognized principles on standard-ization established in the Decision on Principles for theDevelopment of International Standards,Guides and Recom-mendations issued by the World Trade Organization TechnicalBarriers to Trade(TBT)Committee.2.Referenced Documents2.1 ASTM Standards:2D1079 Terminology Relating to Roofing and WaterproofingD2939 Test Methods for Emulsified Bitumens Used asProtective Coatings(Withdrawn 2012)3E1 Specification for ASTM Liquid-in-Glass Thermometers3.Summary of Test Method3.1 A 200 g sample of water based aluminized coating isheated to 51.7 6 1C 125 6 2F in an Erlenmeyer flask andthe volume in millilitres of hydrogen gas evolved is measured.The test is conducted for one week(168 h)with a reading takenevery 24 h.The test room is to be maintained at 73.4 6 3.6Fin order to standardize gas collection temperature in the buretterecepticle.4.Significance and Use4.1 This procedure measures the amount of hydrogen gasgeneration potential of aluminized emulsion roof coating.There is the possibility of water reacting with aluminumpigment to generate hydrogen gas.This situation is to beavoided,so this test was designed to evaluate coating formu-lations and assess the propensity to gassing.5.Apparatus and Materials5.1 The assembly of the hydrogen gas generation testapparatus is illustrated in Fig.1.Details of the component partare as follows:5.1.1 Wide Mouth Glass Erlenmeyer Flask,250-mL capac-ity.5.1.2 Beaker,glass,250-mL.5.1.3 Burette,standard glass 100-mL graduated with glassstopcock and 0.2 mL divisions.5.1.4 Condenser,glass jacketed,having the dimensionsshown in Fig.2.5.1.5 Glass Tubing,standard glass 6.35 mm 14in.insidediameter 7.94 mm 516in.outside diameter and 127 mm 5in.length for forming the J tube.5.1.6 Tubing,pure latex amber rubber tubing,6.35 mm 14in.5.1.7 Neoprene Rubber Stopper,No.8 with one hole(pre-ferred connection for glass condenser to 250-mL Erlenmeyerflask).5.1.8 Oil or Water BathConstant temperature immersioncirculating bath capable of temperature control.5.1.9 OilCommercially available mineral oil or suitableheat transfer fluid.5.1.10 ThermometerASTM thermometer having a rangefrom 2 to+80C 30 to 180F and conforming to therequirements for thermometer 15C or 15F as prescribed inSpecification E1.1This test method is under the jurisdiction ofASTM Committee D08 on Roofingand Waterproofing and is the direct responsibility of Subcommittee D08.09 onBituminous Emulsions.Current edition approved July 1,2018.Published July 2018.Originally approvedin 1998.Last previous edition approved in 2011 as D6356/D6356M 98(2011)1.DOI:10.1520/D6356_D6356M-98R18.2For referenced ASTM standards,visit the ASTM website,www.astm.org,orcontact ASTM Customer Service at serviceastm.org.For Annual Book of ASTMStandards volume information,refer to the standards Document Summary page onthe ASTM website.3The last approved version of this historical standard is referenced onwww.astm.org.Copyright ASTM International,100 Barr Harbor Drive,PO Box C700,West Conshohocken,PA 19428-2959.United StatesThis international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for theDevelopment of International Standards,Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade(TBT)Committee.1 6.Sampling6.1 Sample the material in accordance with Test MethodsD2939.7.Procedure7.1 Weigh 200 g of the sample directly in the 250-mLErlenmeyer flask ensuring that none coats the neck where thestopper is placed.7.2 Insert the filled flask into the oil or water bath(tempera-ture controlled to 51.7 6 1C 125 6 2F)and connect
