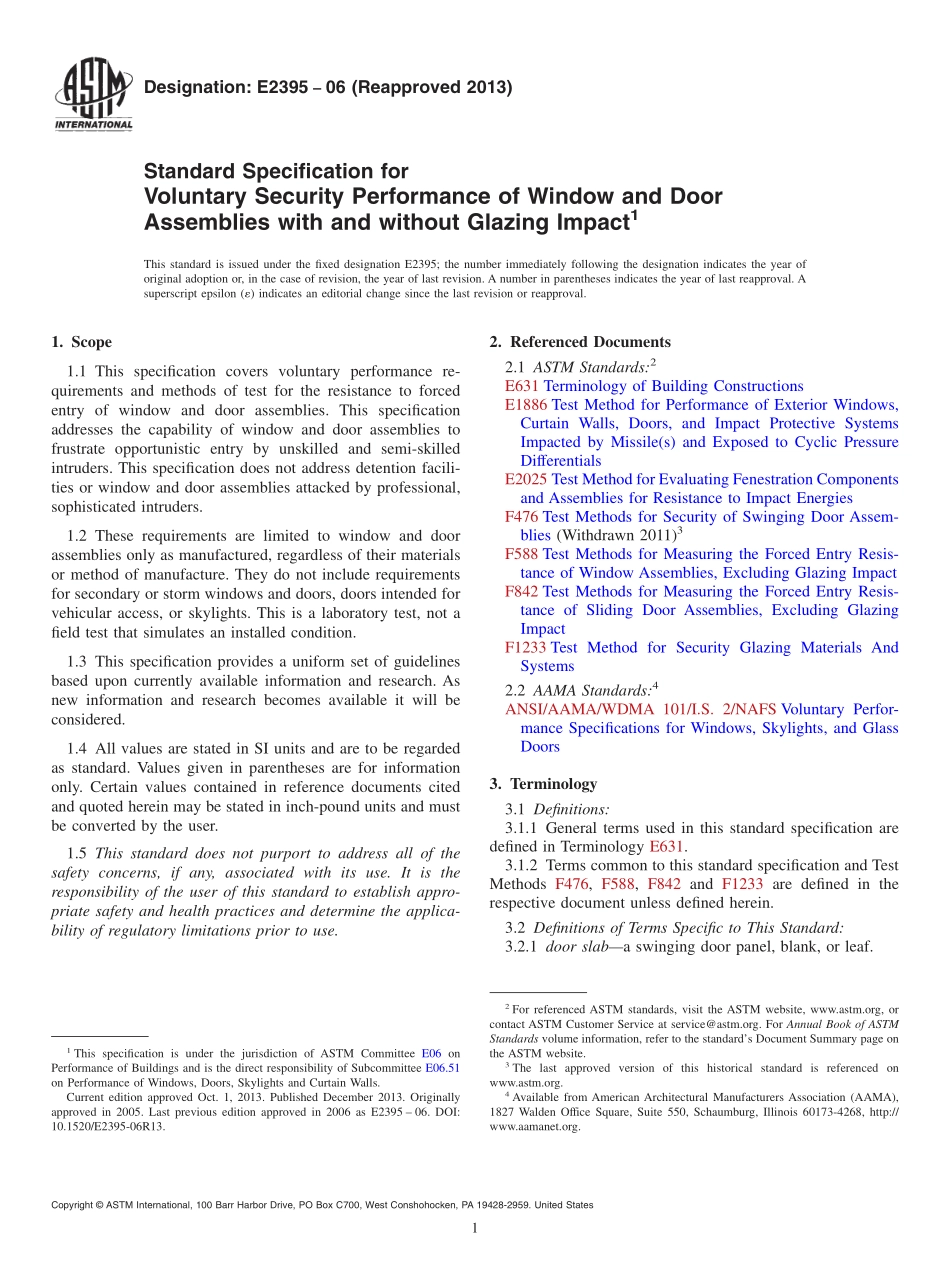

Designation:E239506(Reapproved 2013)Standard Specification forVoluntary Security Performance of Window and DoorAssemblies with and without Glazing Impact1This standard is issued under the fixed designation E2395;the number immediately following the designation indicates the year oforiginal adoption or,in the case of revision,the year of last revision.A number in parentheses indicates the year of last reapproval.Asuperscript epsilon()indicates an editorial change since the last revision or reapproval.1.Scope1.1 This specification covers voluntary performance re-quirements and methods of test for the resistance to forcedentry of window and door assemblies.This specificationaddresses the capability of window and door assemblies tofrustrate opportunistic entry by unskilled and semi-skilledintruders.This specification does not address detention facili-ties or window and door assemblies attacked by professional,sophisticated intruders.1.2 These requirements are limited to window and doorassemblies only as manufactured,regardless of their materialsor method of manufacture.They do not include requirementsfor secondary or storm windows and doors,doors intended forvehicular access,or skylights.This is a laboratory test,not afield test that simulates an installed condition.1.3 This specification provides a uniform set of guidelinesbased upon currently available information and research.Asnew information and research becomes available it will beconsidered.1.4 All values are stated in SI units and are to be regardedas standard.Values given in parentheses are for informationonly.Certain values contained in reference documents citedand quoted herein may be stated in inch-pound units and mustbe converted by the user.1.5 This standard does not purport to address all of thesafety concerns,if any,associated with its use.It is theresponsibility of the user of this standard to establish appro-priate safety and health practices and determine the applica-bility of regulatory limitations prior to use.2.Referenced Documents2.1 ASTM Standards:2E631 Terminology of Building ConstructionsE1886 Test Method for Performance of Exterior Windows,Curtain Walls,Doors,and Impact Protective SystemsImpacted by Missile(s)and Exposed to Cyclic PressureDifferentialsE2025 Test Method for Evaluating Fenestration Componentsand Assemblies for Resistance to Impact EnergiesF476 Test Methods for Security of Swinging Door Assem-blies(Withdrawn 2011)3F588 Test Methods for Measuring the Forced Entry Resis-tance of Window Assemblies,Excluding Glazing ImpactF842 Test Methods for Measuring the Forced Entry Resis-tance of Sliding Door Assemblies,Excluding GlazingImpactF1233 Test Method for Security Glazing Materials AndSystems2.2 AAMA Standards:4ANSI/AAMA/WDMA 101/I.S.2/NAFS Voluntary Perfor-mance Specifications for Windows,Skylights,and GlassDoors3.Terminology3.1 Definitions:3.1.1 General terms used in this standard specification aredefined in Terminology E631.3.1.2 Terms common to this standard specification and TestMethods F476,F588,F842 and F1233 are defined in therespective document unless defined herein.3.2 Definitions of Terms Specific to This Standard:3.2.1 door slaba swinging door panel,blank,or leaf.1This specification is under the jurisdiction of ASTM Committee E06 onPerformance of Buildings and is the direct responsibility of Subcommittee E06.51on Performance of Windows,Doors,Skylights and Curtain Walls.Current edition approved Oct.1,2013.Published December 2013.Originallyapproved in 2005.Last previous edition approved in 2006 as E2395 06.DOI:10.1520/E2395-06R13.2For referenced ASTM standards,visit the ASTM website,www.astm.org,orcontact ASTM Customer Service at serviceastm.org.For Annual Book of ASTMStandards volume information,refer to the standards Document Summary page onthe ASTM website.3The last approved version of this historical standard is referenced onwww.astm.org.4Available from American Architectural Manufacturers Association(AAMA),1827 Walden Office Square,Suite 550,Schaumburg,Illinois 60173-4268,http:/www.aamanet.org.Copyright ASTM International,100 Barr Harbor Drive,PO Box C700,West Conshohocken,PA 19428-2959.United States1 3.2.2 interlayera layer of material acting as an adhesivebetween plies of glazing,which adds additional performance tothe finished product.For example:impact resistance,solarcontrol,and acoustical insulation.3.2.3 litea term for a single pane(or piece)of glass.4.Performance Requirements4.1 Products shall be tested to the following levels asdescribed in Table 1.5.Test Specimens5.1 Window and Door Assemblies:5.1.1 One test specimen for each product design seekingqualification shall be submitted.5.1.2 Window and door assemblies tested for conformanceto this specification shall be complete specimens representativeof those produced by the manufacturer or fabricator.(ANSI/AAMA/WDMA 101/I.S.2/NAFS contains reference sizeswhich may prove useful in coordinating with window and doorperformance requirements not included in thi
