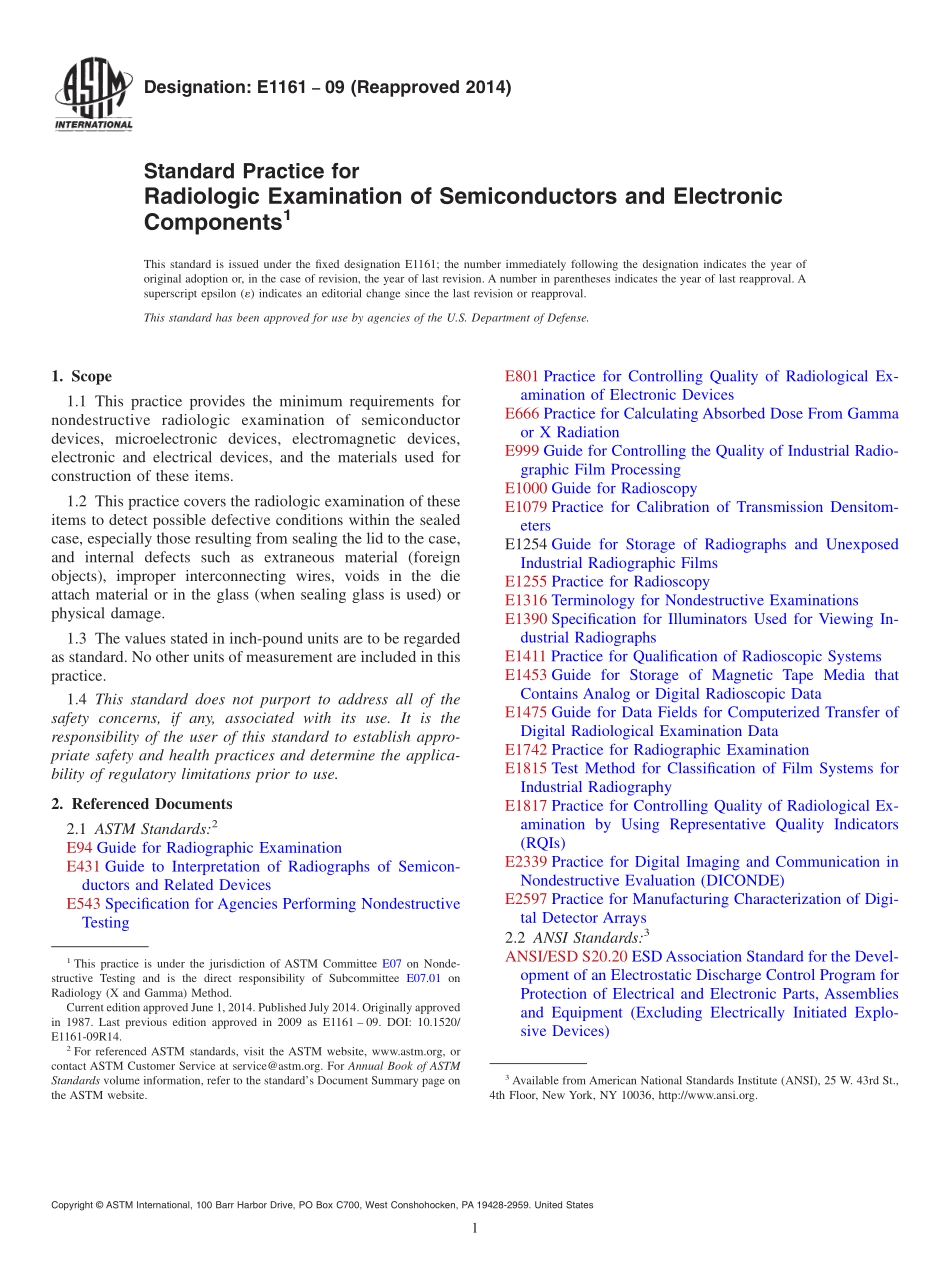

Designation:E116109(Reapproved 2014)Standard Practice forRadiologic Examination of Semiconductors and ElectronicComponents1This standard is issued under the fixed designation E1161;the number immediately following the designation indicates the year oforiginal adoption or,in the case of revision,the year of last revision.A number in parentheses indicates the year of last reapproval.Asuperscript epsilon()indicates an editorial change since the last revision or reapproval.This standard has been approved for use by agencies of the U.S.Department of Defense.1.Scope1.1 This practice provides the minimum requirements fornondestructive radiologic examination of semiconductordevices,microelectronic devices,electromagnetic devices,electronic and electrical devices,and the materials used forconstruction of these items.1.2 This practice covers the radiologic examination of theseitems to detect possible defective conditions within the sealedcase,especially those resulting from sealing the lid to the case,and internal defects such as extraneous material(foreignobjects),improper interconnecting wires,voids in the dieattach material or in the glass(when sealing glass is used)orphysical damage.1.3 The values stated in inch-pound units are to be regardedas standard.No other units of measurement are included in thispractice.1.4 This standard does not purport to address all of thesafety concerns,if any,associated with its use.It is theresponsibility of the user of this standard to establish appro-priate safety and health practices and determine the applica-bility of regulatory limitations prior to use.2.Referenced Documents2.1 ASTM Standards:2E94 Guide for Radiographic ExaminationE431 Guide to Interpretation of Radiographs of Semicon-ductors and Related DevicesE543 Specification for Agencies Performing NondestructiveTestingE801 Practice for Controlling Quality of Radiological Ex-amination of Electronic DevicesE666 Practice for Calculating Absorbed Dose From Gammaor X RadiationE999 Guide for Controlling the Quality of Industrial Radio-graphic Film ProcessingE1000 Guide for RadioscopyE1079 Practice for Calibration of Transmission Densitom-etersE1254 Guide for Storage of Radiographs and UnexposedIndustrial Radiographic FilmsE1255 Practice for RadioscopyE1316 Terminology for Nondestructive ExaminationsE1390 Specification for Illuminators Used for Viewing In-dustrial RadiographsE1411 Practice for Qualification of Radioscopic SystemsE1453 Guide for Storage of Magnetic Tape Media thatContains Analog or Digital Radioscopic DataE1475 Guide for Data Fields for Computerized Transfer ofDigital Radiological Examination DataE1742 Practice for Radiographic ExaminationE1815 Test Method for Classification of Film Systems forIndustrial RadiographyE1817 Practice for Controlling Quality of Radiological Ex-amination by Using Representative Quality Indicators(RQIs)E2339 Practice for Digital Imaging and Communication inNondestructive Evaluation(DICONDE)E2597 Practice for Manufacturing Characterization of Digi-tal Detector Arrays2.2 ANSI Standards:3ANSI/ESD S20.20 ESDAssociation Standard for the Devel-opment of an Electrostatic Discharge Control Program forProtection of Electrical and Electronic Parts,Assembliesand Equipment(Excluding Electrically Initiated Explo-sive Devices)1This practice is under the jurisdiction of ASTM Committee E07 on Nonde-structive Testing and is the direct responsibility of Subcommittee E07.01 onRadiology(X and Gamma)Method.Current edition approved June 1,2014.Published July 2014.Originally approvedin 1987.Last previous edition approved in 2009 as E1161 09.DOI:10.1520/E1161-09R14.2For referenced ASTM standards,visit the ASTM website,www.astm.org,orcontact ASTM Customer Service at serviceastm.org.For Annual Book of ASTMStandards volume information,refer to the standards Document Summary page onthe ASTM website.3Available from American National Standards Institute(ANSI),25 W.43rd St.,4th Floor,New York,NY 10036,http:/www.ansi.org.Copyright ASTM International,100 Barr Harbor Drive,PO Box C700,West Conshohocken,PA 19428-2959.United States1 2.3 ASNT Standard:4ANSI/ASNT CP-189 Standard for Qualification and Certifi-cation of Nondestructive Testing PersonnelSNT-TC-1A Personnel Qualification and Certification2.4 AIA Documents:5NAS-410 Certification and Qualification of NondestructiveTest Personnel2.5 Department of Defense(DOD)Documents:6MIL-PRF-28861 PerformanceSpecificationGeneralSpecification for Filters,Capacitors,Radio Frequency/Electromagnetic Interference SuppressionMIL-STD-202Test Method Standard Electronic and Elec-trical Component PartsMIL-STD-202,Method 209 Radiographic InspectionMIL-STD-750Test Method Standard Test Methods forSemiconductor DevicesMIL-STD-750,Method 2076 RadiographyMIL-STD-883 Test Method Standard MicrocircuitsMIL-STD-883,Method 2012 RadiographyMIL-STD-981Design,Manufacturing and Quality Stan-dards for Custom Electromagnetic Devices for SpaceApplications2.6 Federal Standard:6FED-STD-595 Color(Requirements
