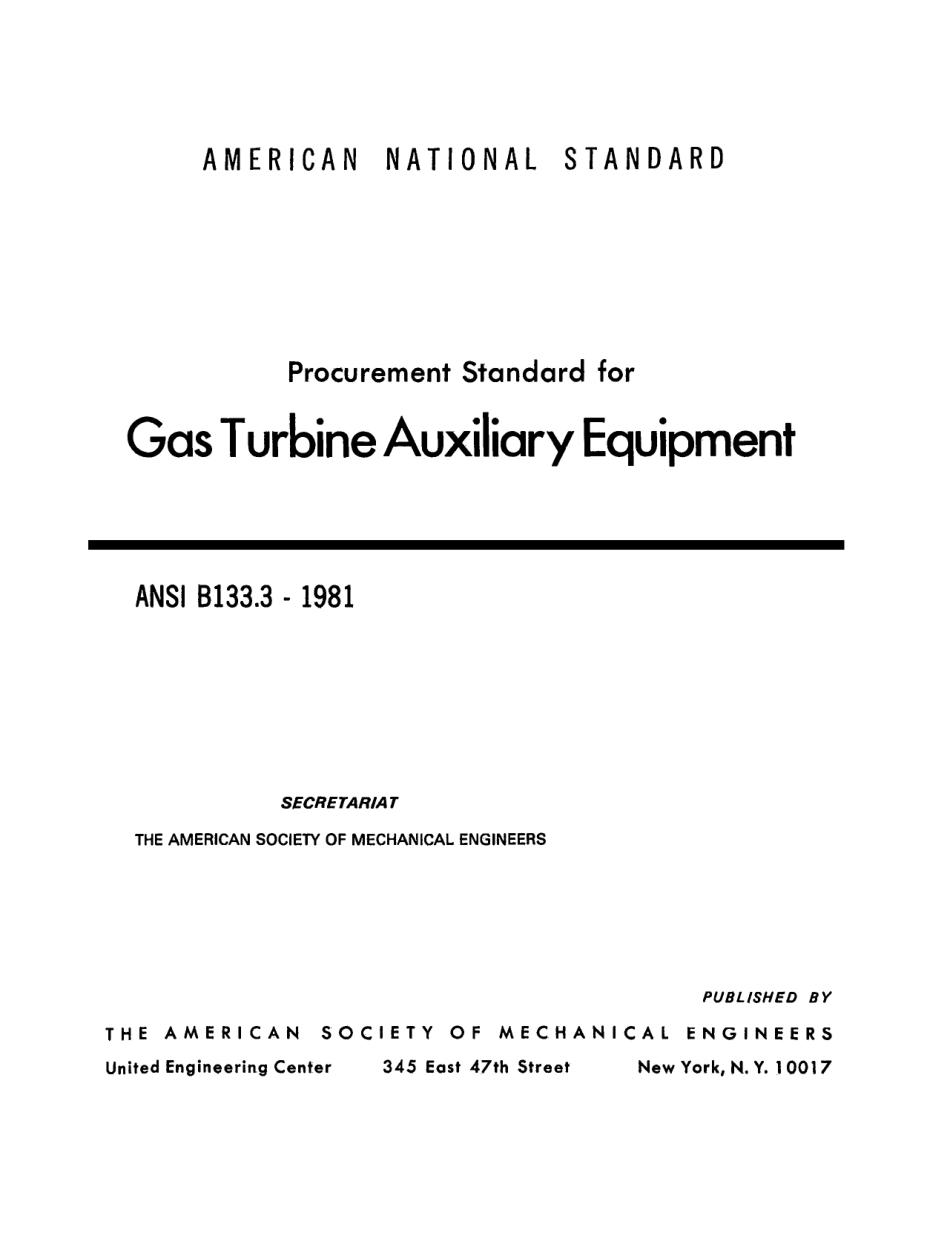

AMERICAN NATIONAL STANDARD Procurement Standard for Gas Turbine Auxiliary Equipment ANSI 8133.3-1981 SECRETARIAT THE AMERICAN SOCIETY OF MECHANICAL ENGINEERS PUBLISHED BY THE AMERICAN SOCIETY OF MECHANICAL ENGINEERS United Engineering Center 345 East 47th Street New York,N.Y.10017 Date of Issuance:June 30,1982 This code or standard was developed.under procedures accredited as meeting the criteria for American National Standards.The Consensus Committee that approved the coda or standard was balanced to assure that individuals from competent and concerned interests have had an opportunity to participate.The proposed code or standard was made available for public review and comment which provides en opportunity for additional public Input from Industry,academia,regulatory agen cies,and the public-at-large.ASME does not approve,rate,or endorse any Item,construction,proprietary device,or activity,ASME does not take any position with respect to the validity of any patent rights asserted In connection with any Items mentioned In this document,and does not undertake to Insure anyone utilizing a standard against liability for Infringement of any applicable Letters Patent,nor assume any such liability.Users of a code or standard are expressl.y advised that determination of the validity of any such patent rights,and the risk of infringement of such rights,is entirely their own responsibility.Participation by federal agency representatlve(s)or person(s)affiliated with Industry is not to be interpreted as government or industry endorsement of this code or standard.No part of this document may be reproduced in any form,In an electronic retrieval system or otherwise,without the prior written permission of the publisher.Copyright 1982 by THE AMERICAN SOCIETY OF MECHANICAL ENGINEERS All Rights Reserved Printed in U.S.A.FOREWORD The purpose of the B133 standards is to provide criteria for the preparation of gas turbine procurement specifications.These standards will also be useful for response to such specifications.The Bl33 standards provide essential information for the procurement of gas turbine power plants.They apply to open cycle,closed cycle,and semi-closed cycle gas turbines with conventional combustion systems for industrial,marine,and electric power applications.Auxiliaries needed for proper operation are covered.Not included are gas turbines applied to earth moving machines,agricultural and industrial-type tractors,automobiles,trucks1 buses and aeropropulsion units.For gas turbines using unconventional or special heat sources(such as:chemical processes,nuclear reactors,or furnaces for supercharged boilers),these standards may be used as a basis;but appropriate modifications may be necessary.The intent of the Bl33 standards is to cover the nonnal requirements of the majority of applications,recognizing that economic trade-offs and reliability implications may differ in some applications.The user may desire to add,delete,or modify the requirements in this Standard to meet his specific needs,and he has the option of doing so in his own procurement specification.The B133.3 standard presents and describes features of several auxiliary systems of a gas turbine power plant.The user should include a consideration of these when developing his specification.The intent is to assist in the selection of a gas turbine and its systems that will provide satisfactory performance,avail-abllity,and reliability.Suggestions for improvement of this Standard will be welcome.They should be sent to the American Society of Mechanical Engineers,United Engineering Center,345 East 47th Street,New York,New York,10017.American National Standard B133.3 was approved by American National Standards Committee B133.Final approval by the American National Standards Institute was granted on April 3,1981.iii AMERICAN NATIONAL STANDARDS COMMITTEE 8133 PROCUREMENT STANDARDS FOR GAS TURBINES(The following is the roster of the committee at the time of approval of this Standard)Officers A.A.Hafer,Chairman E.A.Borgmann.Vice Chairman W,R.Disak;Secretary STANDARDS COMMITTEE ACOUSTICAL SOCffiTY OF AMERICA R.M.Hoover,Hoover Keith Associates,Incorporated,Houston,Texas R.R.Audette Alternate,Westinghouse Electric Corporation,Philadelphia,Pennsylvania AIRCRAFI POROUS MEDIA,INCORPORATED F.E.Bishop,Aircraft Porous Media,Incorporated,Glen Cove,New York AMERICAN SOCffiTY OF MECHANICAL ENGINEERS,THE A.A.Hafer,General Electric Company,Schenectady,New York V.Maddox,Alternate,Aramaco Services Company,Houston,Texas BATIELLE MEMORIAL INSTITUTE H.R.Hazard,Battelle Memorial Institute,Columbus,Ohio CINCINNATI GAS AND ELECTRIC COMPANY E.A.Borgmann,Cincinnati Gas and Electric Company,Cincinnati,Ohio DOW CHEMICAL OF CANADA,LIMITED J.P.Zanyk,Dow Chemical of Canada,Limited,Samia,Ontario,Canada EDISON ELECTRIC INSTITUTE J.E.Barry,Missouri Public Service Company,Kansas City,Missouri EL PASO NATURAL GAS COMPANY W.A.Johnson,El Paso Natural Gas Company,El Paso,Texas GENERAL ELECTRIC COMPAN
