pec_2E 1973 _scan

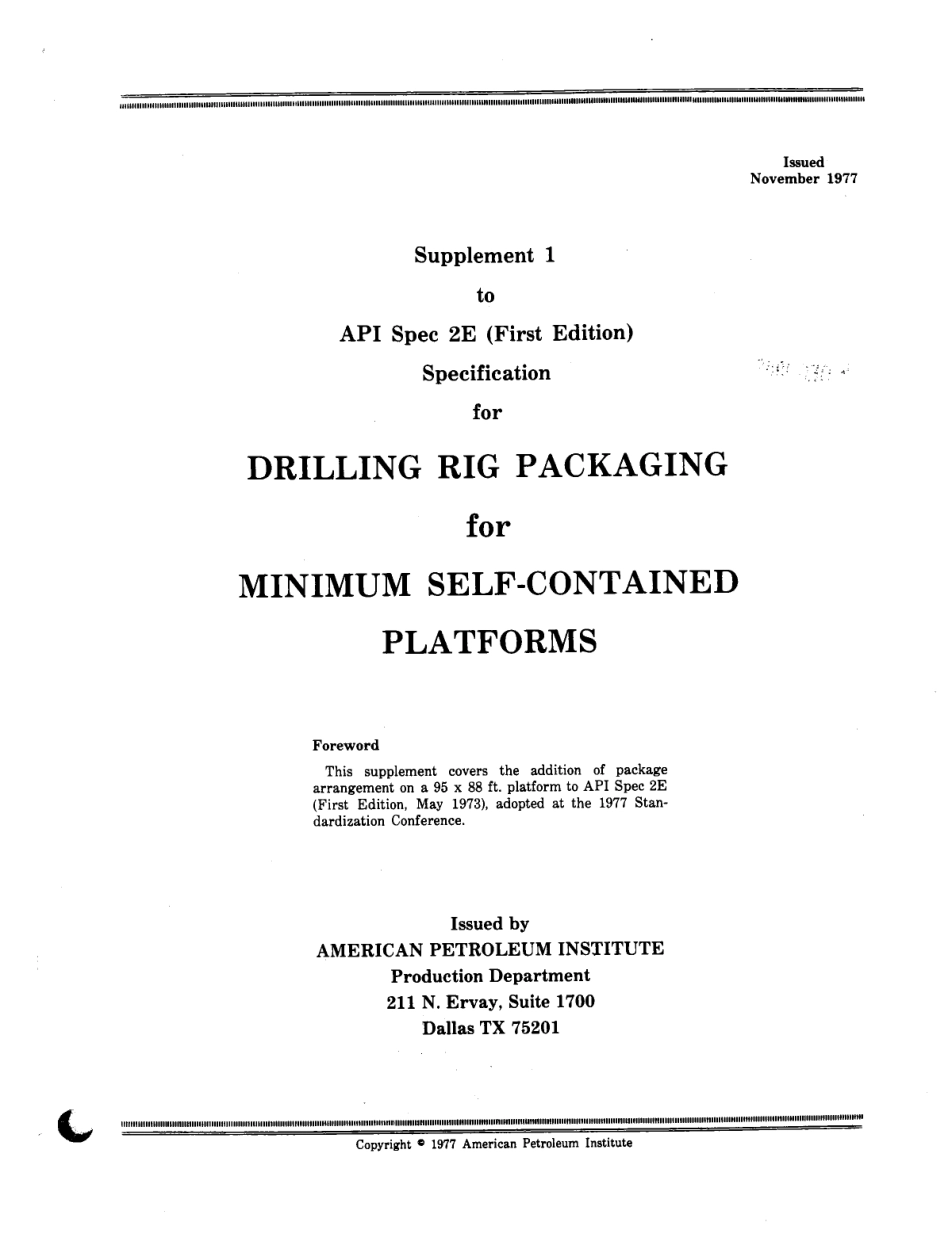

IssuedNovember 1977Supplement 1toAPI Spec 2E(First Edition)Specification0:forDRILLING RIG PACKAGINGforMINIMUM SELF-CONTAINEDPLATFORMSForewordThis supplement covers the addition of packagearrangement on a 95 x 88 ft.platform to API Spec 2E(First Edition,May 1973),adopted at the 1977 Stan-dardization Conference.Issued byAMERICAN PETROLEUM INSTITUTEProduction Department211 N.Ervay,Suite 1700Dallas TX 75201Copyright1977 American Petroleum Institutee1194534API Spec 2EFirst EditionMay 1973APISPECIFICATIONforDRILLING RIG PACKAGINGforMINIMUM SELF-CONTAINEDPLATFORMSOFFICIAL PUBLICATIONREG.U.S.PATENT OFFICEAMERICAN PETROLEUM INSTITUTEUP TO D.TEWashington,D.C.AS AT.0GNERITLIBRARYPTEIssued by13MAR1981AMERICAN PETROLEUM INSTITUTEProduction DepartmentRECEIVED211 N.Ervay,Suite 1700Dallas TX 75201Copyright1973 American Petroleum InstituteUsers of this publication should become completely familiar with its scope and content,including any provisions it may have regarding marking of manufactured products.Thisdocument is intended to supplement rather than replace individual engineering judgment.Spee 2E:Drilling Rig Packaging69Major equipment used to establish di-mensions*551012-2.200 HP DC electric power units2-500 KW diesel power AC electricgenerator unitsEstimated lift weight of package=300 tonsA C GEN.In each arrangement shown in Fig.5.1GENERATORthru 3.7 the two 1.230 cu ft P-tanks forcement are located on the engine genera-c5红tor packages.Necessary support membersmust be included in the design of thisD CGENERATORA C GEN.module to carry the additional load.*Note:The size of equipment displayed isto provide a frame of reference forequipment that will fit into thespace available.It does not con-PLANstitute a recommended size fordrilling machinery.000D C PANELSSIDE ELEVATIONEND ELEVATIONFIG 2.1ENGINE GENERATOR PACKAGE75Major equipment used to estab-4552lish dimensions*2-1.000 cu ft P-tanks for drybariteEstimated lift weight of package175 tons*Note:The size of equipment dis-played is to provide a frameof reference for equipmentthat will fit into the space3L7available.It does not con-stitute a recommended sizePLANfor drilling machinery.Removable CantileverCantilever For OffloadingExtenstonsMud PalletsSIDE ELEVATIONEND ELEVATIONFIG 2.2DRY STORAGE PACKAGEAmerican Petroleum Institute691Major equipment used to establish di.5513mensions*2-1,300 HP triplex mud pumps pow-ered by electric motors3-60 HP mud mix and charge pumps000Estimated lift weight of package=350tons(includes crane weights)Cranes shall comply with API Spec 2C.*Note:The size of equipment displayedis to provide a frame of referencefor equipment that will fit into thespace available.It does not consti.PLANtute a recommended size for drillingmachinery.5518SIDE ELEVATIONEND ELEVATIONFIG 2.3PUMP PACKAGE551Volume:2-300 bbl active mud tanks1-300 bbl reserve tanksMIXERS-Estimated lift weight=100 tonseSHALEMud processing and lab equipment mounted onSHAKERDEGASSERtop of tanks.Tanks may be compartmented to accommodatePLANdifferent volumes needed for flexibility.RESERVE MUDA C T I V EMU DSIDE ELEVATIONEND ELEVATIONFIG 2.4ACTIVE MUD SYSTEM PACKAGE
